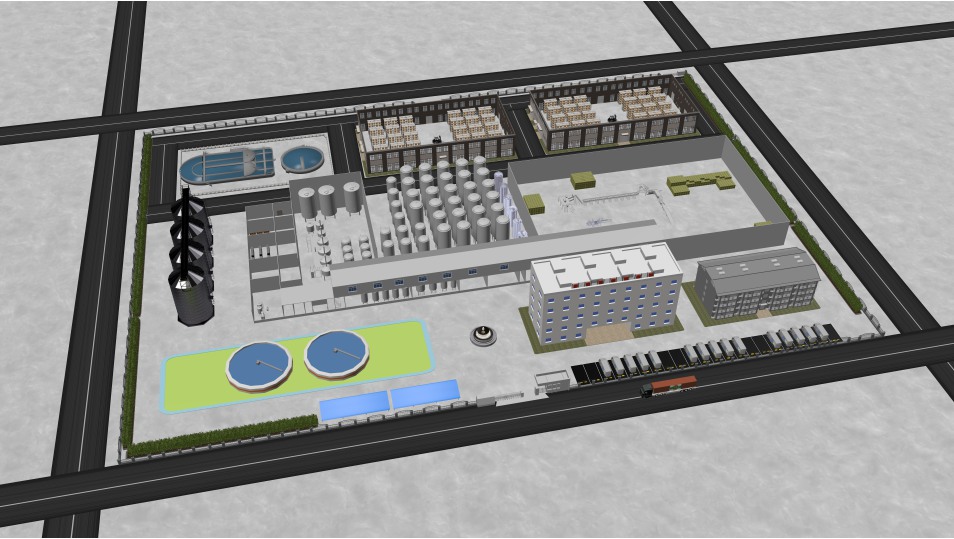

Cooling System Suggested for Large Commercial Breweries

Just like the essential role of fermentation tanks in a brewery, the glycol cooling system is also necessary for maintaining precise temperature control during various stages of beer production, especially fermentation and conditioning as well as the wort cooling.
Her are main components suggested in cooling system for large size of commercial breweries:(Take 5000l brewery system as example)
1. Glycol Water Tank
To provide glycol water supply for Fermenters, Brite Beer Tank, Cold Liquor Tank or wort cooling, the size of Glycol Water Tank suggested for 5000l brewery system is usually 5000L. The tank is designed with 5000l working capacity and with minimum of 15% headspace. Empty level switch provided as optional.




Specifications
Tank Capacity	5000L (15% Headspace)
Function	Glycol Water Supply
Dimension	1960*2995mm
Cooling Jacket	No
Insulation	TH 80mm Low Thermal Conductivity PU
Manhole	Stainless Steel Manhole Top Mounted
Main Components	Sanitary Thermowell, Breath Port, Glycol In and Outlet, Drainage Port, Discharge Arm



2. Cold Liquor Tank
To provide enough and timely cooling capacities for wort cooling, especially with multiple batches of continuous productions, 100hl cold liquor tank is suggested in the 5000l brewery system. Cooling jacket and 80mm insulation equipped for bottom cone, down and upper part of side wall. Empty level switch and pressure transmitter provided for options.




Specifications
Tank Capacity	10000L (+15% Headspace)
Function	Cold Water Supply
Dimension	2200*4820mm
Cooling Jacket	Dimple Jacket on Side Wall and Bottom
Insulation	TH 80mm Low Thermal Conductivity PU
Bottom	Conical
Manhole	Stainless Steel Manhole Top Mounted
Main Components	360°Rotary CIP Spraying Ball, Sanitary Thermowell, Floating Ball Low Level Sensor, Breath Port, CIP Inlet, Overflow Port, Drainage Port, Discharge Arm

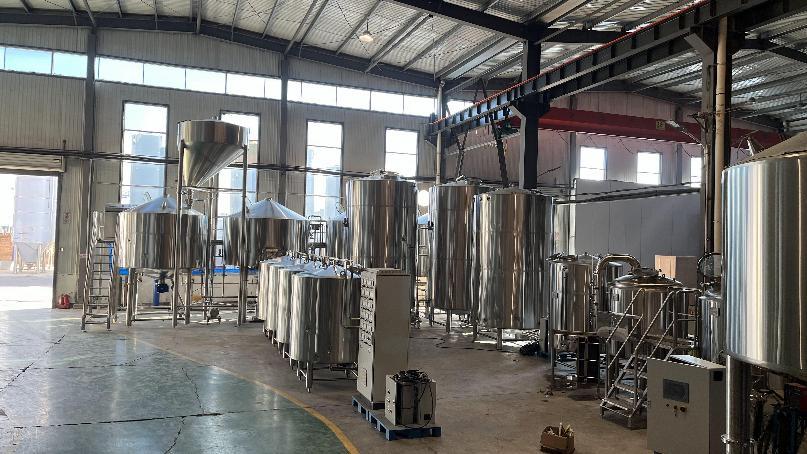

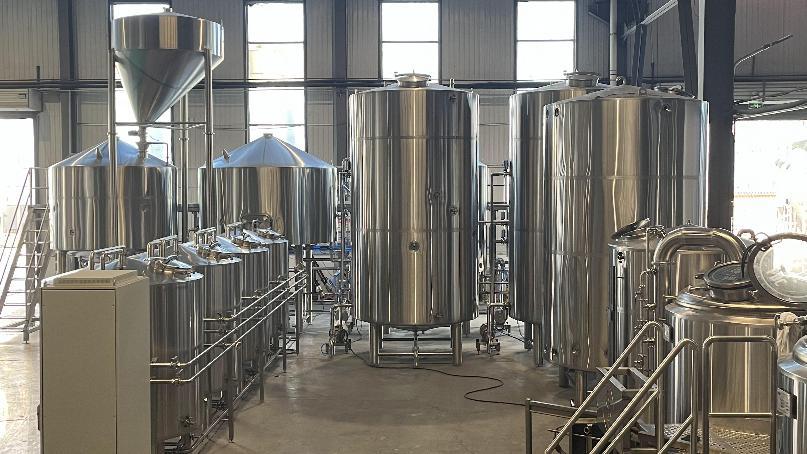

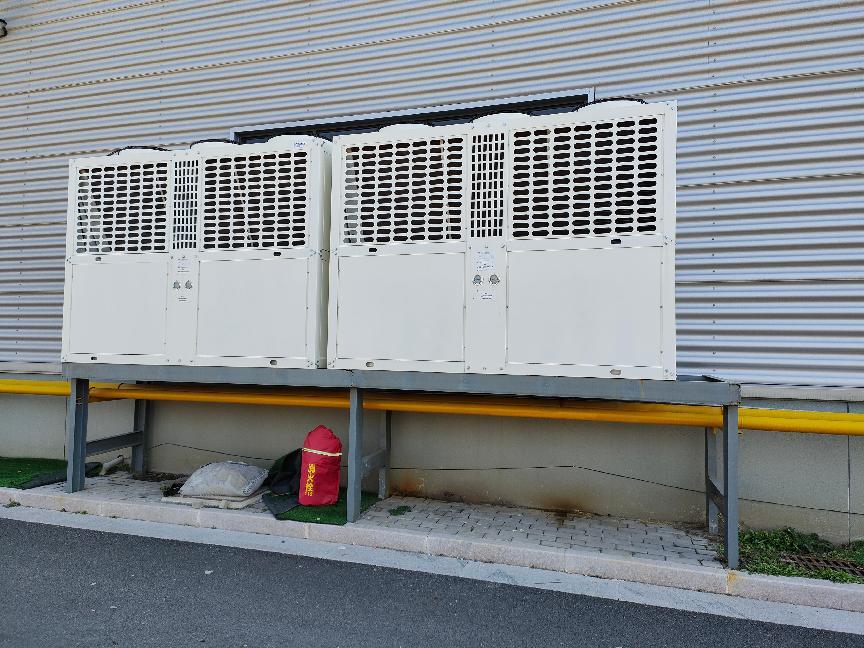

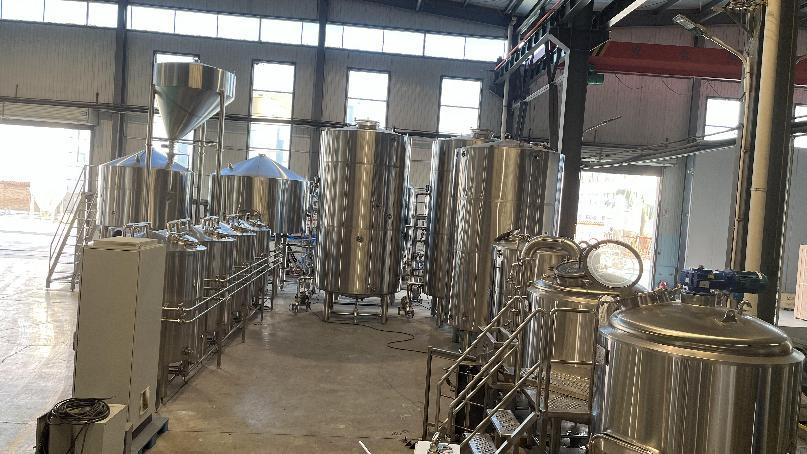

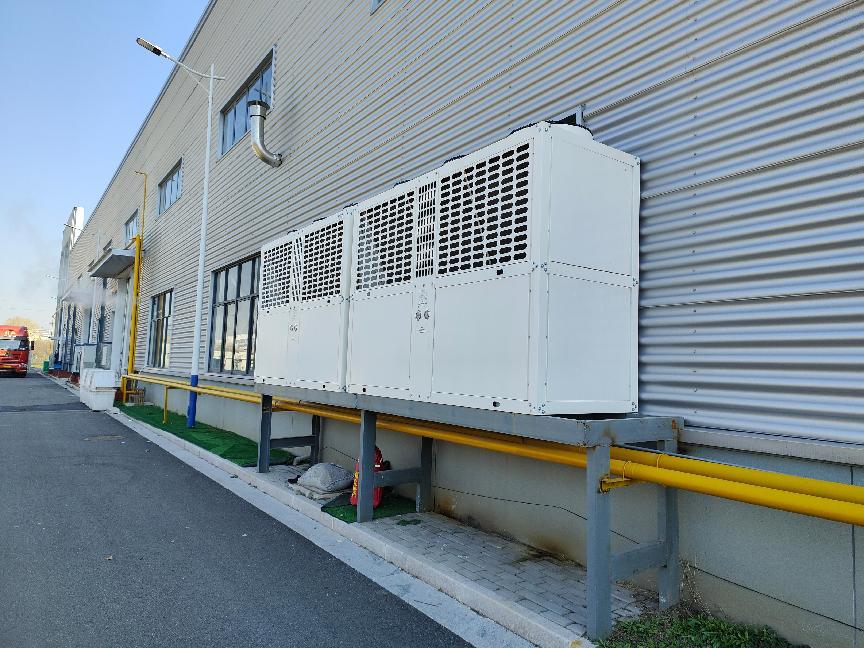

3. 20HP Chiller




Specifications
Function	Glycol Water Chilling
Type	Air Cooled Glycol Water Chiller
Horsepower	20 HP
Cooling Capacity	30000 W/25800 Kcal/Hr
Installed Power	19.8 KW
Size	2080*1050*1680mm
Weight	660KG


4. Glycol Water Pipelines
Function: Glycol Water Circulation
Mainly Including:
1) 1pc Glycol Water Pump 2.4kw 12M3/HR H=39m;
2) 1pc Hot Water Pump: 15M3/Hr, Sanitary 304SS, delivery 24m
3) 304SS Solenoid valve DC24V for each tank (Angle Seat Valve for special request)
4) PPR pipes and fittings between GWT and GW pump
5) PPR pipes and fittings from GW Pump to tank inlet components
6) PPR pipes and fittings from tank outlet components to GWT
7) PPR pipes and fittings between chiller and GWT
8) PPR pipes and fittings for tank inlet components including solenoid valves
9) PPR pipes and fittings for tank outlet components
10) Rubber foam Insulation for supply and return loops
11) Site installation instruction service included
12) All pipe and fittings calculated by layout with 10% allowance
13) 6 Temperature controlling points as standard
