Hello everyone! This is Sharon here from Tiantai Beer Equipment Co., Ltd.
Welcome to visit our brewery equipment website!

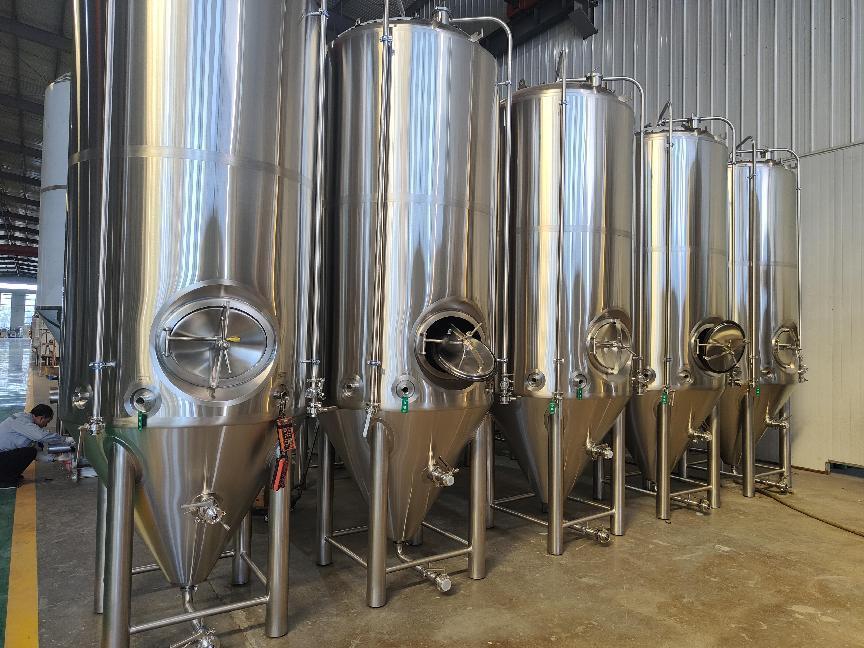

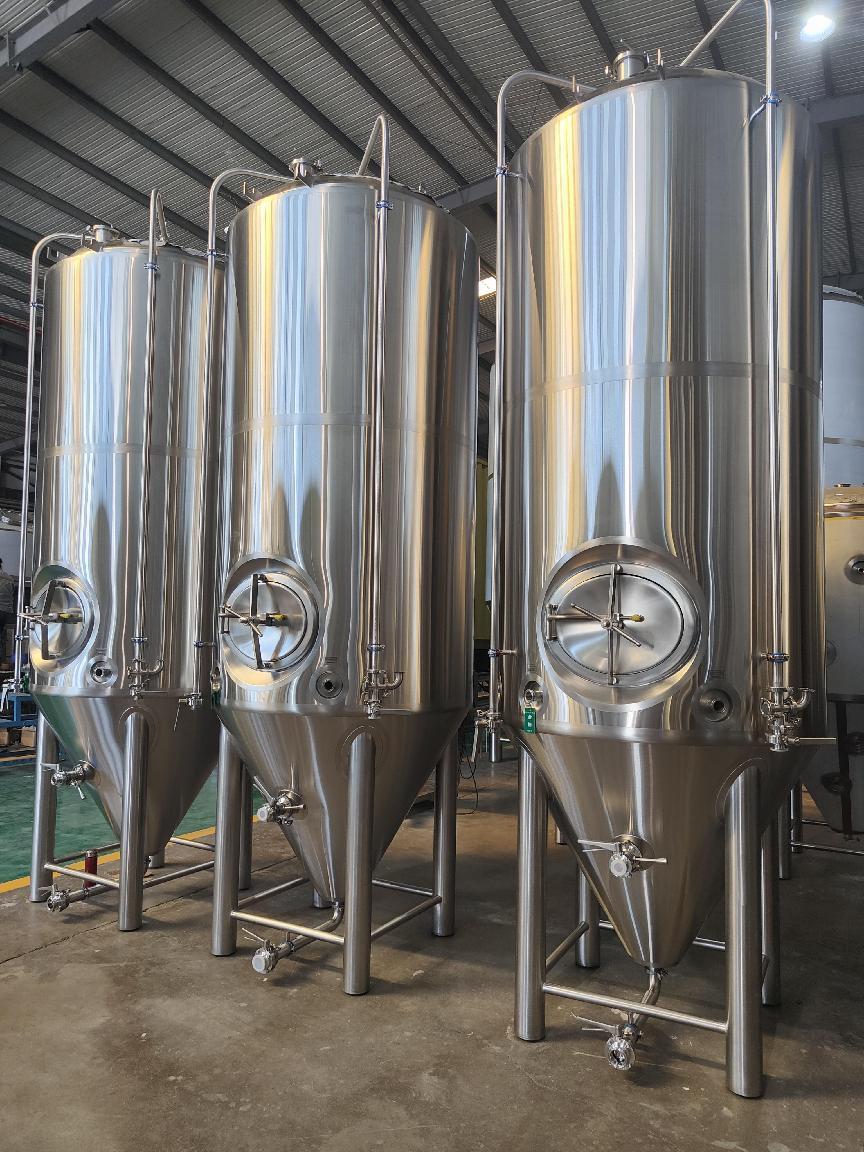

Here we’re delighted to introduce you our newly finished 2000L fermentation tanks that ready to be shipped to our customers in Latvia. If you are looking for some similar size of tanks for your business, feel free to contact us for more interested information, Cheers!

As with other parts of the brewing process, fermentation is a process that requires precision. This especially true of temperature control. If the temperature is not kept at the perfect levels, you risk the yeast not fermenting at a proper rate. Even during the maturation process, improper temperature control can impact the beer’s carbonation and clarity. That’s why our jacketed tanks are well insulated for maximum temperature control.


Technical Information:
Tank Capacity: 2000L (+25% Headspace minimum)
Dimension: Φ1560x3130mm (Customizable)
Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional)
Exterior Finish: Oil brushed finish(2B, 8K Mirror finish optional)
Insulation: TH=80mm with low thermal conductivity PU
Cooling Jacket: Dimple plate on bottom and side wall, welded without over burning

CIP arm with four-way connection and butterfly valve
CO2 blow-off arm with butterfly valve (Removable)
Sanitary welded thermowell for high accuracy temperature sensor
Dry hopping port 4'' with solid end cap (Hops pitching tank for optional)

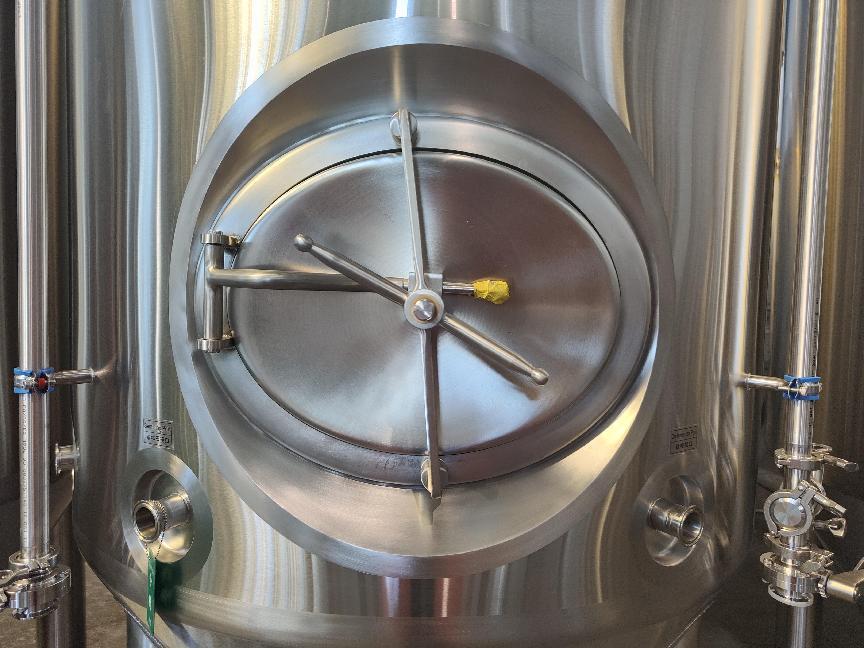

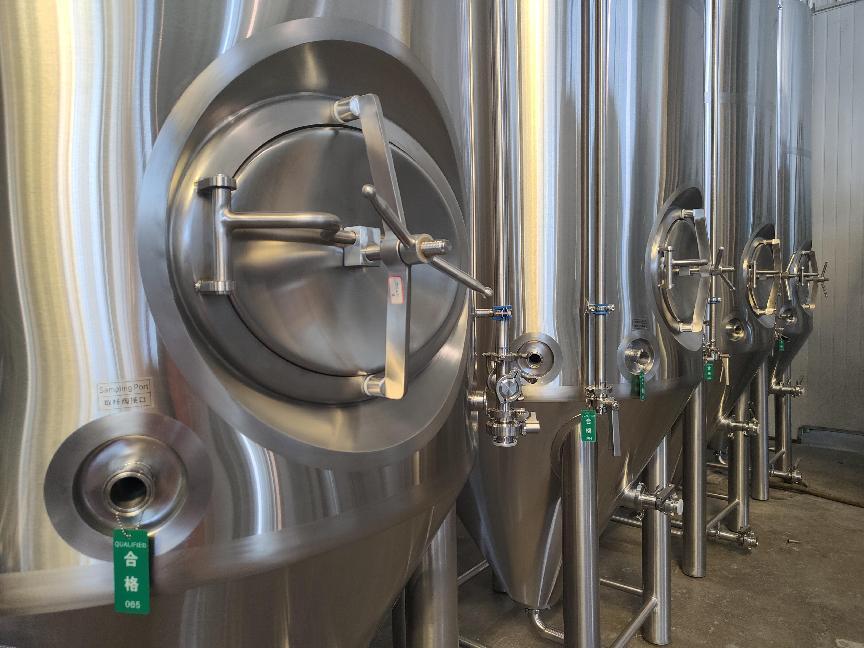

Sanitary side mounted oval manhole with pressured door (Top mounted available)

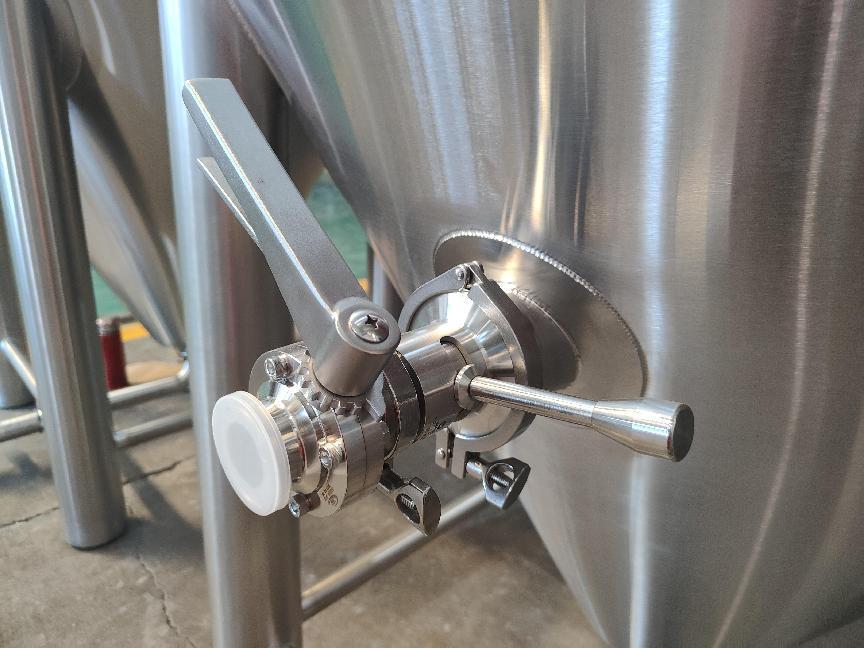

Discharge arm with butterfly valve, Removable and easy to clean
Glycol water in/out port on side wall, Thick wall pipe thread (Top or bottom design available)
Glycol water in/out port on cone, Thick wall pipe thread (Top or bottom design available)
Complete valves, fittings and all parts, Tri clamp/DIN Union available
Pre&After Sales Services:
Turnkey services provided for all size of brewing project from designing, manufacturing to delivering, installation and maintenance.
Other configurations and more details to be discussed to meet your personal demands and special requests, please feel free to contact us, we shall be honored to support you build your brewery dream in any way we can!
