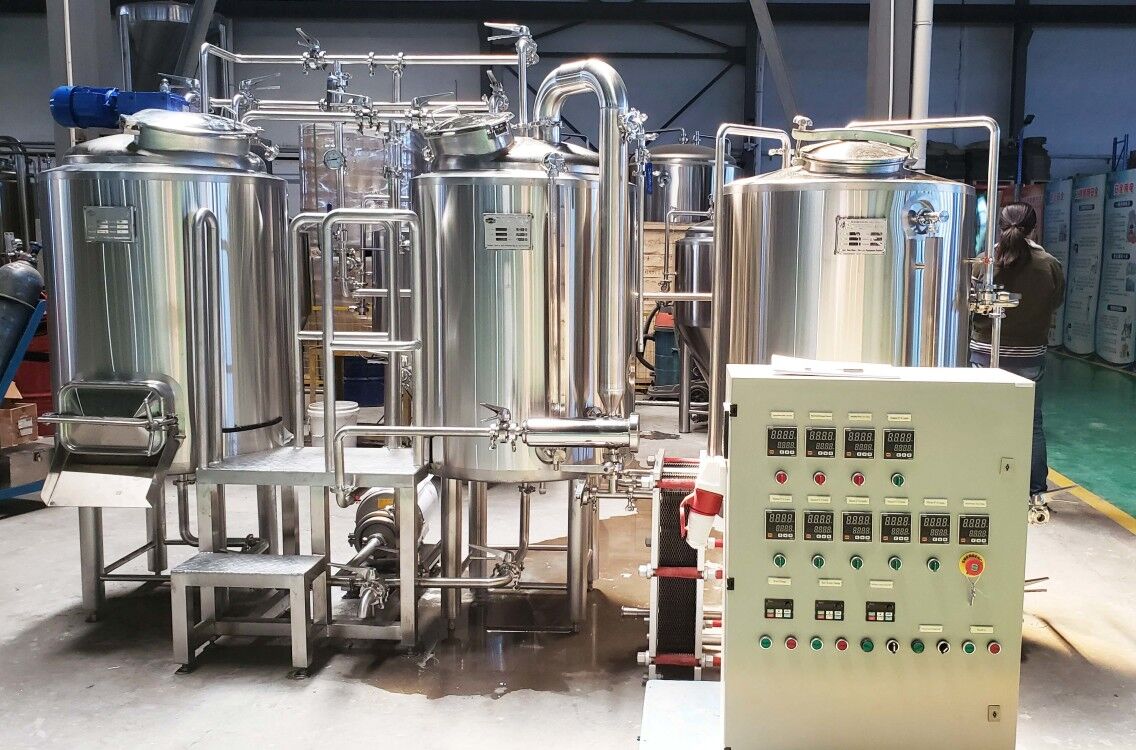

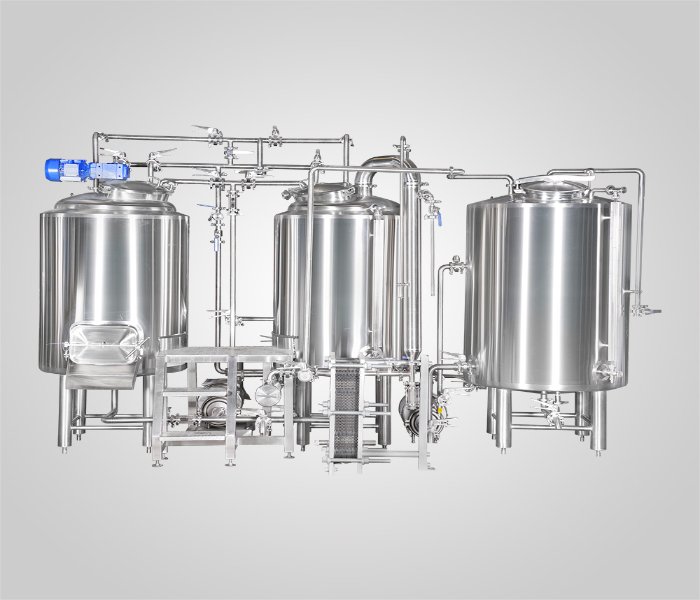

Please allow me to share this 200L 2-Vessel Brewery System with you.

Suitable Groups:
First for our clients who decided to build a microbrewery and start a beer business from the very beginning, almost 90% of them chose this 200L 2-Vessel brewery equipment, and the classic brewhouse combination of Mash/Lauter Tun+Kettle/Whirlpool Tun+Hot Liquor Tank will always be the preferable choice.
Besides, this capacity is also ideal choice for brewpubs, bars and restaurants. It won’t take up much space and a certain number of fermenters will meet the productivity and beer types requirements.
Heating Method:
The second main aspect need to be considered for this system will be its heating method, and for this capacity of equipment, the most choice is no doubt the electric heating, except for it has rather fast rate-of-heating, it is also the most economic way of heating considering the total running cost of brewery afterwards.


Configurations:
Some specific configurations of this equipment can be customized for your requests, like the control panel and malt miller as well as the glycol chiller can be customized into stainless steel one from the original painting type. Besides, the height of the work platform can also be micro adjusted to fit your height requirement.
You could also customized logos with your style on the tanks.

The whole system mainly includes:
Part 1: Malt Milling Unit

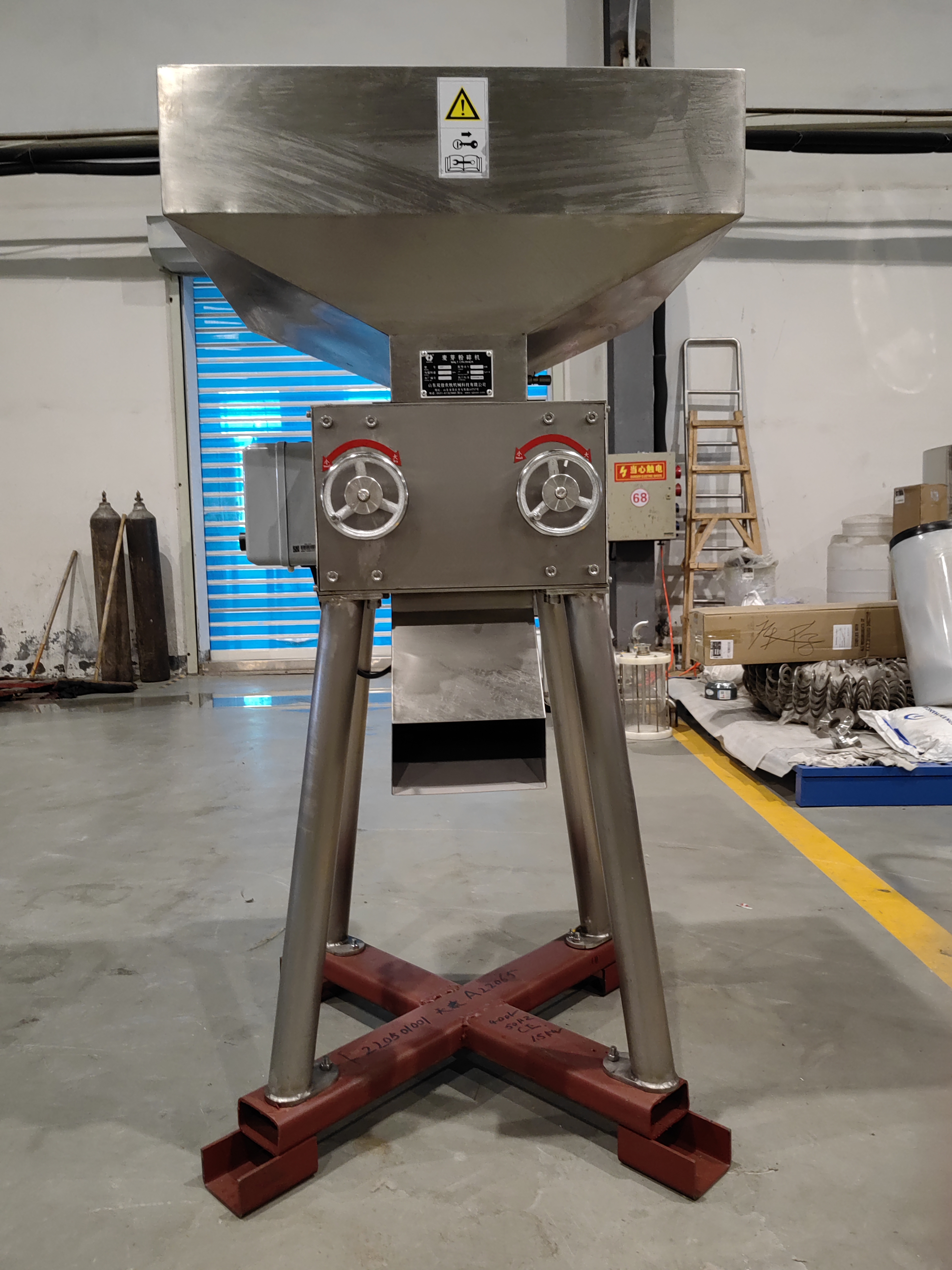

1.1 Malt Miller [100-150kg/hr]
Part 2: 500L Brewhouse
2.1 200L Mash/Lauter Tun+HTL
2.2 200L Kettle/Whirlpool Tun
2.3 500L Hot Liquor Tank
2.4 Non-slip Work Platform
2.5 Sanitary Centrifugal Pump [LYSF]
2.6 Sanitary Piping
2.7 Valves and Fittings
2.8 Manual Water Mixing Station
2.9 Manual Wort Cooling Station
2.10 Pipeline Instrument Sensor
2.11 Glass Manhole (Logo customized, fully strengthened glass, large size easy access to the tank, stainless steel locking handle)
2.12 10L Glass Wort Grant
2.13 6M2 Heat Exchanger [304SS NANHUA] (complies with highest sanitary processing standards)
2.14 Pipe Filter
2.15 Wort Aeration Station
2.16 20L Yeast Feeder
Part 3: Fermentation Unit:
3.1 200L Fermentation Tank/Unitank
3.2 [Bunging Valve, Carbonation Stone, Level Indicator] (for special request)
Part 4: Glycol Cooling Unit:
4.1 500L Glycol Water Tank
4.2 3HP Glycol Water Chiller
4.3 Glycol Water Pipeline
Part 5: Electric Control Unit:

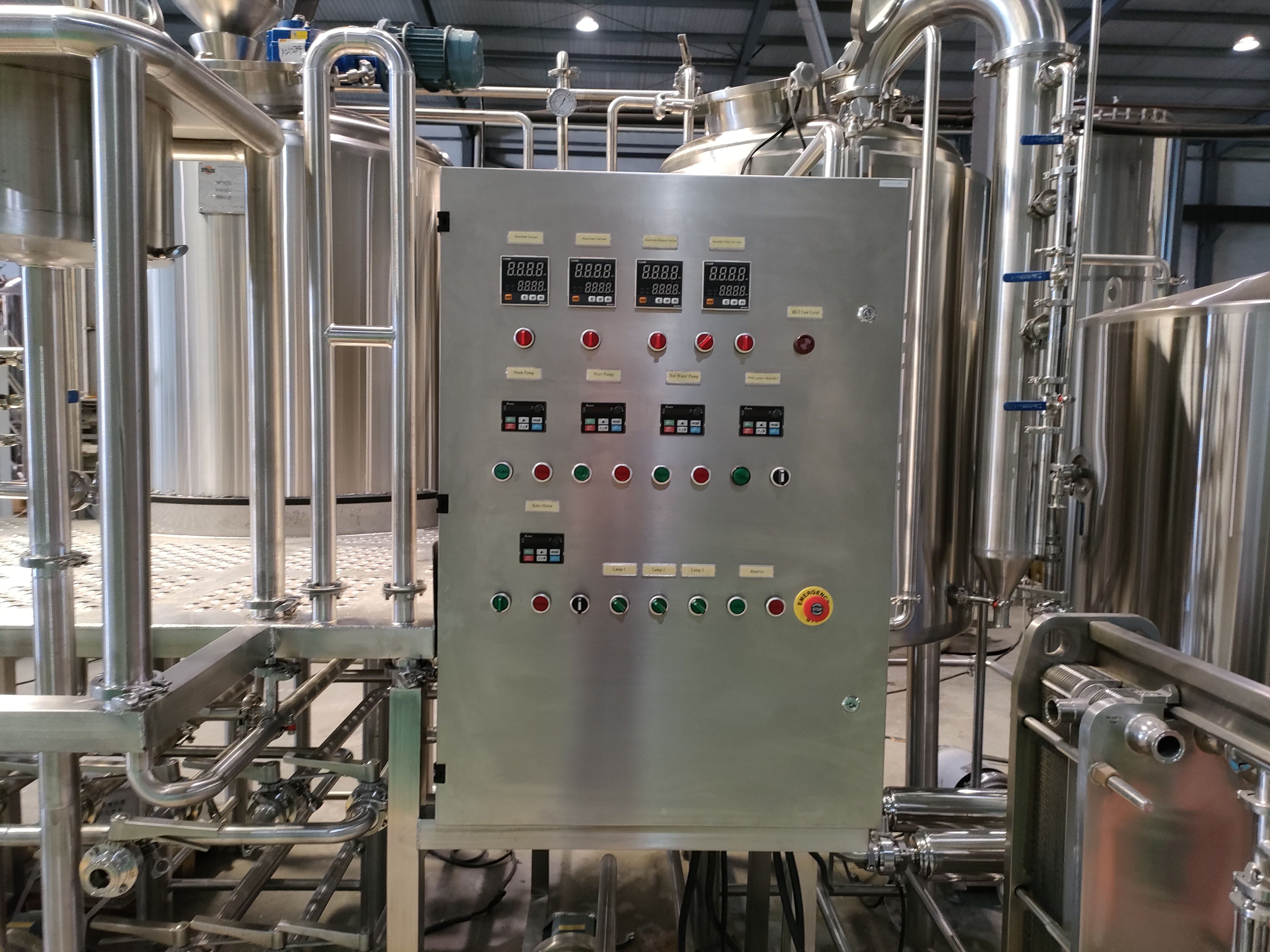

5.1 Brewery Instrumental Control Cabinet
Part 6: Portable CIP Cart:
6.1 Portable CIP Pump or Portable CIP Cart
Installation:
Regarding the installation of our equipment, we kindly provide two options for you, you can choose the one you prefer. The first option is that we send our engineers on-site to install. and the other one is that we provide all installation instructions, and our customer appoints the local installation team to do it. Under the current trend, most of clients choose the latter.

Other configurations and details to be discussed to meet your personal demands and special requests, we shall be honored to support you build your brewery dream in any way we can.

Welcome to contact us for more interested details and look forward to talk about pro brewing with you.
