Hello there, welcome to visit our brewery equipment website!
This is Sharon here from Tiantai Brewery Equipment Company.
Here we’d like to introduce you some of our newly finished beer fermenters, if you are looking for some similar size of tanks or gathering related information for your business, feel free to reach back to us anytime at your convenience for more interested information, Cheers!

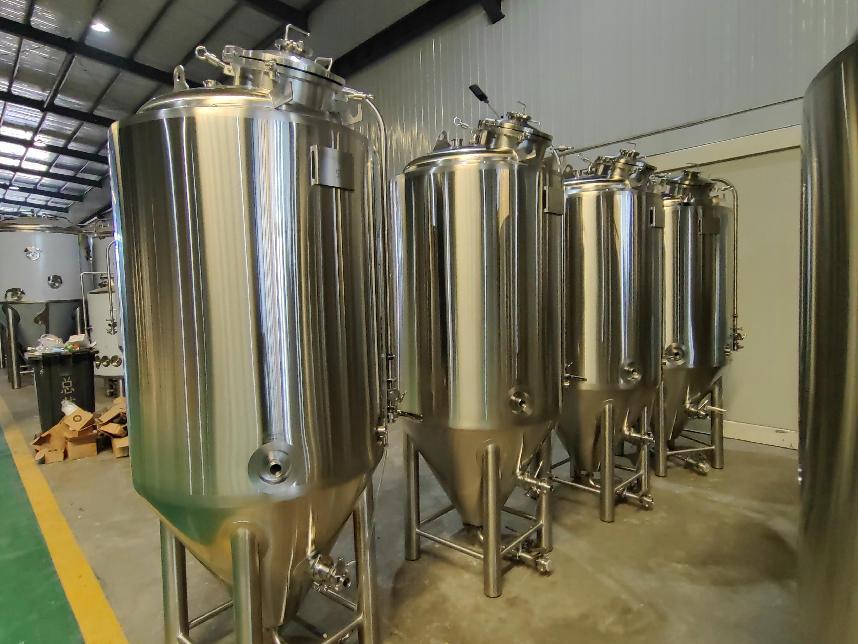

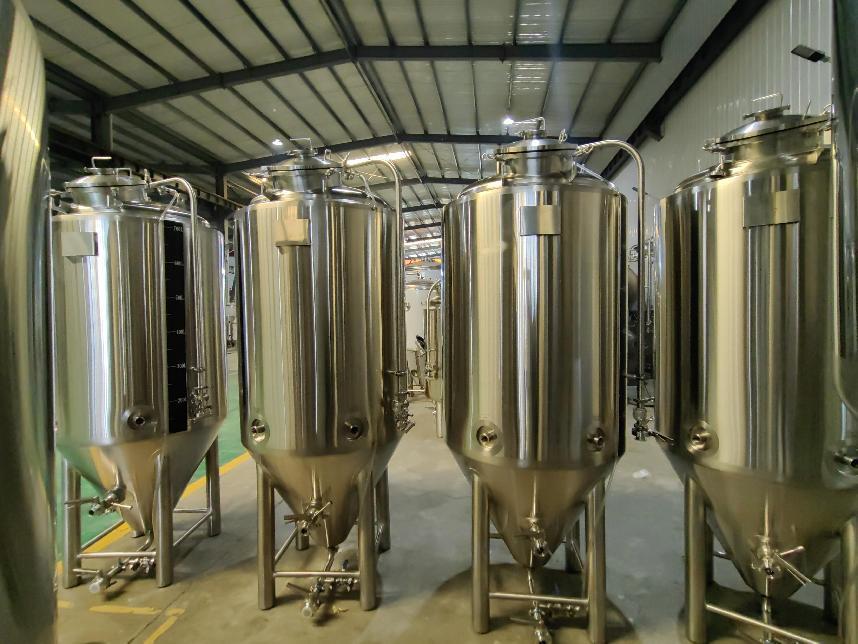

Those are 5bbl/600l fermenters, 600l would be the effective volume and there are 25% of empty space.
Dimensions are available to be customized based on venue conditions, which means tanks are okay to be designed into shorter or higher to meet ceiling room requirements or save space.

Top mounted manholes as default to ensure insulation works, side mounted also available to be designed if there are special demands.
4' drying hopping port horizontal equipped as standard, dry hopping tank are also available to be provided if there are requirements.
Upgraded rotating racking arm configured with features of smooth operating and easy cleaning.

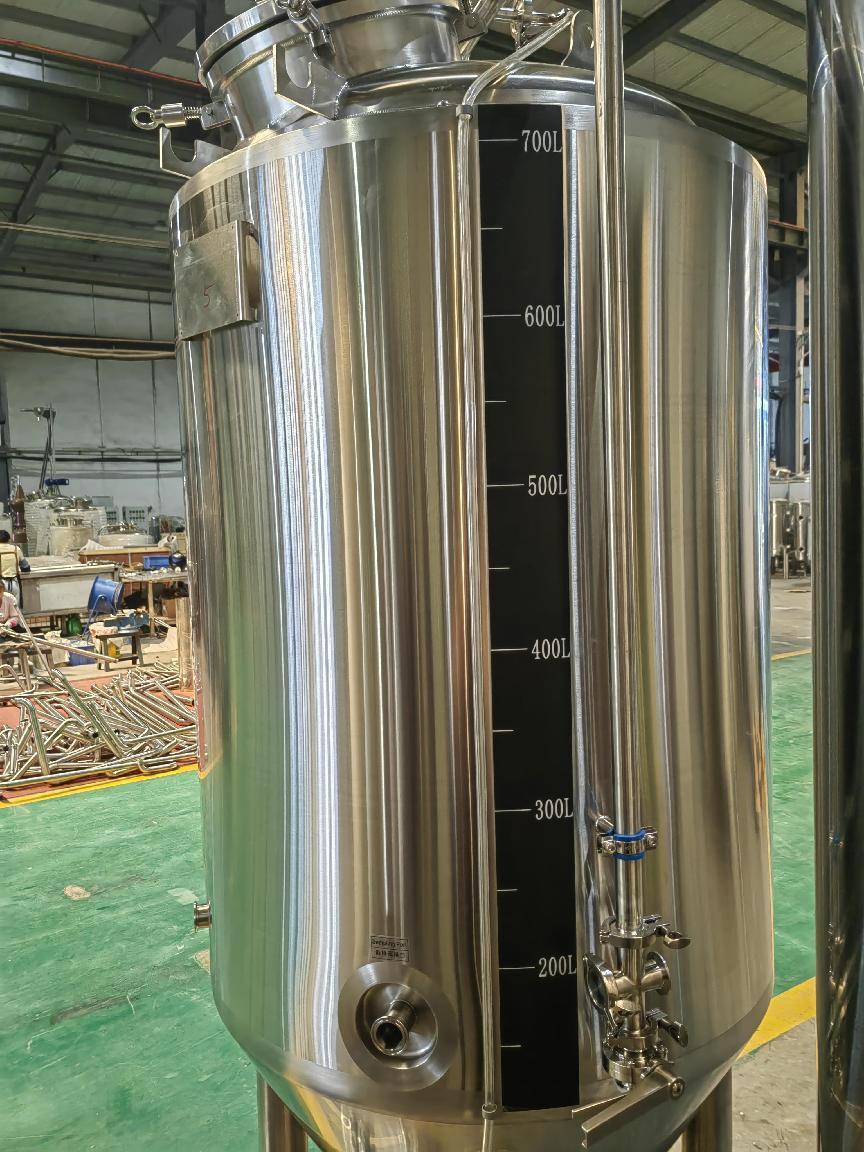

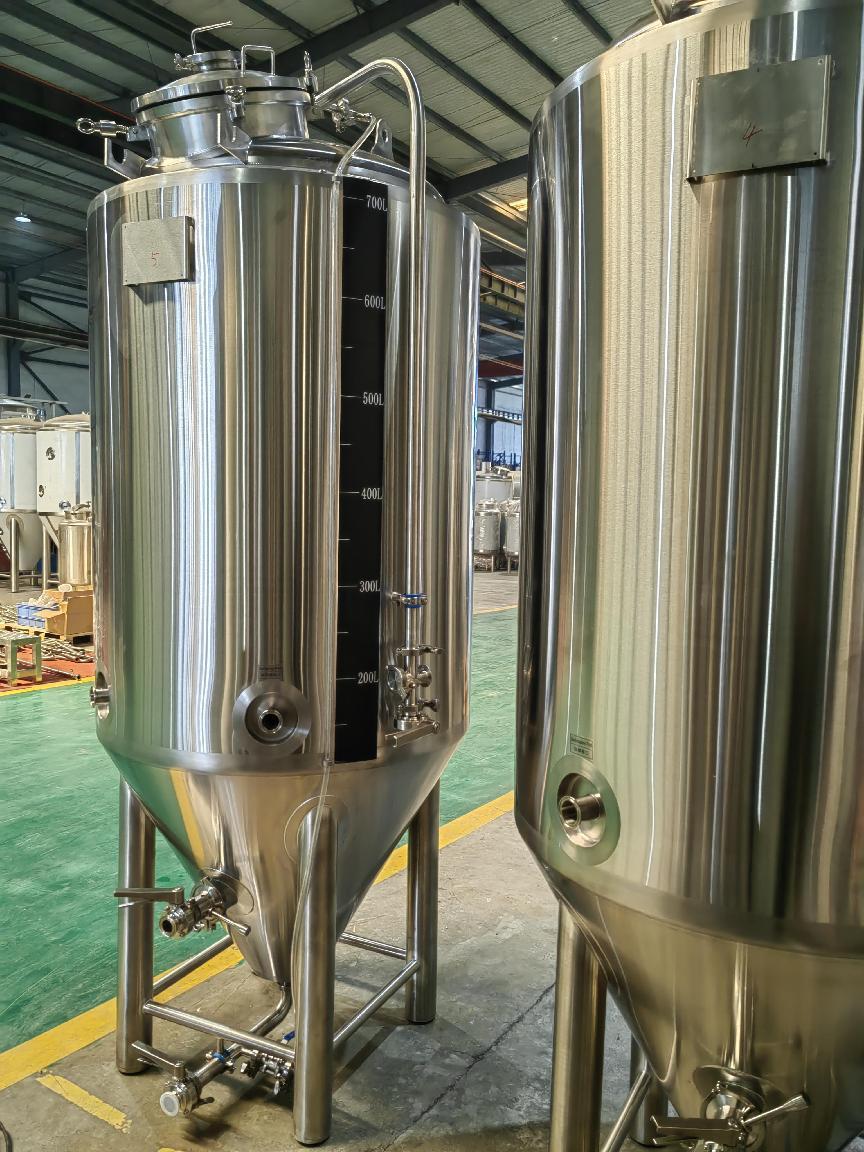

Customized level tubes and indicator provided based on customers requirements, other fittings including carb stone and spunding valve are also available to be supplied for options.
High level stainless steel plates and accessories are promise to be used to make sure the tanks body quality,
And complete set of welding and pressure testing are proceeded during the manufacturing in case of any leakaging happens, and then a total testing would also be conducted before delivering.


Other main features for the tanks:
1) Adjustable feet configured for leveling on uneven grounds and fine heights adjustment;
2) 360 degree rotary CIP spray ball to make sure cleaning without dead corners;
3) PT 100 temperature probe configured as standard;
4) Insulation TH=80mm with low thermal conductivity PU;
5) Mechanical safe valve PVRV 2bar/30psi on top;
6) Full sanitary sampling valve with EPDM seal;
7) Glycol dimple plate on bottom and side wall;
8) Interior full polished to 0.2~0.4 μm without dead corner.

Turnkey solutions, customization services or any other technical assistance are ll available to be provided to meet your requirements, just feel free to let us know your preferred ideas and we’d be more than happy to work together with you finding a suitable solution to help your project running!
