Please allow me to share this 600L 3-Vessel Brewery System with you.

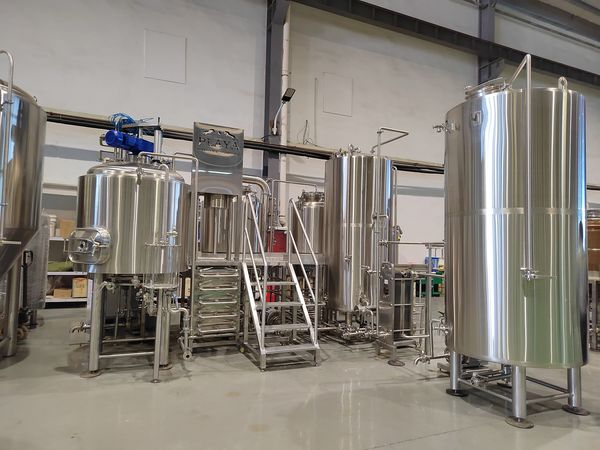

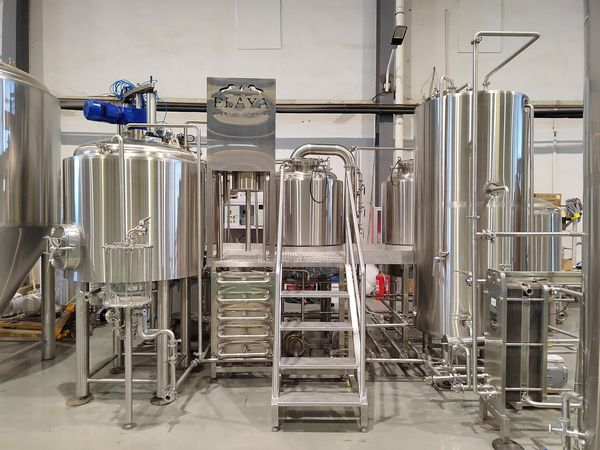

This is a set of 600L brewery equipment configured with 3 vessel brewhouse system(Mash Tun+Lauter Tun+Kettle/Whirlpool Tun) and a double batch of HLT, which heated by steam supply system. One of the advantages of 3 tank brewhouse is it can realize double batches per day.
The double batches of HLT is usually being suggested for our brewery system, which has two main reasons:
1) Provide enough hot water for brewing;
2) To save energy: the hot water flow out of the heat exchanger can be recycled back into the HLT for reusing.
Other customization like reasonable position of mash out, tube plate, control panel and styles of work platform, etc.
Usually the 12 plato around of beer is common to be brewed and therefore it is indicated in our proposal for references. But actually the equipment is designed for brewing beer from 12°P to 18°P. If the strong beer is expected to brew in most cases, we could customize to enlarge the diameter of lauter tun to make sure the good lautering since there will be more spent grain left with more malt input.

The whole system mainly includes:
Part 1: Malt Milling Unit
1.1 Malt Miller [300-500kg/hr]
Part 2: 500L Brewhouse
2.1 600L Mash Tun
2.2 600L Lauter Tun
2.3 600L Kettle/Whirlpool Tun
2.4 1200L Hot Liquor Tank
2.5 Non-slip Work Platform
2.6 Sanitary Centrifugal Pump [LYSF]
2.7 Sanitary Piping
2.8 Valves and Fittings
2.9 Manual Water Mixing Station
2.10 Manual Wort Cooling Station
2.11 Pipeline Instrument Sensor
2.12 Glass Manhole (Logo customized, fully strengthened glass, large size easy access to the tank, stainless steel locking handle)
2.13 10L Glass Wort Grant
2.14 6M² Heat Exchanger [304SS NANHUA] (complies with highest sanitary processing standards)
2.15 Pipe Filter
2.16 Wort Aeration Station
2.17 20L Yeast Feeder
Part 3: Fermentation Unit:
3.1 1200L Fermentation Tank/Unitank
3.2 1200L Bright Beer Tank
Part 4: Glycol Cooling Unit:
4.1 1200L Glycol Water Tank
4.2 5HP Glycol Water Chiller
4.3 Glycol Water Pipeline
Part 5: Electric Control Unit:
5.1 Brewery Instrumental Control Cabinet
Part 6: Portable CIP Cart:
6.1 Portable CIP Pump or Portable CIP Cart

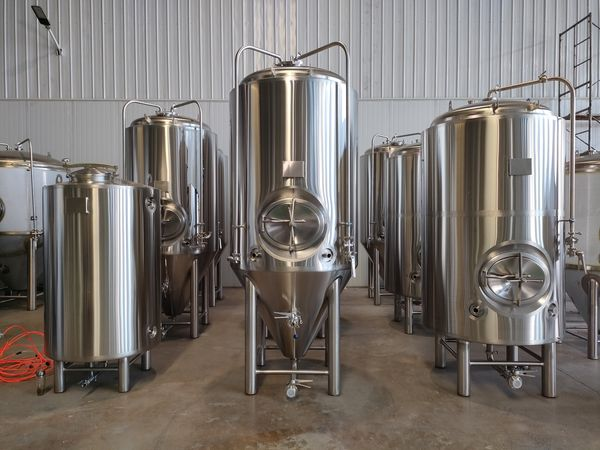

Our double dimple jacketed fermentation tank allows both isobaric and atmospheric filling, which is controlled by the top CO2 Port. The other configurations like dry hopping port, CIP washing ball, bunging valve, carbonation stone, level indicator, thermowell with PT100, bottom valve for yeast and sediment purge and clearing valve for beer transfer to bottling are all allowed to be configured according to your special requests.

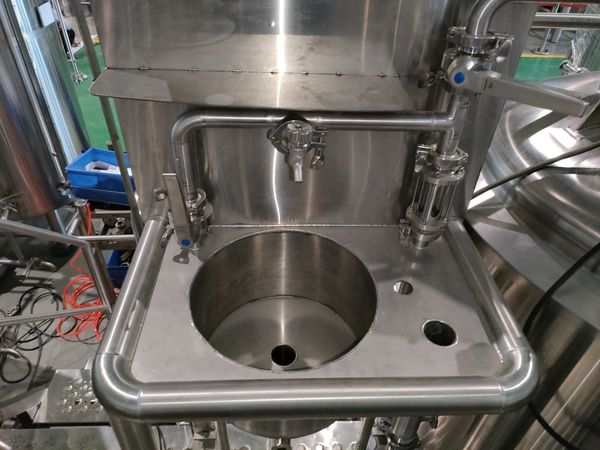

A washing basin with sight glass for the convenience of observing the wort conditions.
Regarding the installation, we will provide all the technical documents for you including videos and photos, there will be serial numbers marked for all tri-calmps for your better checking and finding.

Other configurations and details to be discussed to meet your personal demands and special requests, we shall be honored to support you build your brewery dream in any way we can.
