Please allow me to share this brewery case of 600L 4 Vessel Brewhouse Project with you:

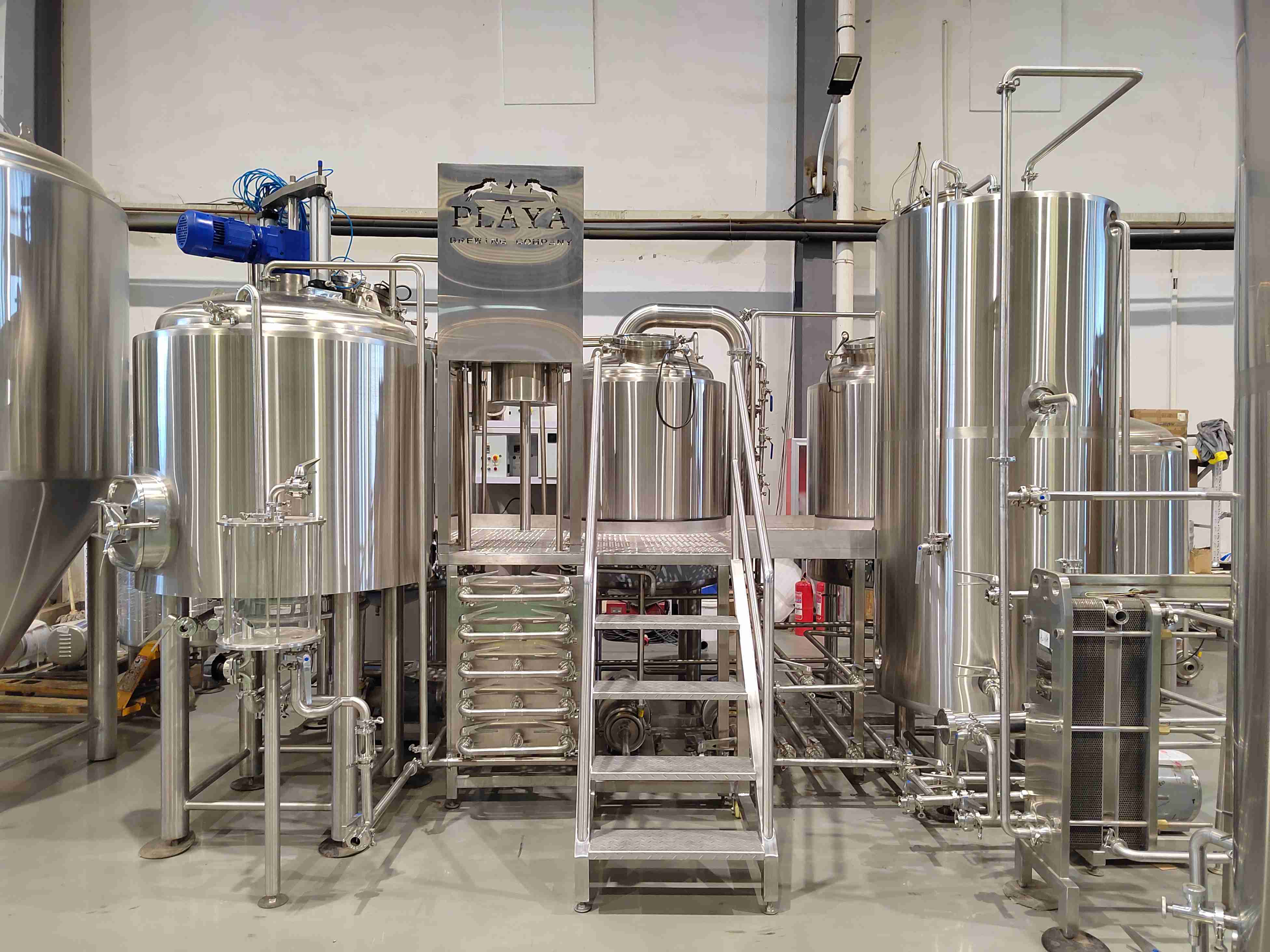

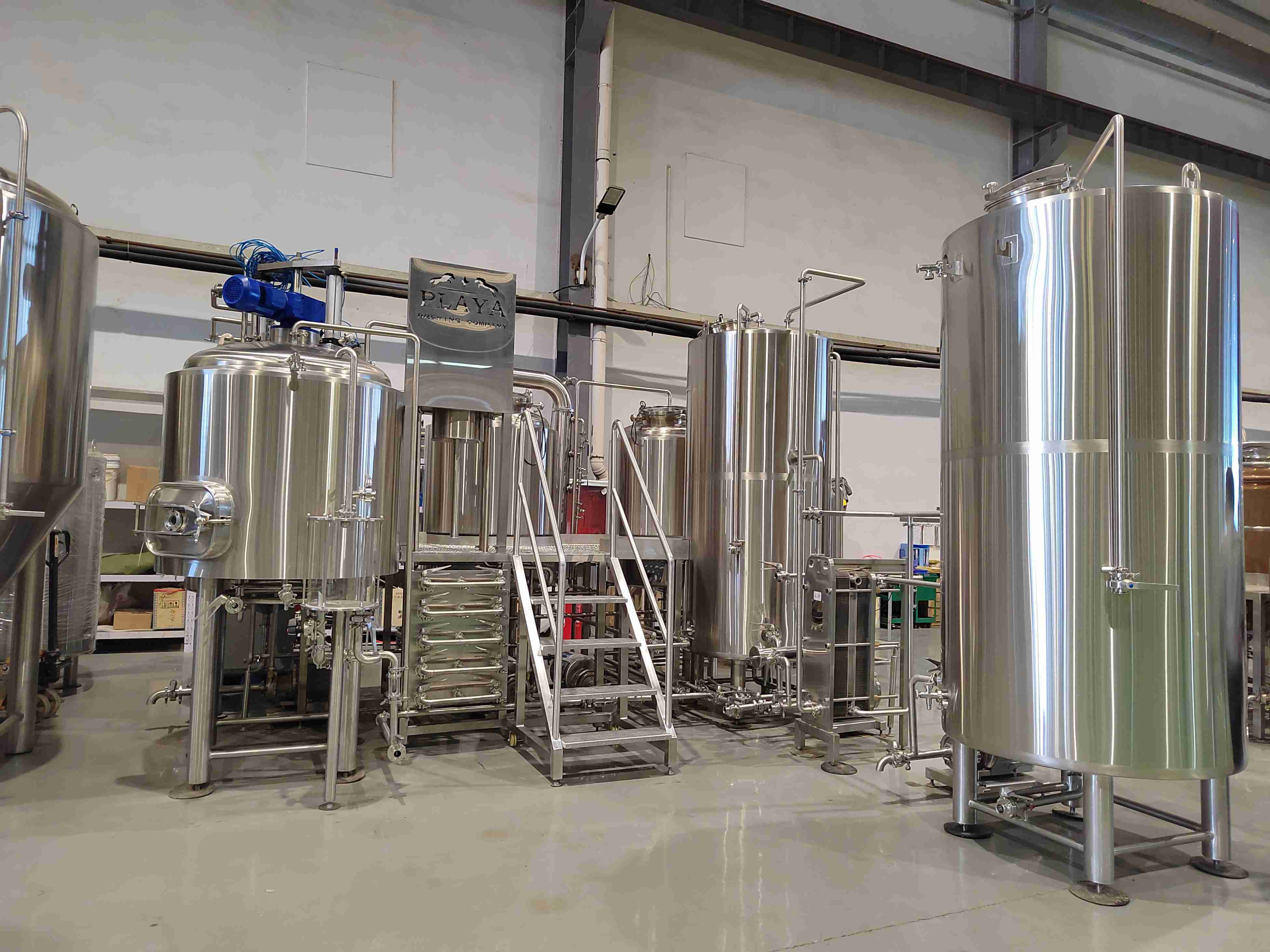

This is one set of 600L 4 vessel brewhouse project for one of our great customers, which has the classic brewhouse combination of mash tun+lauter tun+kettle tun+whirlpool tun and also a double batches of HLT. The square layout is customized according to our clients’ requests to well-fit in their venue and also for the convenience of observing and operating the beer brewing process.

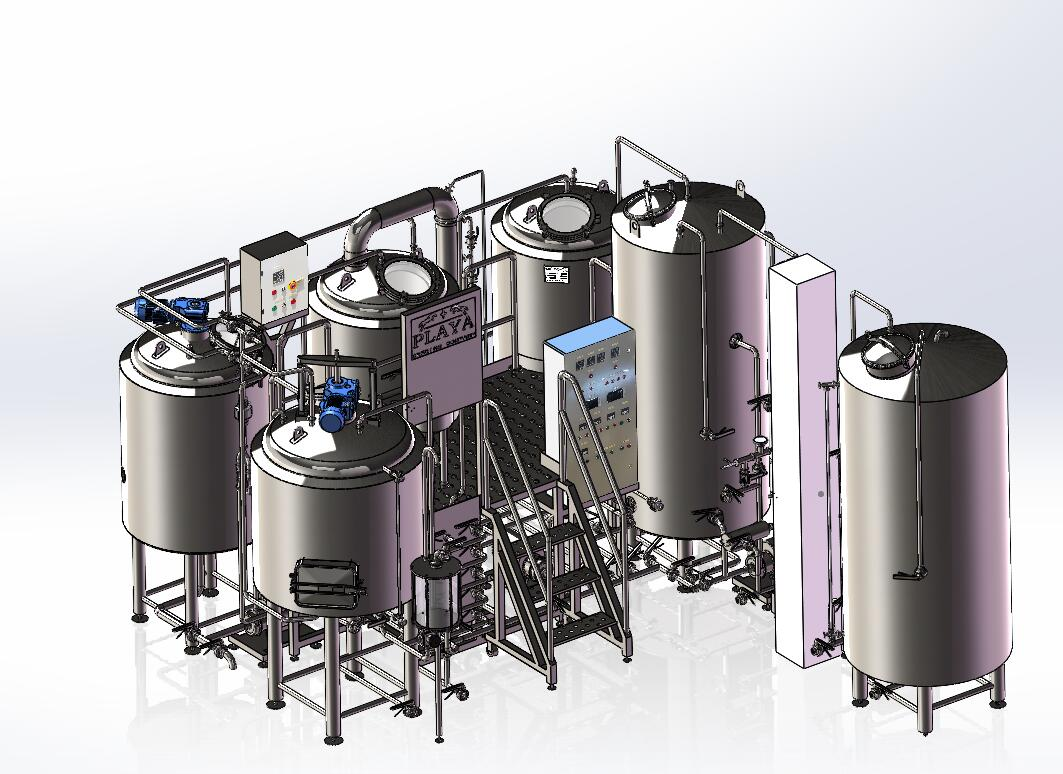

For pursuing the visible and precise effect, for each one of brewery project, our engineers will design the 3-dimensional drawing for our customers to ensure the equipment after producing will well-fit in the venue, and through this way the detailed configurations and whole structure will be presented clearly to our customers.

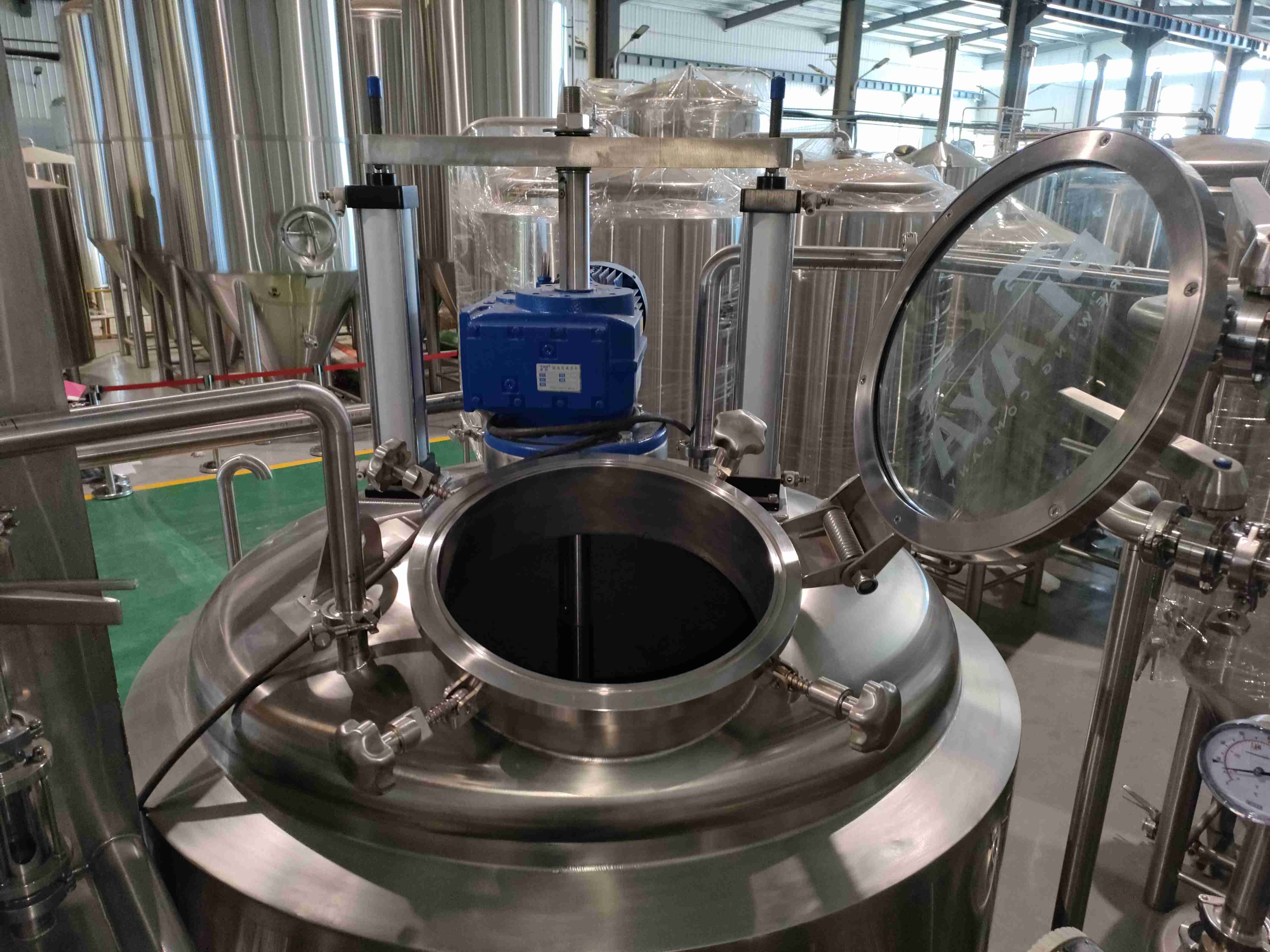

The glass manholes could be customized with your favorite patterns or figures to express your brewery styles.

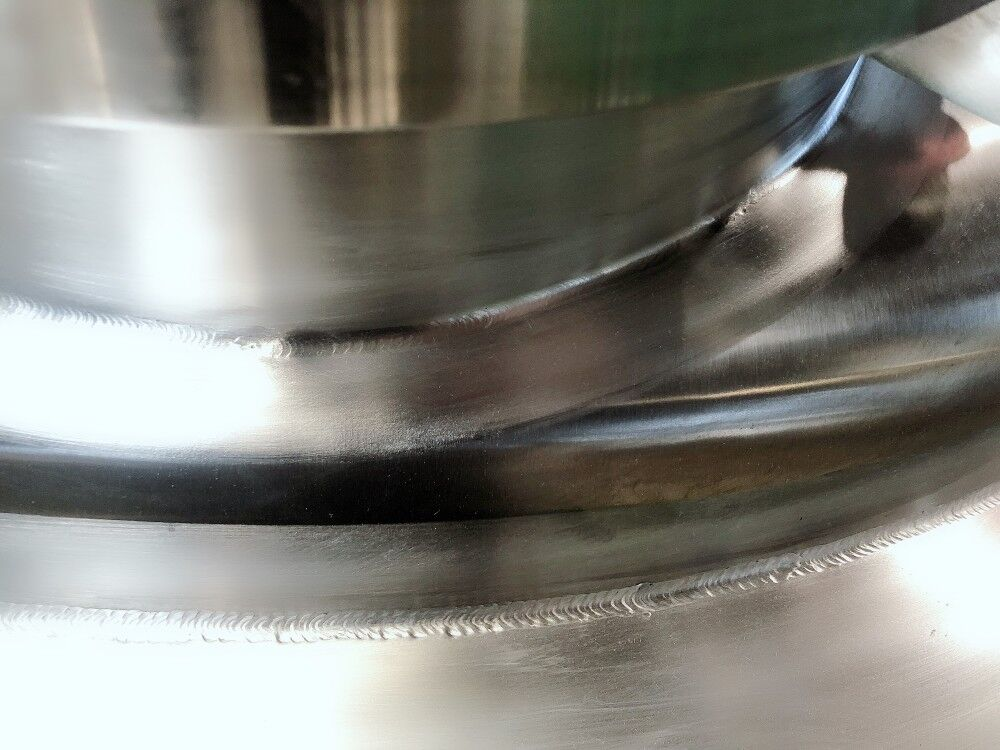

The beautiful welding lines of our tanks.

The main configurations of this set of brewery system:
Part 1: Malt Milling Unit
1.1 Malt Miller [300~500kg/hr]
Part 2: 6HL Brewhouse
2.1 6HL Mash Tun
2.2 6HL Lauter Tun
2.3 6HL Kettle
2.4 6HL Whirlpool Tun
2.5 12HL Hot Water Tank
2.6 Non-slip Work Platform
2.7 Sanitary Centrifugal Pump [LYSF]
2.8 Sanitary Piping
2.9 Valves and Fittings
2.10 Manual Water Mixing Station
2.11 Manual Wort Cooling Station
2.12 Pipeline Instrument Sensor
2.13 Glass Manhole (Logo customized, fully strengthened glass, large size easy access to the tank, stainless steel locking handle)
2.14 Wort Balance Column
2.15 20M2 Heat Exchanger [304SS NANHUA] (complies with highest sanitary processing standards)
2.16 Pipe Filter
2.17 Wort Aeration Station
2.18 50L Yeast Feeder
Part 3: Fermentation Unit:
3.1 600L Fermentation Tank/Unitank
Part 4: Glycol Cooling Unit:
4.1 1200L Glycol Water Tank
4.2 5HP Glycol Water Chiller
4.3 Glycol Water Pipeline
Part 5: Electric Control Unit:
5.1 Brewery Instrumental Control Cabinet
5.2 Fermentation Control Cabinet
Part 6: 200L Portable CIP Cart [Two Tanks]
6.1 100L Single Wall Caustic Tank
6.2 100L Single Wall Acid Tank
6.3 Sanitary Centrifugal Pump
6.4 Sanitary Piping
6.5 Valves and Fittings
6.6 Portable Trolly
6.7 CIP Control Cabinet
Other configurations and details to be discussed to meet your personal demands and special requests, we shall be honored to support you build your brewery dream in any way we can.
