Last week, the 2018 Shanghai CBB(China Brew China Beverage) finished perfectly.
Here we would like to share the set of 2000L four vessel brewhouse with you. Hope that you can spare your time to check below photos and words.

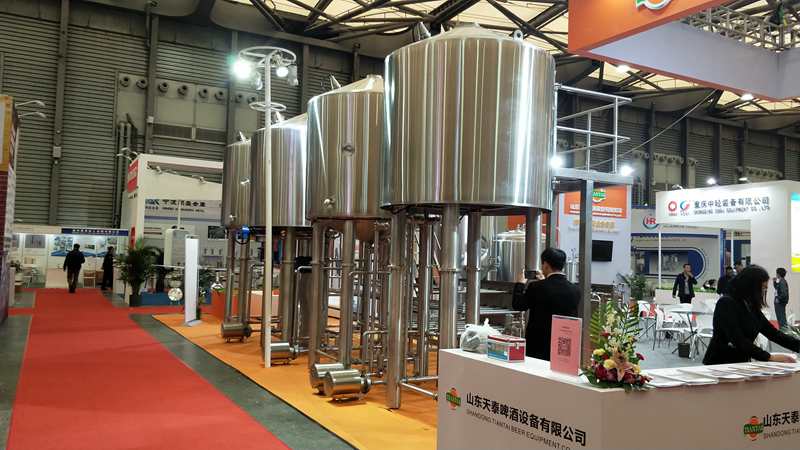

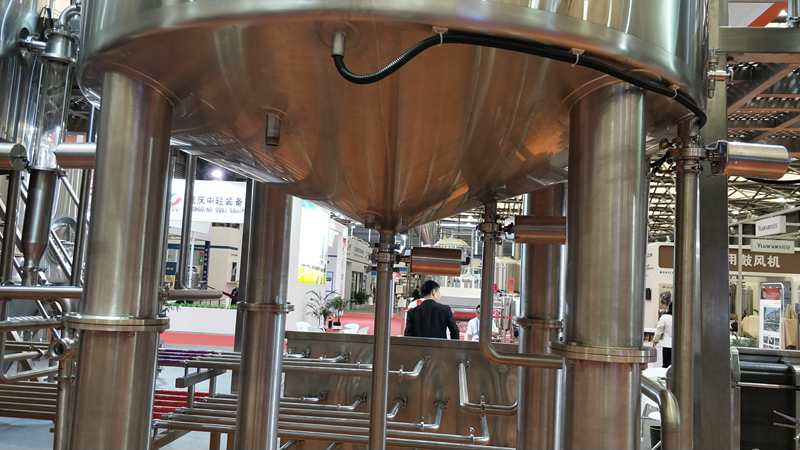

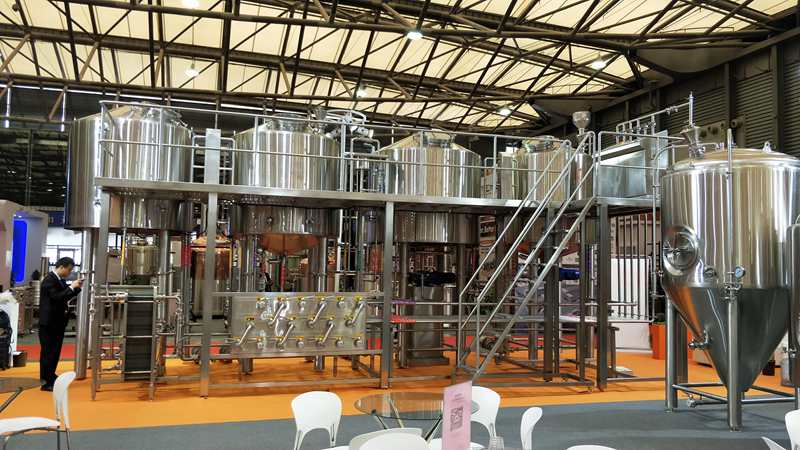

The following 2 photos are whole views for the 2000L brewhouse, that had attracted the attention of many vistors.

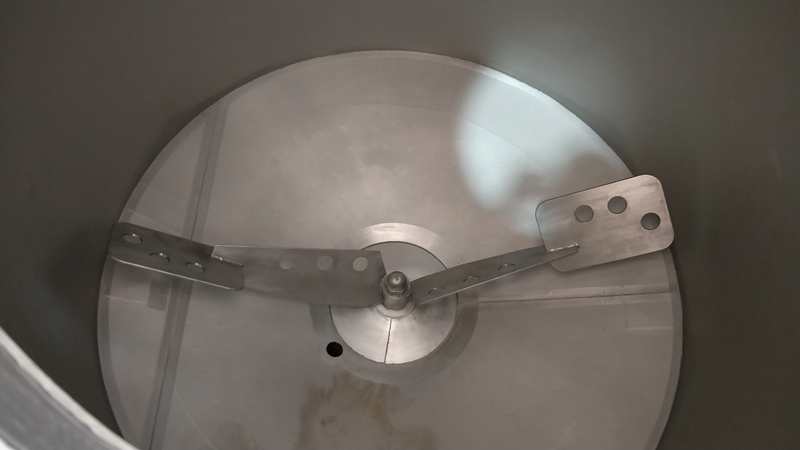

This is Agitator for mash tun, and the mash tun adopts steam heat method, that can be used for different of step mashing methods.

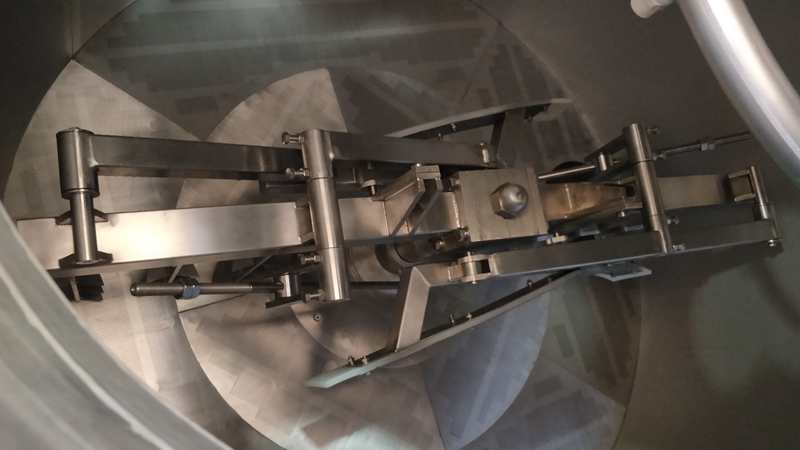

The picture shows automaticlly lifted rake, that is very easy to form nice grist bed and convenient to make the spent grist out of the tank.( Out spent grist from Bottom)

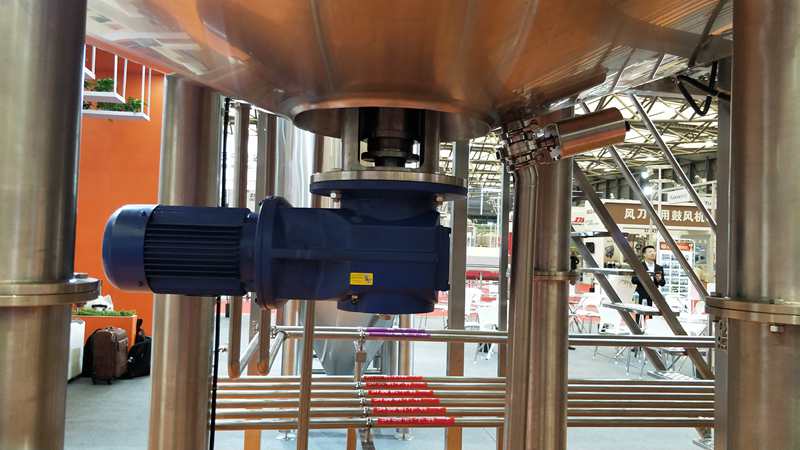

This is Agitator motor, that passed CE certificate, and UL certificates for option.
It is Rake motor, and VFD control(change the speed) is our standard configuration for all pumps and motors. We can set and run any speed rate for motors from slow to fast. Very nice design.

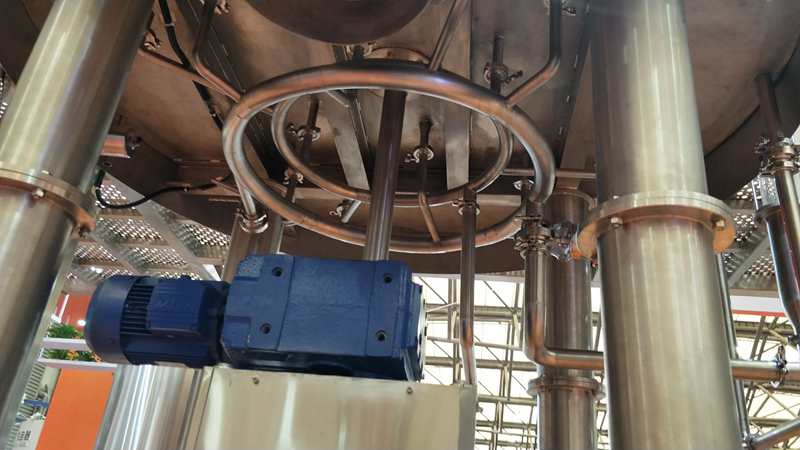

There are two rings in the photo above. The bigger one is wort collection ring, and help brewmaster to get smooth filtration. The smaller one is back rinser, that can help clean the gap(space) between bottom of tank and false bottome.

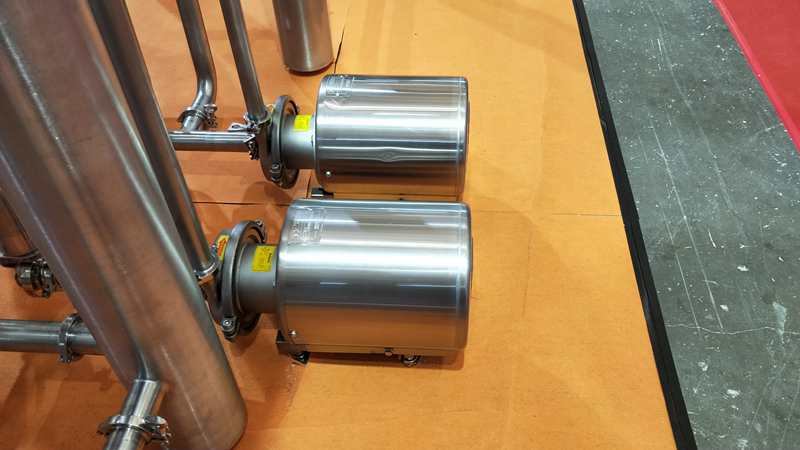

The following shows LYSF pump, that use the technology of the falava. that has the UL and CE certificates. Very good brand in the brewing filed.
This is water mix valve, that help us get proper brewing water and sparging water.

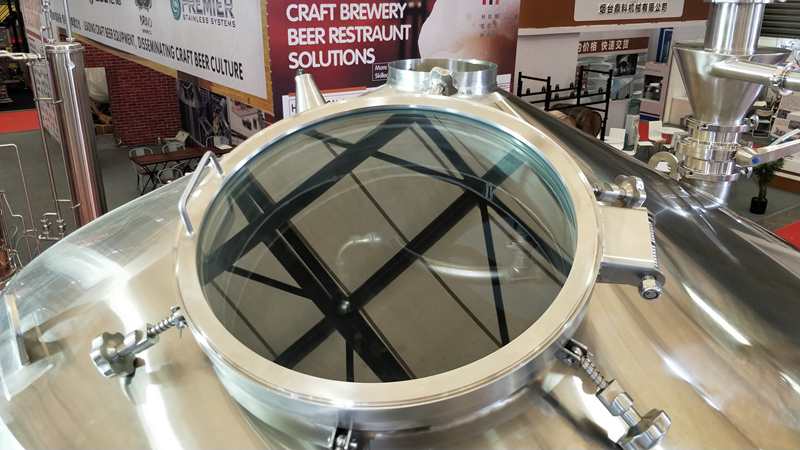

The following figure shows glass manhole door. Looking inside the vessel become an easy thing to do. Do you like it ? :-)

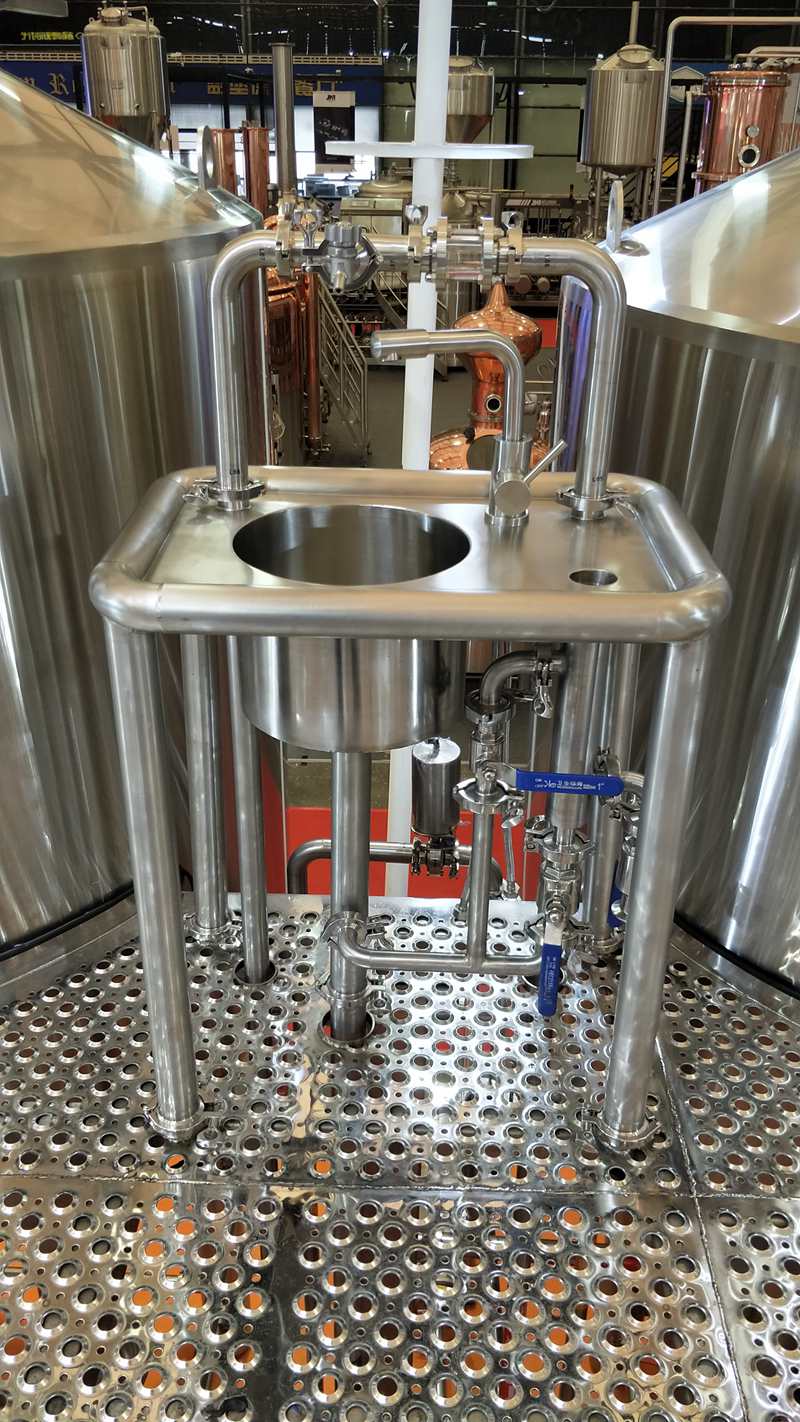

This is mutifuctional sink, that can be used for washing hand, collect wort sample, cooling the sample wort.

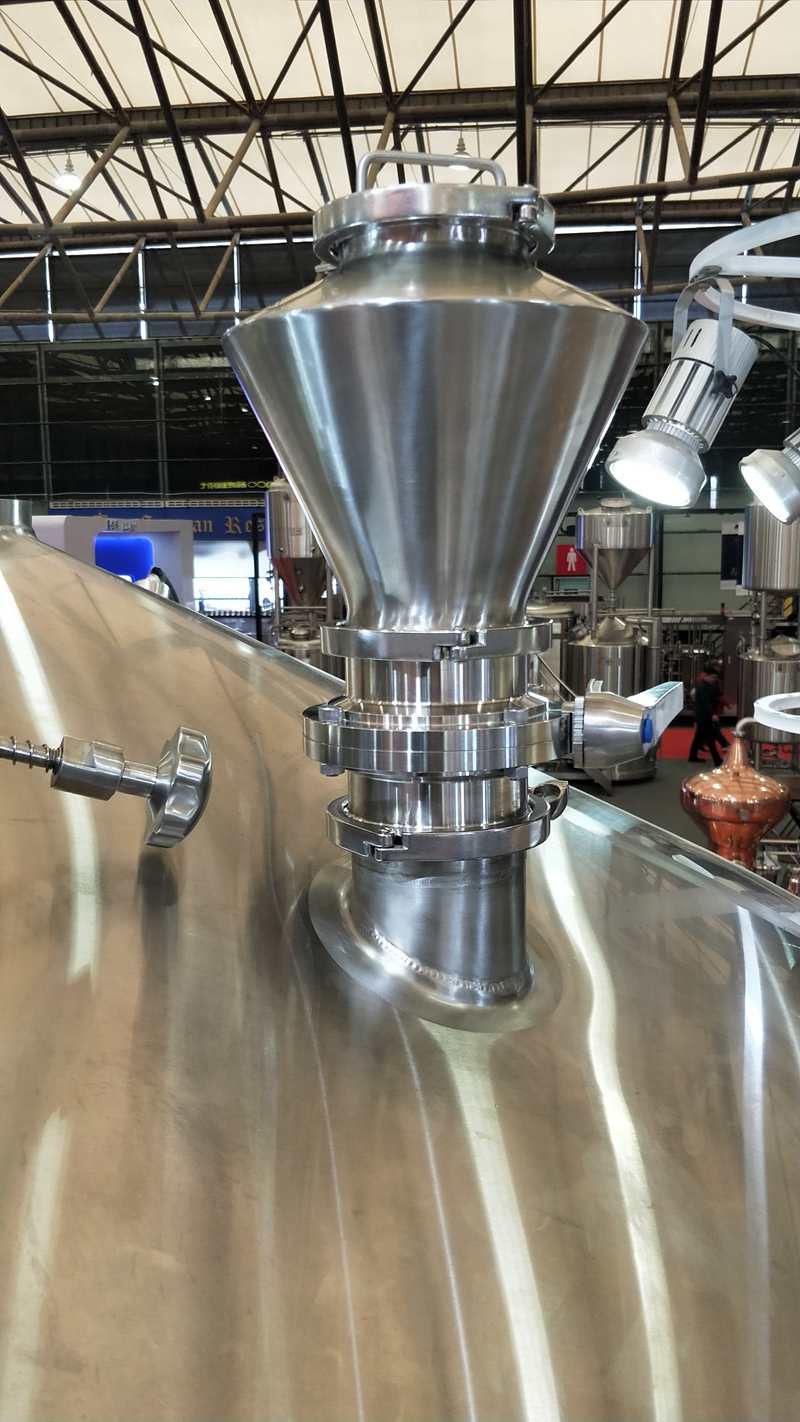

It is a device for adding the hops when wort is boiling.

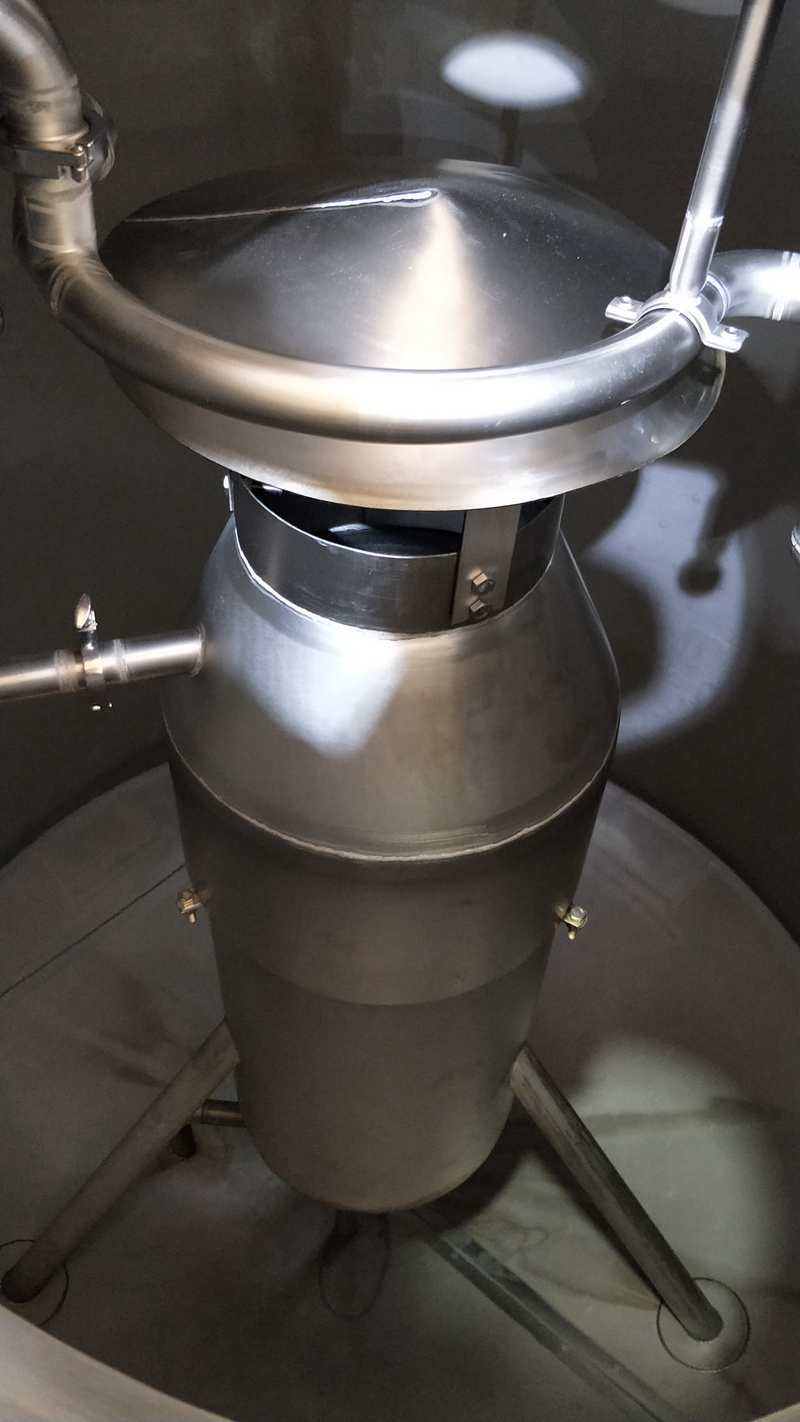

This is internal Calandria for brew kettle.

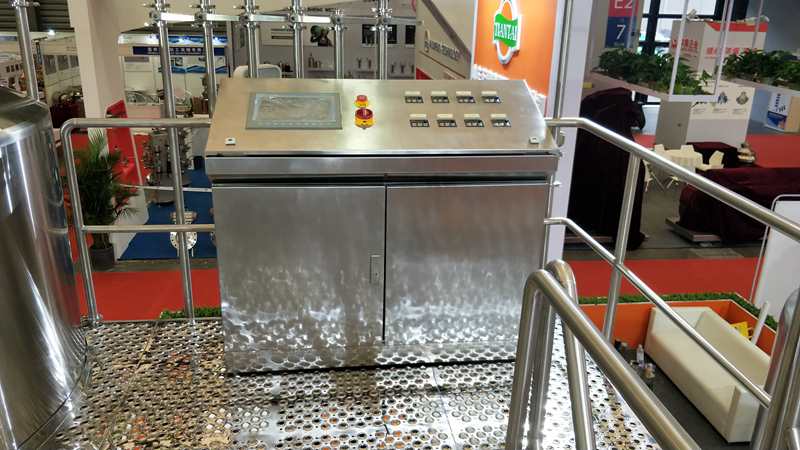

This is Siemens PLC touch screen.

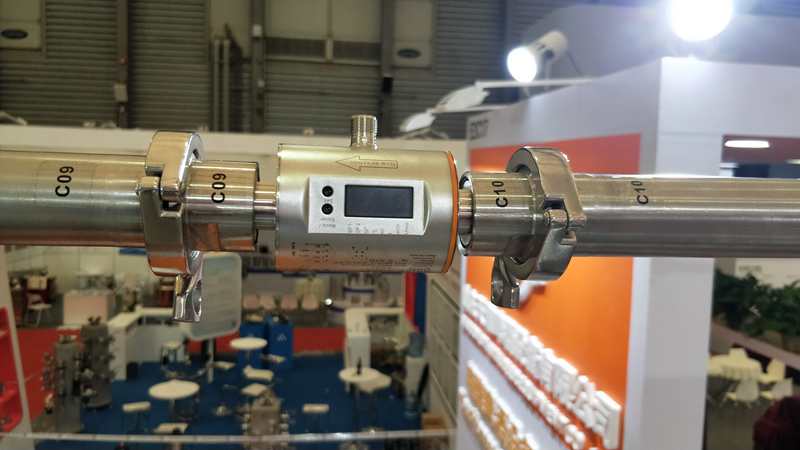

This is IFM-SM8000 flowmeter.

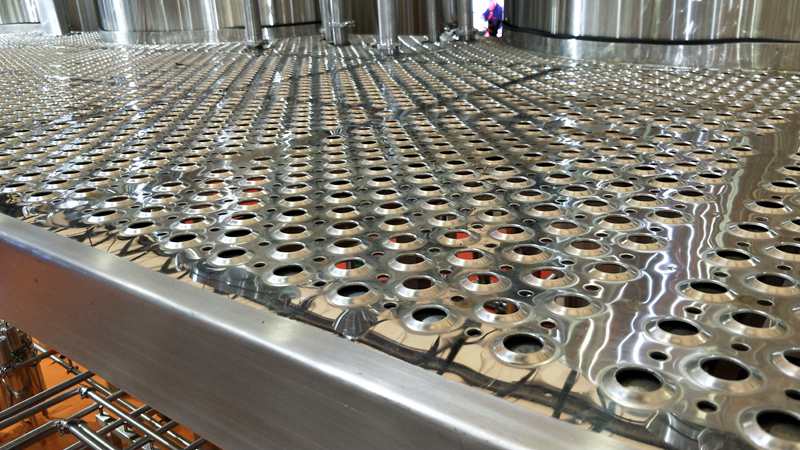

It is fish-eye plate form, easy cleaning and good skid resistence.

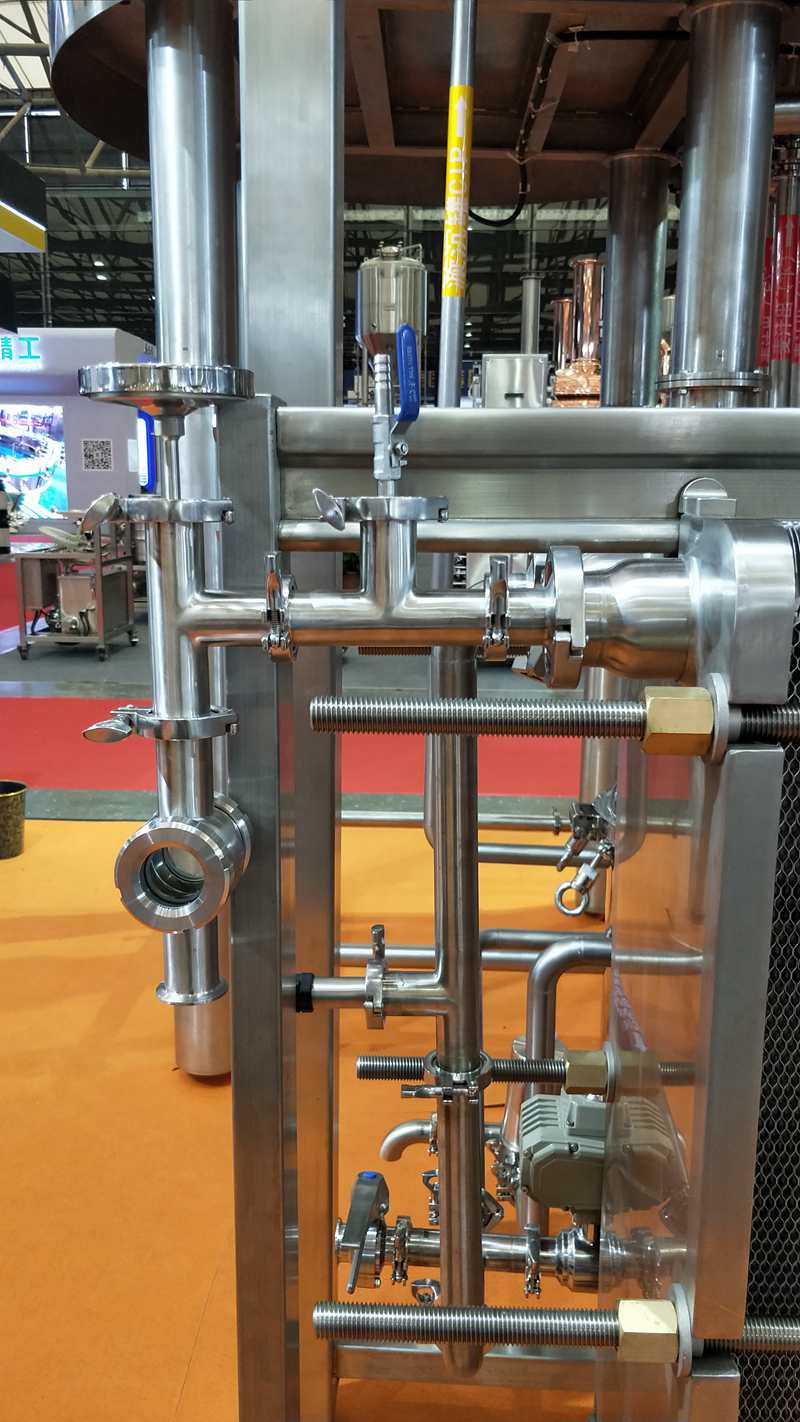

This is wort aration device.

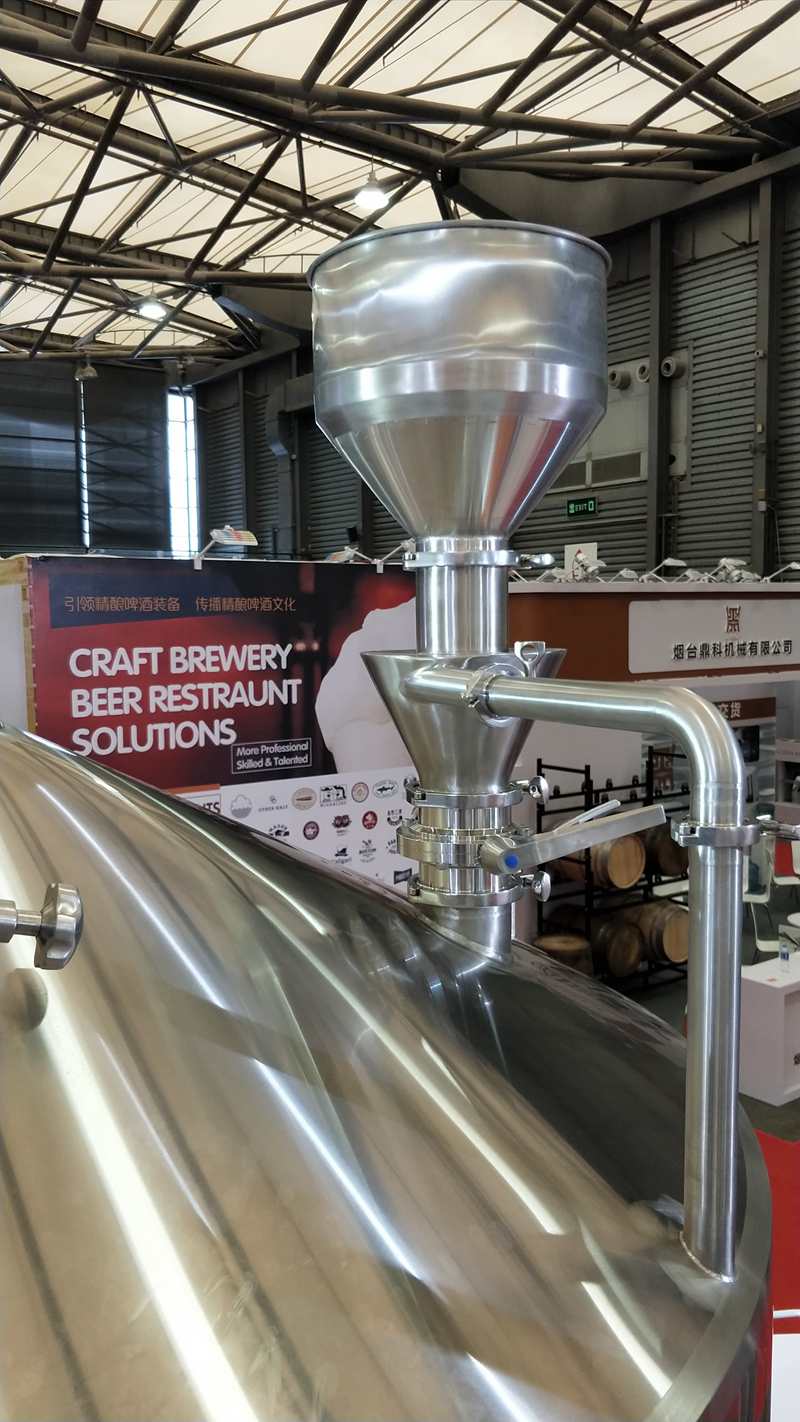

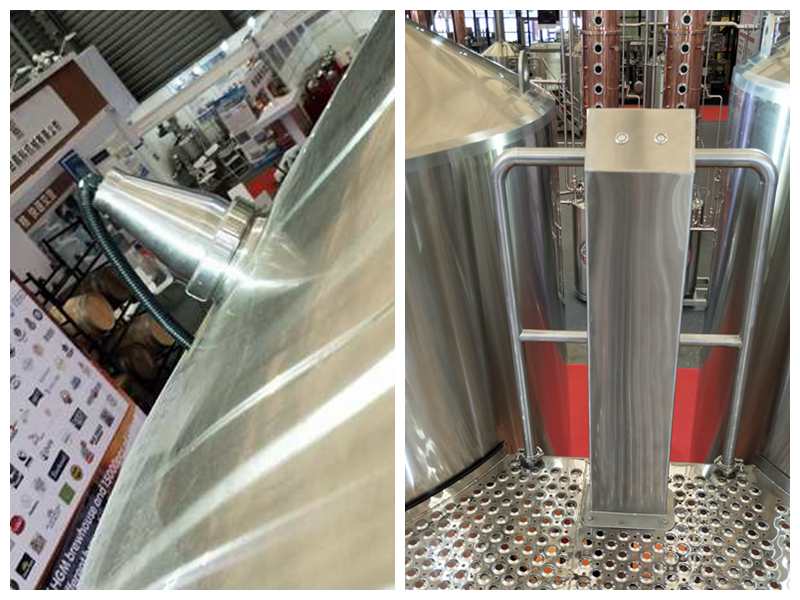

It's grist hydrator;
The following is top light and its control button;

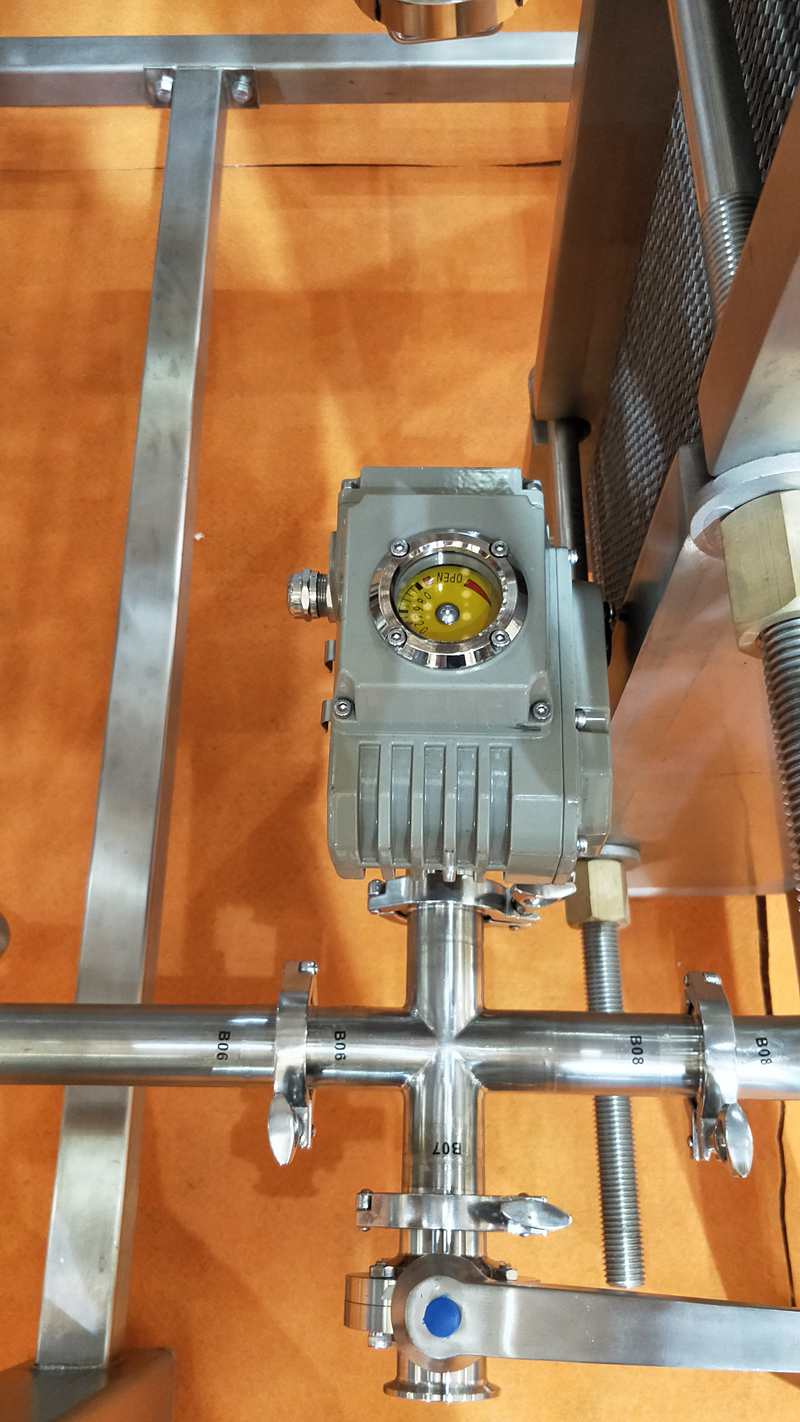

Following shows some pneumatic valves, that should be used with PLC control.
Each sets of brewery system contains a lot of our painstaking and humane designs, we'd like to let customers get a good set of equipment, that can help brewers make good beers, and help owers get good returns.
Please feel free to let me know when you have any questions or you want to know more about our brewery system.
Hope the sharing is meaningful for you. Thank you!
