Here is Tiantai Beer Equipment Co., Ltd.
Welcome to visit our brewery equipment website!
Please allow me to share the Small Sizes Beer Fermentation Tanks from Tiantai with you:

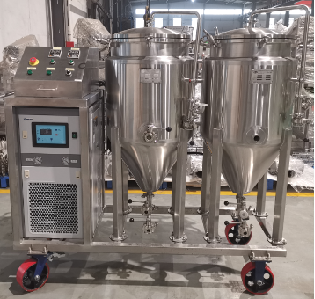

The fermentation tanks in the above photo are 100L tanks, which are being purchased by our customer for the use of beer recipe testing. Usually this small sizes of tanks are being used in either homebrewing or beer recipe testing pilot system. Main configurations and technical information of the fermentation tank:
1. Horizontal mounted rotating racking arm and port in cone with butterfly valve.
2. Discharge arm with butterfly valve, Removable and easy to clean.
3. Sanitary welded thermometer for high accuracy temperature sensor 1pcs.
4. Sanitary top center mounted manhole with pressured door.
5. Top mounted double clamp 360° rotary CIP spraying ball and port, 1pcs.
6. CIP arm with four-way connection and butterfly valve.
7. Cooling Jacket: Dimple plate on bottom and side wall, welded without over burning.
8. Glycol water in/out port on side wall, Thick wall pipe thread (Top or bottom design available).
9. Full sanitary sampling valve with EPDM seal.
10. 4 sets heavy duty foot pad with up-down and slop adjustable.
11. Complete valves, fittings and all parts, Tri-clamp/DIN Union available.
12. Pressure adjustable bunging valve 0.2-2.2bar for special request.
13. Sanitary level tube and valves for special request.
14. Carbonation port with stone for special request.

Wheels could be customized for the convenience of moving.


Or the fermenters could also be customized on the frame with chiller and control panel.
Other configurations and details to be discussed to meet your personal demands and special requests, we shall be honored to support you build your brewery dream in any way we can.
Please feel free to contact us for more interested details if there is any questions or other demands anytime.
Cheers!

Edited by Sharon from Tiantai Brewery Equipment
Contact: [email protected]
