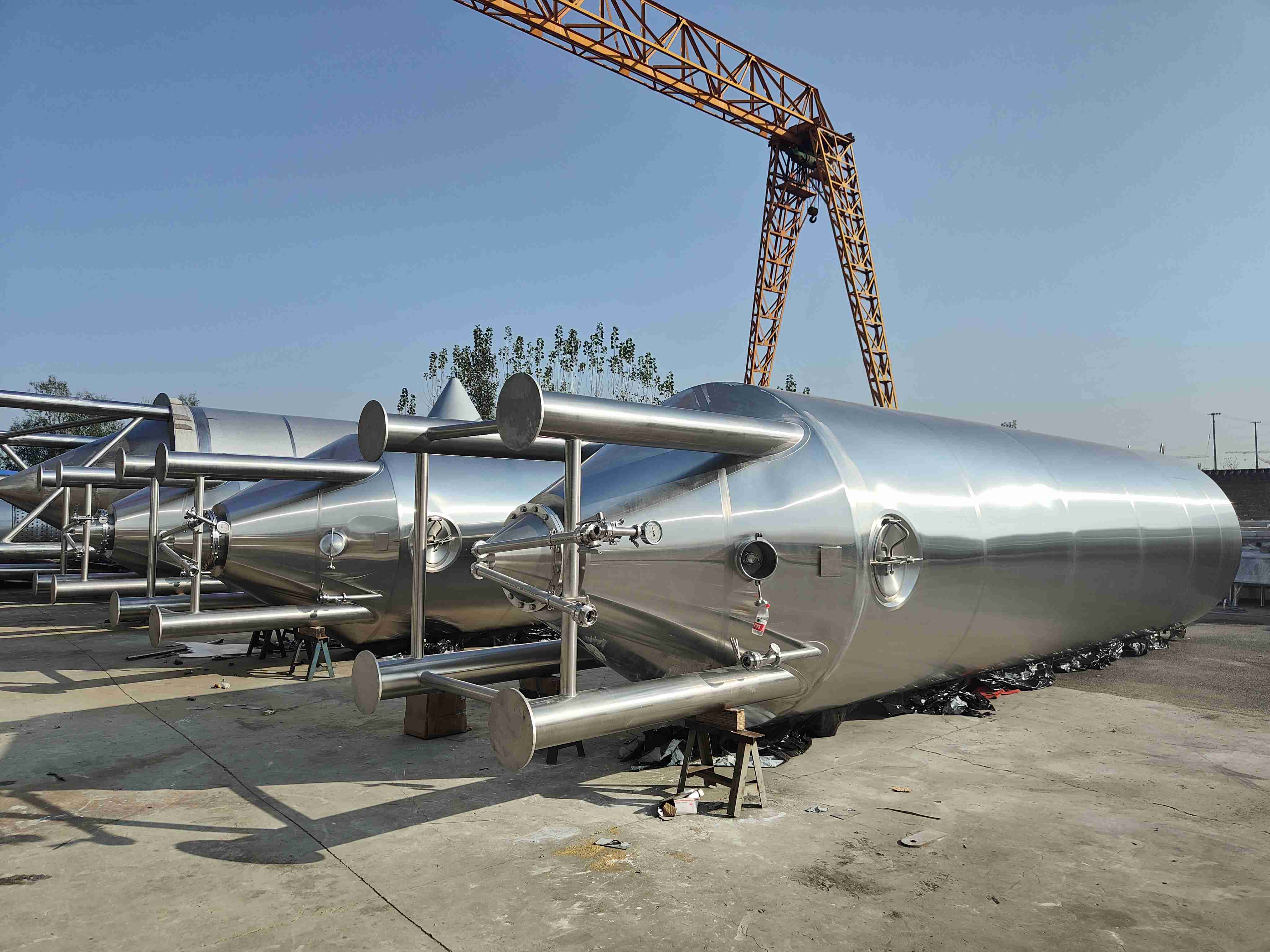

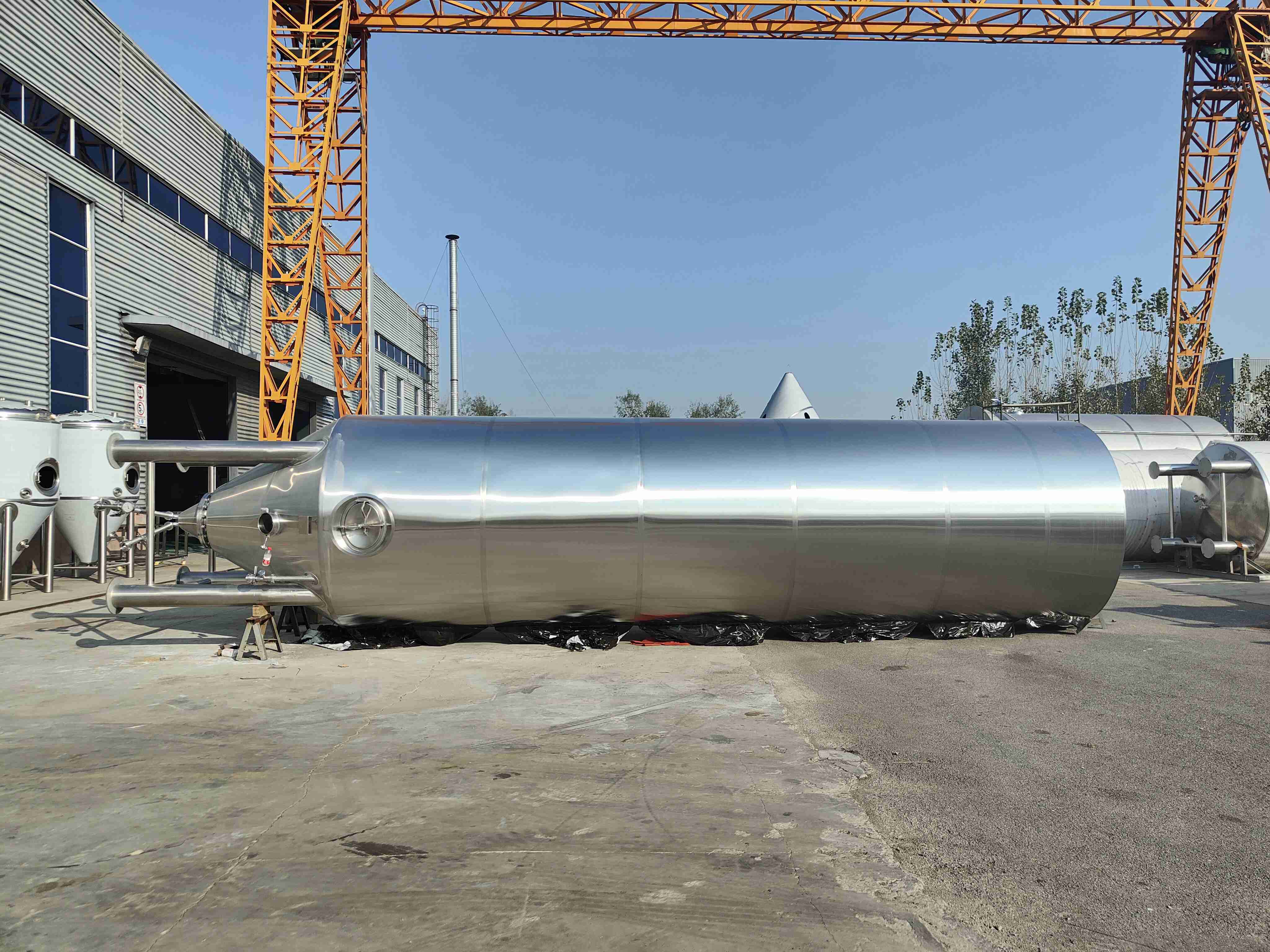

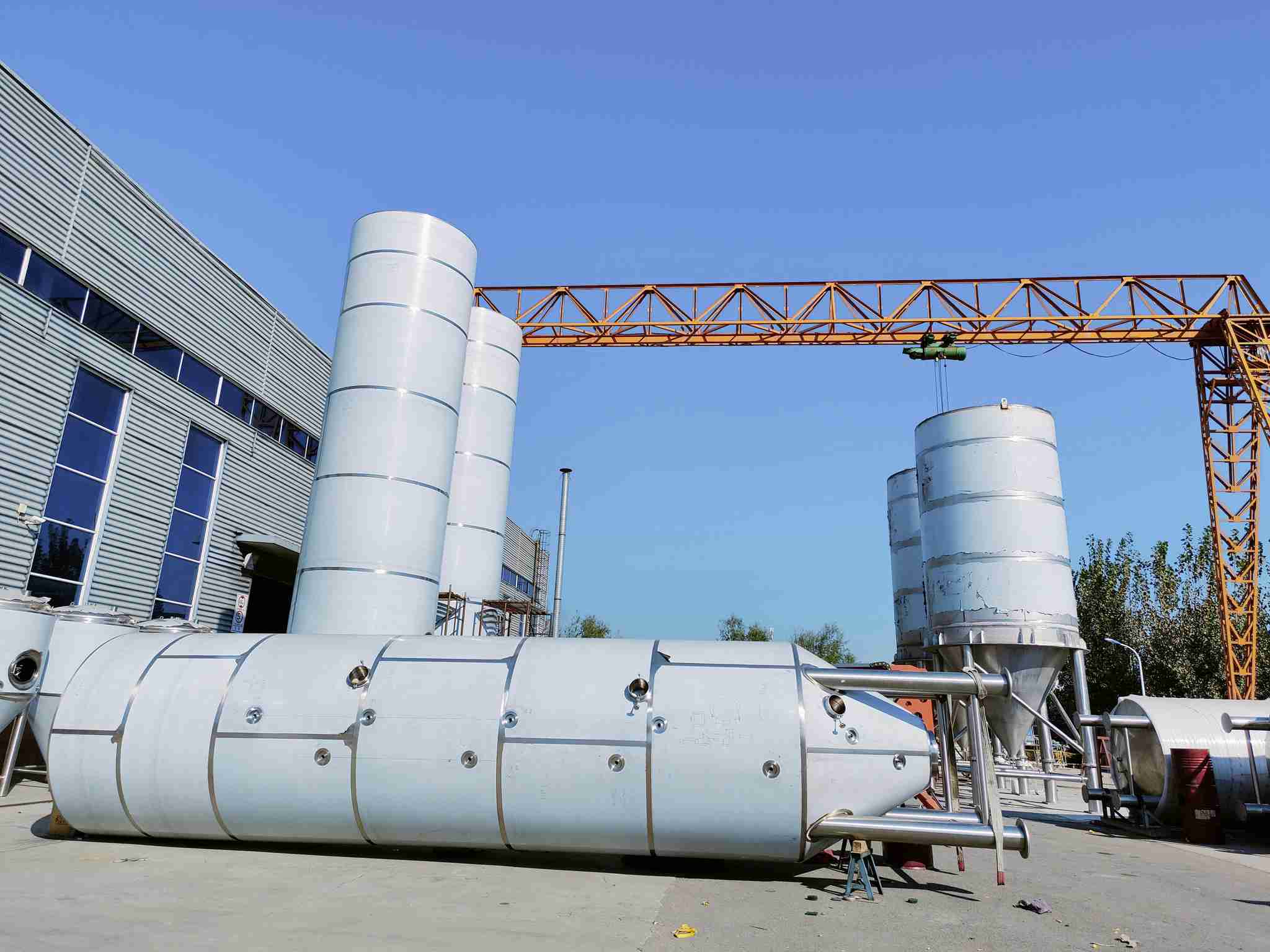

Here we’d like to share this newly finished 200HL fermentation tanks with you, if you are looking for similar size of brewery equipment for your business, feel free to contact us for more interested information and details please, Cheers!
Certainly, large-scale 200-hectoliter (200HL) fermentation tanks are commonly used in commercial breweries to accommodate significant batch sizes.


Technical Parameters for the 200HL Fermentation Tank:
♦ Function：Wort Fermentation or maturation
♦ Tank Capacity:200HL (+25% Headspace minimum)
♦ Dimension: Φ2200x10250mm (Customizable)
♦ Interior Shell: SUS304 full welded; TH=(C)5mm*(S)4mm
♦ Exterior Shell:SUS304 full welded; TH=2mm
♦ 100% TIG welding with pure argon gas shield
♦ Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional)
♦ Exterior Finish: Oil brushed finish(2B, 8K Mirror finish optional)
♦ Interior full polished to 0.2~0.4 μm without dead corner
♦ Insulation: TH=100mm with low thermal conductivity PU
♦ Cooling: 35% Glycol liquid -5℃
♦ Cooling Jacket: Dimple plate on bottom and side wall, welded without over burning
♦ Jacket test by water and gas, 5bar/75psi for 1hour, 3.5bar/52psi for 48 hours
♦ Jacket Working Pressure: < 2bar/30psi
♦ Tank leakage test by water and gas, 4bar/60psi for 1hour, 2.5bar/37.5psi for 48 hours
♦ Tank Working Pressure: ≦ 2bar/30psi
♦ Insulated conical top for outdoor
♦ Conical bottom  with 60° cone (customizable)
♦ Sanitary top mounted manhole with pressured door
♦ Top mounted double clamp 360° rotary CIP spraying ball and port, 1pc
♦ CIP arm with four-way connection and butterfly valve
♦ Mechanical safe valve PVRV 2bar/30psi on top (1bar/15psi available)
♦ Full sanitary sampling valve with EPDM seal
♦ Hydraulic shock pressure gauge on CIP arm (Diaphram type for optional)

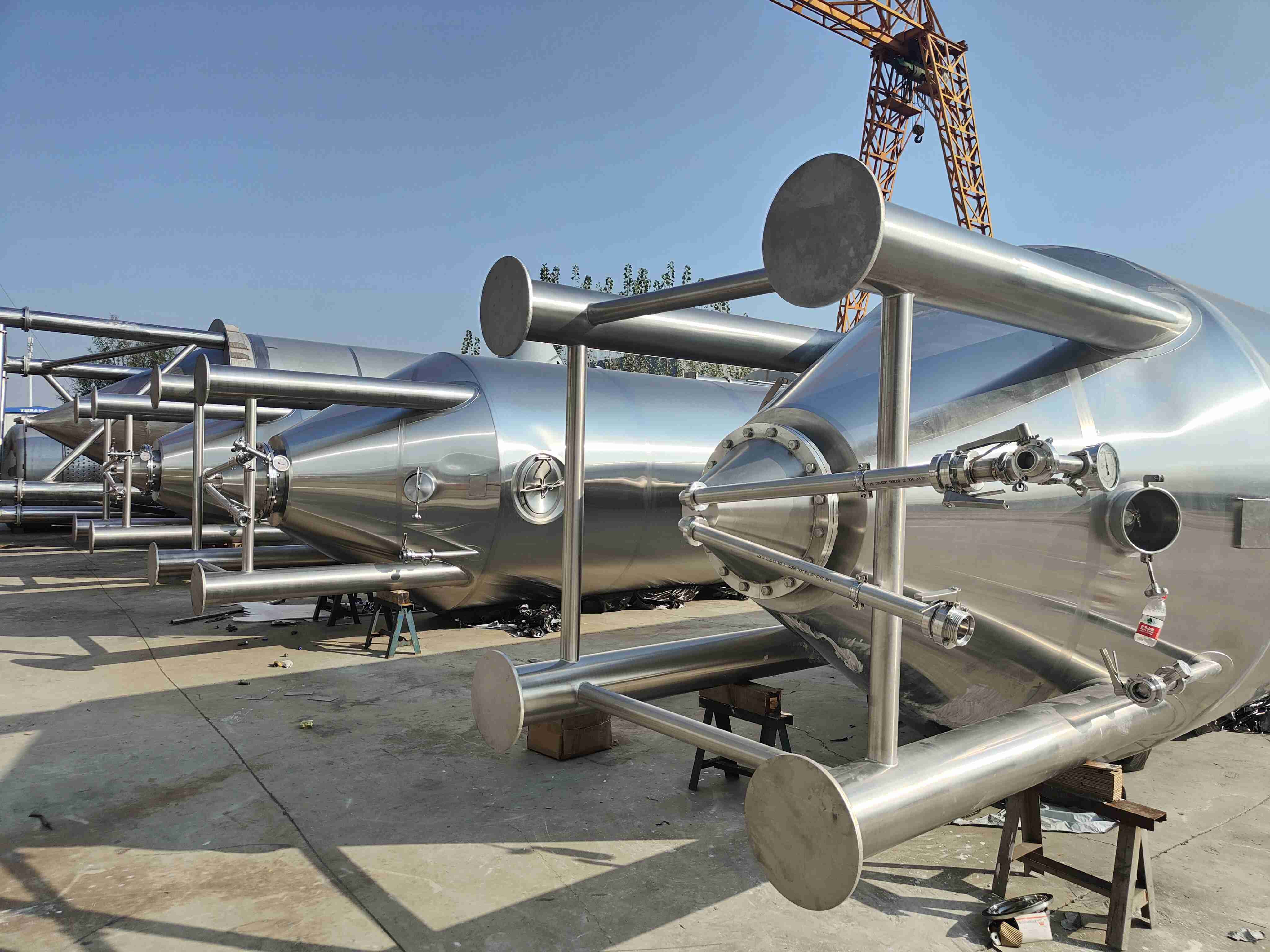

♦ Horizontal mounted rotating racking arm  and port in cone with butterfly valve
♦ Discharge arm with butterfly valve, Removable and easy to clean
♦ Sanitary welded thermowell for high accuracy temperature sensor 1pc
♦ Glycol water in/out ports bottom design, Thick wall pipe thread (Flange available)
♦ 4pcs completely SUS304 legs with braces
♦ 4 sets heavy duty foot pad with up-down and slop adjustable
♦ Complete valves, fittings and all parts, Tri clamp/DIN Union available
£ Pressure adjustable bunging valve 0.2-2.2bar for special request
£ Sanitary level tube and valves for special request
£ Carbonation port with stone for special request
£ High and low level sensor NEGELE for special request
£ Empty level switch NEGELE for special request
£ Pressure transmitter E+H for level monitor as optional



Your journey to brewing excellence is our top priority. We offer comprehensive customer support, from seamless installation to thorough staff training and ongoing maintenance services. Our team of experts stands by your side to ensure you're always one step ahead in the brewing world.

Other configurations and more details to be discussed to meet your personal demands and special requests, we shall be honored to support you build your brewery dream in any way we can.
