Please allow me to share the 1000L Fermentation Tanks with you.

As one of the essential parts of the beer brewing process, the quality and details of fermentation tanks have always been attached great importance by us. Today let me introduce our fermenters to you by taking example of this 1000L fermentation tank, hope this can help you get a better understanding of our tanks and fermentation tanks as well.

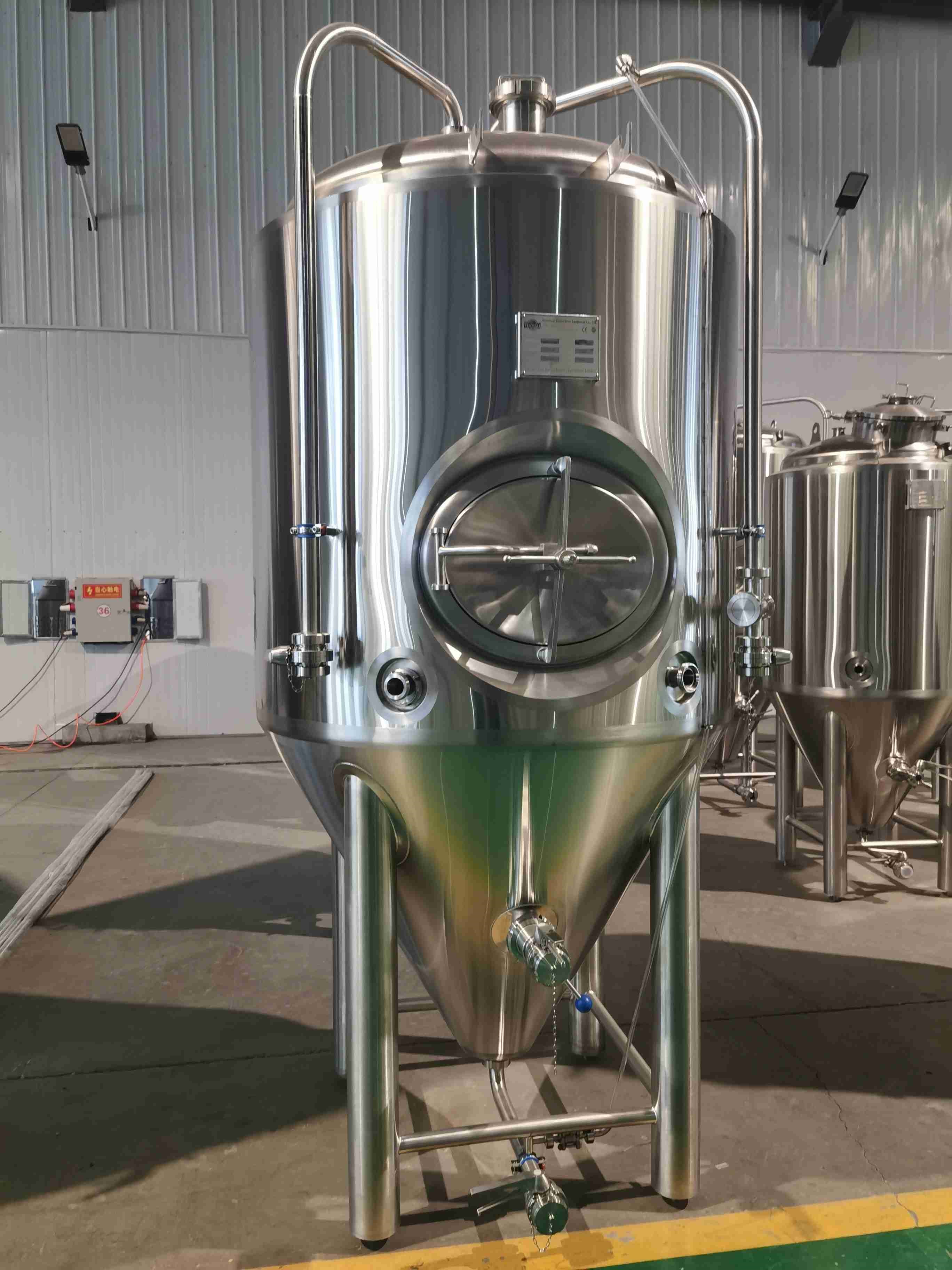

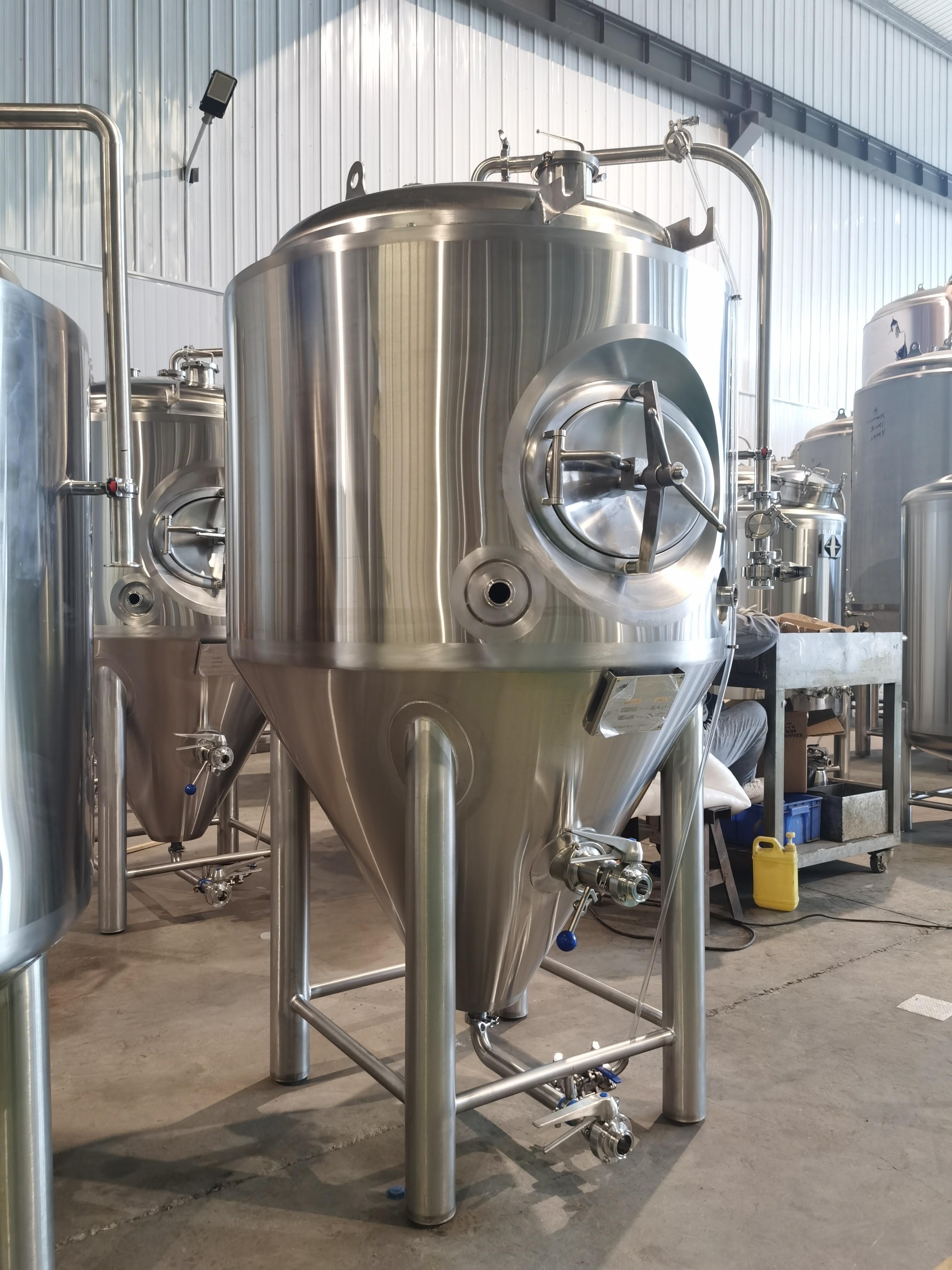

Details and Configurations of the 1000L fermentation tank:
Interior shell: SUS304 full welded; TH=3mm;
Exterior shell: SUS304 full welded; TH=2mm;
Insulation: TH=80mm with low thermal conductivity PU;
Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional);
Exterior Finish: Oil brushed finish (2B, 8K Mirror finish optional);
Interior full polished to 0.2~0.4 μm without dead corner;
100% TIG welding with pure argon gas shield;
Cooling Jacket: Dimple plate on bottom and side wall, welded without over burning;
Jacket test after production by water and gas, 5bar/75psi for 1hour, 3.5bar/52psi for 48 hours;
Horizontal mounted rotating racking arm and port in cone with butterfly valve;
Discharge arm with butterfly valve, Removable and easy to clean;
Glycol water in/out port on side wall, thick wall pipe thread (Top or bottom design available);
4 sets heavy duty foot pad with up-down and slop adjustable.

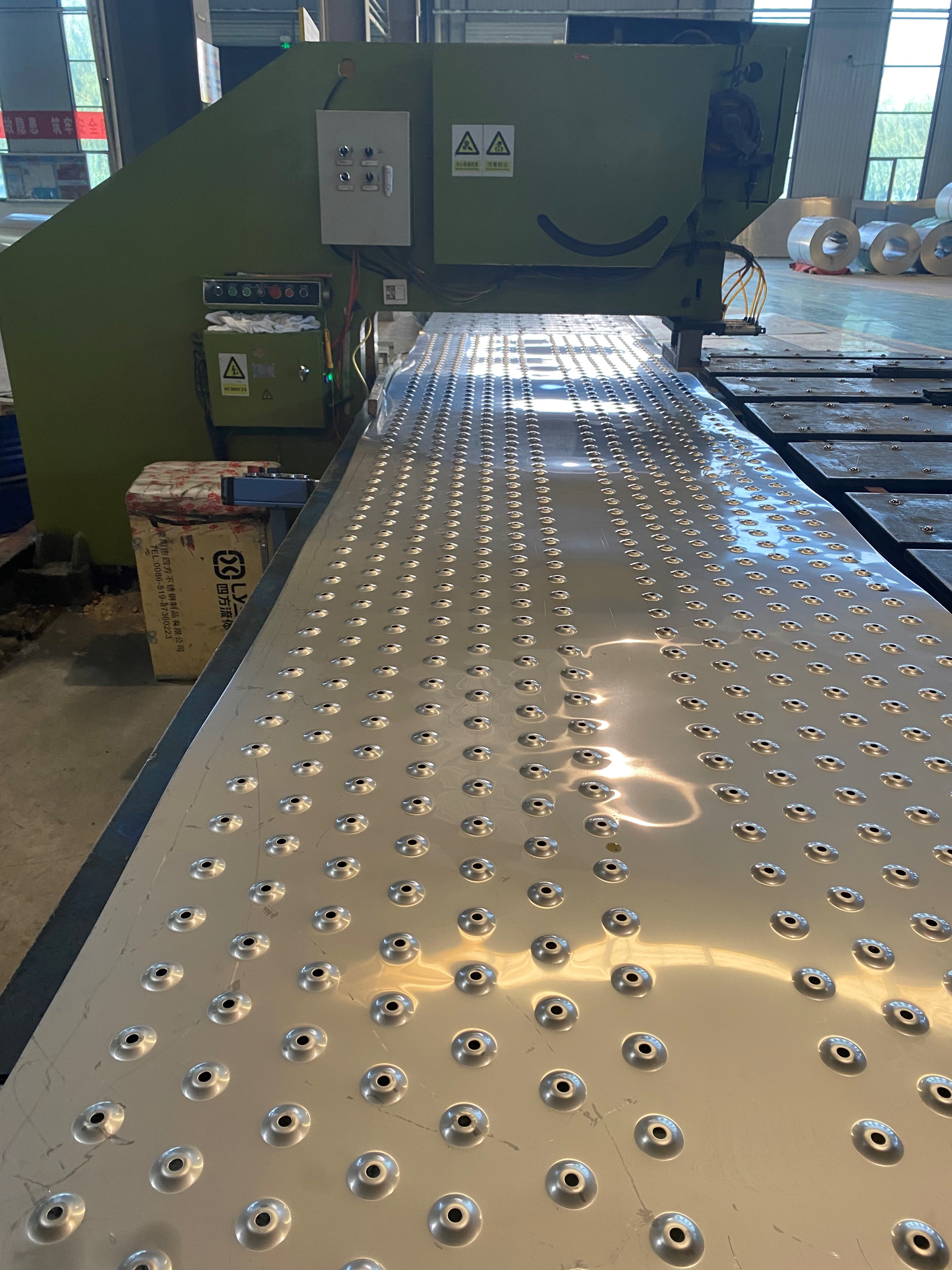

Every single holes of the dimple jacket is welded individually to ensure the smooth flowing of the glycol water.

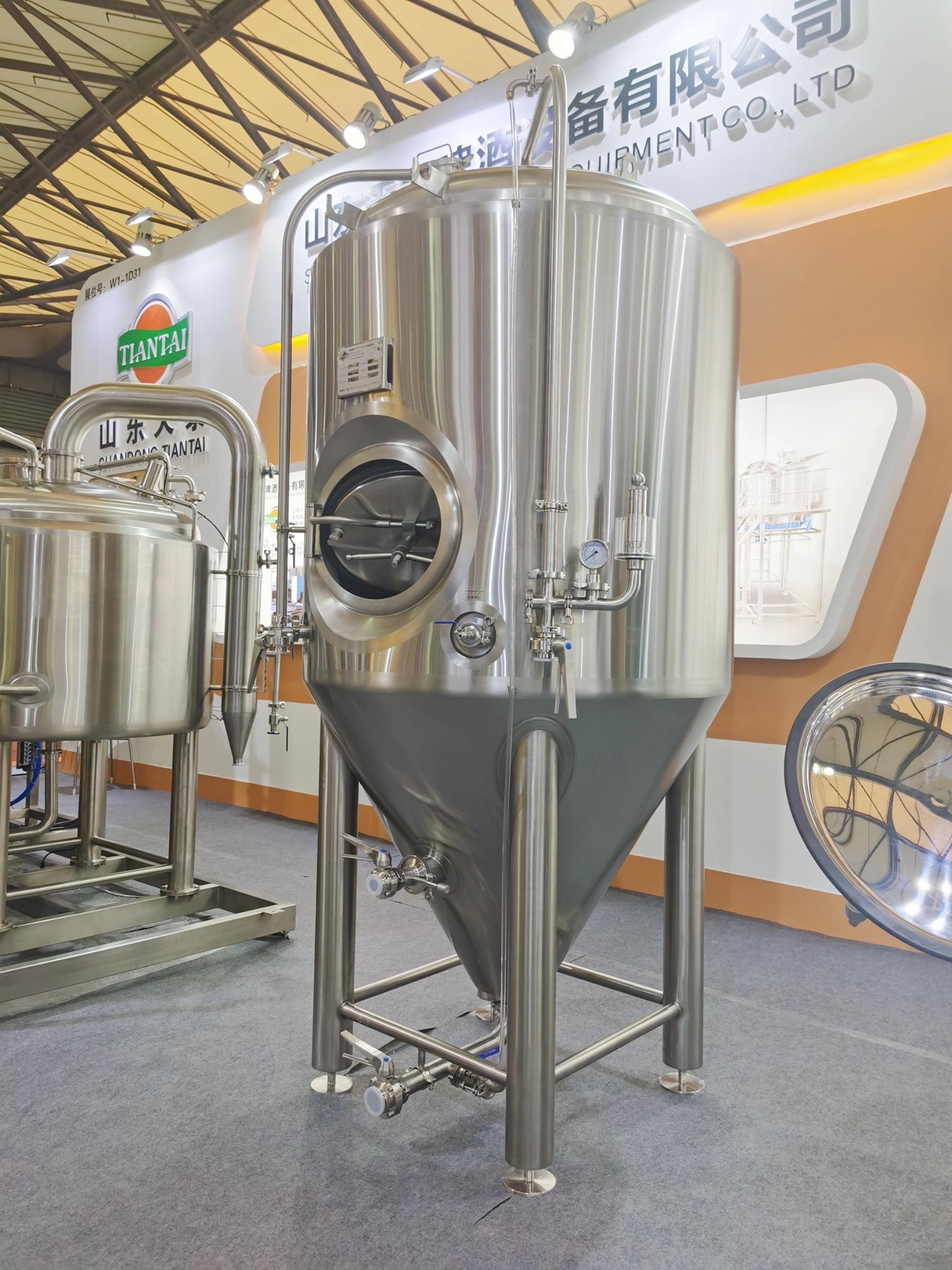

For same capacities of fermentation tanks, the shape could be designed into different styles like a slender and higher one or a stout and shorter one like the one in the above photo. Or we could also make the tanks shorter through the way of reducing the legs if there are height limits of the room ceiling.

Other configurations and details to be discussed to meet your personal demands and special requests, we shall be honored to support you build your brewery dream in any way we can.
