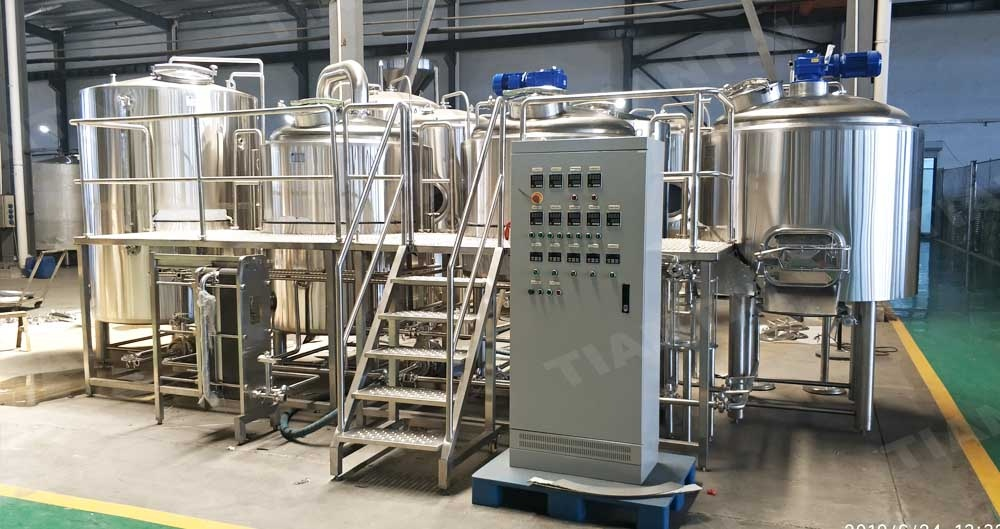

Please allow me to share this set of 10HL Three Vessel Brewery Equipment for one of our customer in Chile with you by some descriptions and photos in below,

First please let me introduce the main configurations included in this set of machine to you to help you get a main idea of the equipment combinations:
Part 1: Malt Milling Unit
1.1 Malt Miller [300~500kg/hr]
Part 2: 10HL Brewhouse
2.1 10HL Mash/Lauter Tun
2.2 10HL Kettle/Whirlpool Tun
2.3 20HL Hot Water Tank
2.4 Non-slip Work Platform
2.5 Sanitary Centrifugal Pump [LYSF]
2.6 Sanitary Piping
2.7 Valves and Fittings
2.8 Manual Water Mixing Station
2.9 Manual Wort Cooling Station
2.10 Pipeline Instrument Sensor
2.11 Glass Manhole (Logo customized, fully strengthened glass, large size easy access to the tank, stainless steel locking handle)
2.12 Wort Balance Column
2.13 20M2 Heat Exchanger [304SS NANHUA] (complies with highest sanitary processing standards)
2.14 Pipe Filter
2.15 Wort Aeration Station
2.16 50L Yeast Feeder
Part 3: Fermentation Unit:
3.1 10HL/20HL Fermentation Tank/Unitank
Part 4: Glycol Cooling Unit:
4.1 2000L Glycol Water Tank
4.2 8HP Glycol Water Chiller
4.3 Glycol Water Pipeline
Part 5: Electric Control Unit:
5.1 Brewery Instrumental Control Cabinet
5.2 Fermentation Control Cabinet
Part 6: 100L Portable CIP Cart [Two Tanks]
6.1 100L Single Wall Caustic Tank
6.2 100L Single Wall Acid Tank
6.3 Sanitary Centrifugal Pump
6.4 Sanitary Piping
6.5 Valves and Fittings
6.6 Portable Trolly
6.7 CIP Controling Cabinet

With all these years of accumulated experiences by helping our customers build their breweries, we’ve formed a mature service system to better support our clients with their project, including a complete before and after-sales services, turnkey solutions from manufacture to maintenance and other services needed in the whole process. For example, from the equipment side, both the layout and configurations of the machine could be custom-made according to the real conditions to make sure the machine will well-fitted in the venue in the future.

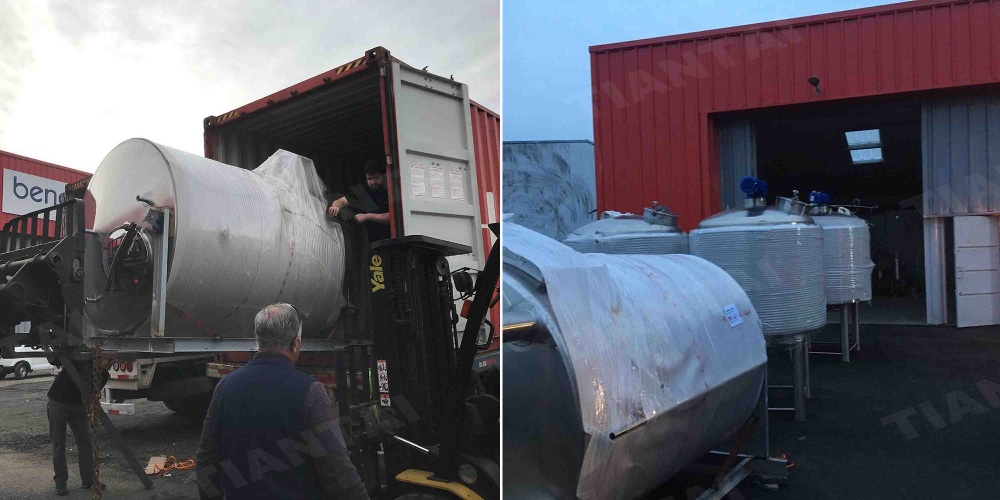

For this size of tanks, we usually use this kind of frame to ensure the smooth transport and safe shipping of the cargoes. After a long travel, the tanks are finally moved into the site successfully in the photos.
Regarding the installation, we usually will provide all sets of instructions including videos, manuals and photos to help our customers install the machine, and there are also numbers marked on the accessories for clear checking. Of course we could also send our engineers to you if you prefer.
If you are looking for such a set of beer brewing machine, please feel free to contact us for more interested ideas and information. Other configurations and details to be discussed to meet your personal demands and special requests, we shall be honored to support you build your brewery dream in any way we can.
