Hello! This is Tiantai Brewery Equipment Company.

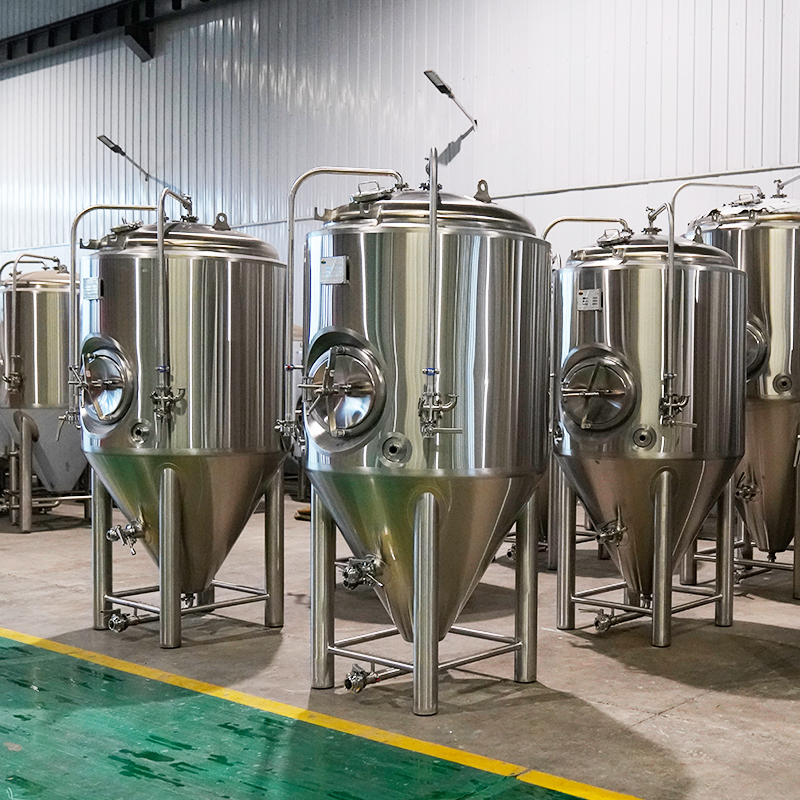

Made of high quality of stainless steel 304 or 316 or red copper in lesser scenarios, all sizes of standard/customized fermentation tanks are available to be manufactured to meet your demands.

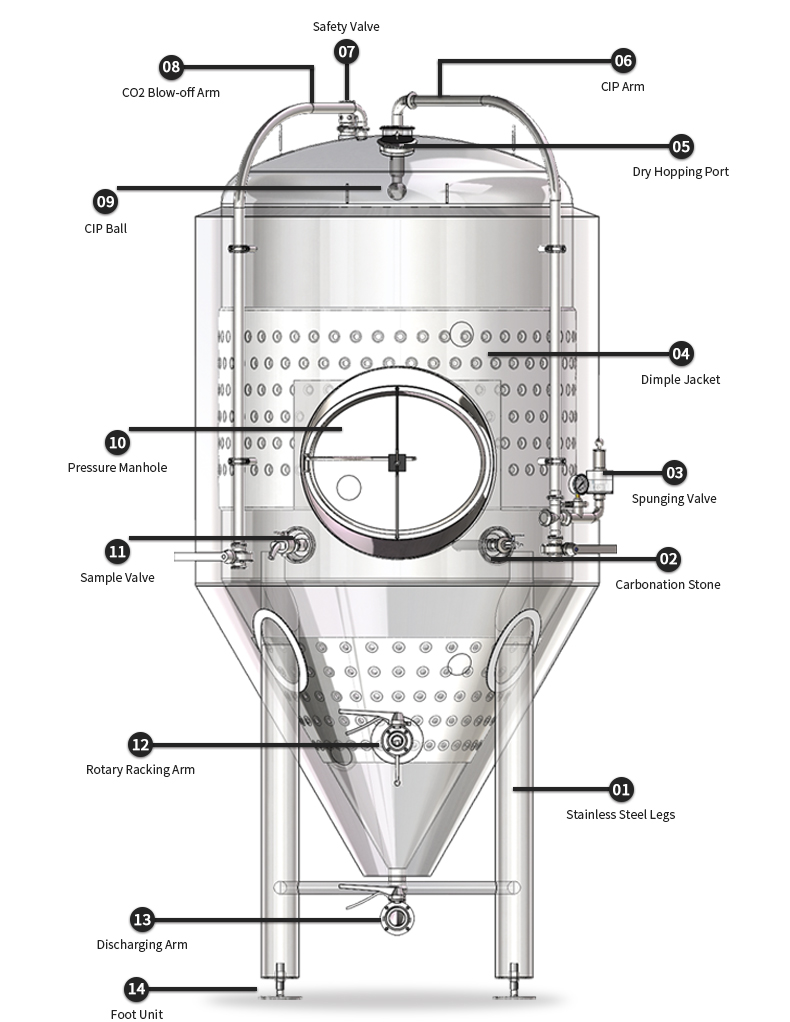

Main components included in the standard conical fermentation tank:

Main features of the fermenters:
* High Quality Material: all materials used for the tanks are belong to high level sus 304 or 316 to make sure the quality and enduring using;
* Dry Hopping Port: horizontal level port is available to be customized;
* CIP Ball: 360°spray ball installed to make sure cleaning without dead corner;

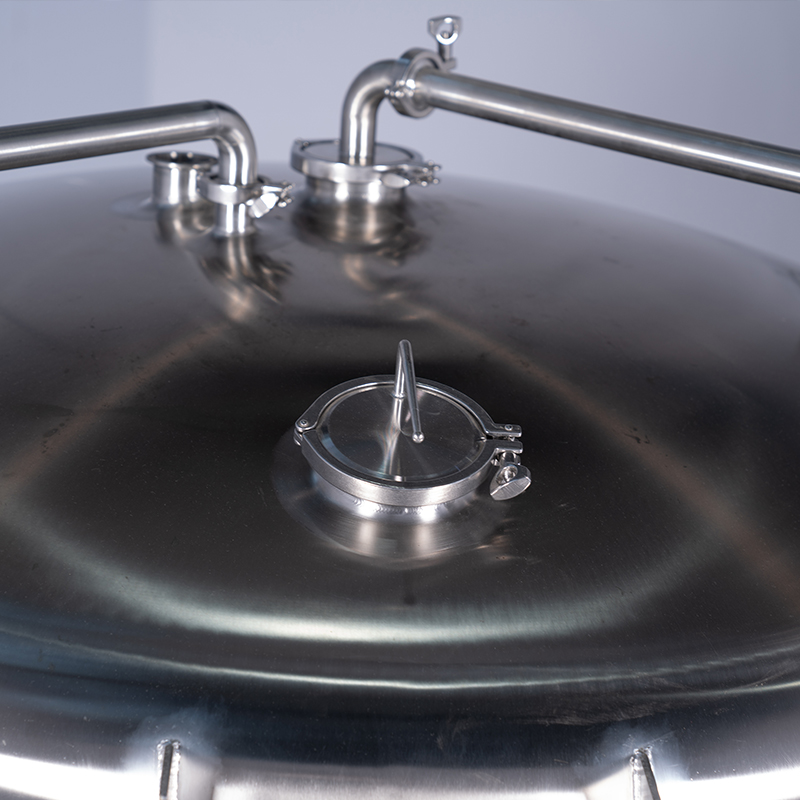

* Pressure Manhole: robust oval manhole and high level of EPDM seals equipped to make sure the high pressure.
* Rotary Racking Arm: new upgraded rotating racking arm with smoothly operating.
* Foot Unit: adjustable foot bolts and pad provided to adjust leveling on uneven ground or fine height adjusting.
* Carbonation Stone/Spunding Valve/Level Indicator Provided as requests.

Tank Details:

Auto welding line.

Dry hopping port with pressurized dropping tank supplied.

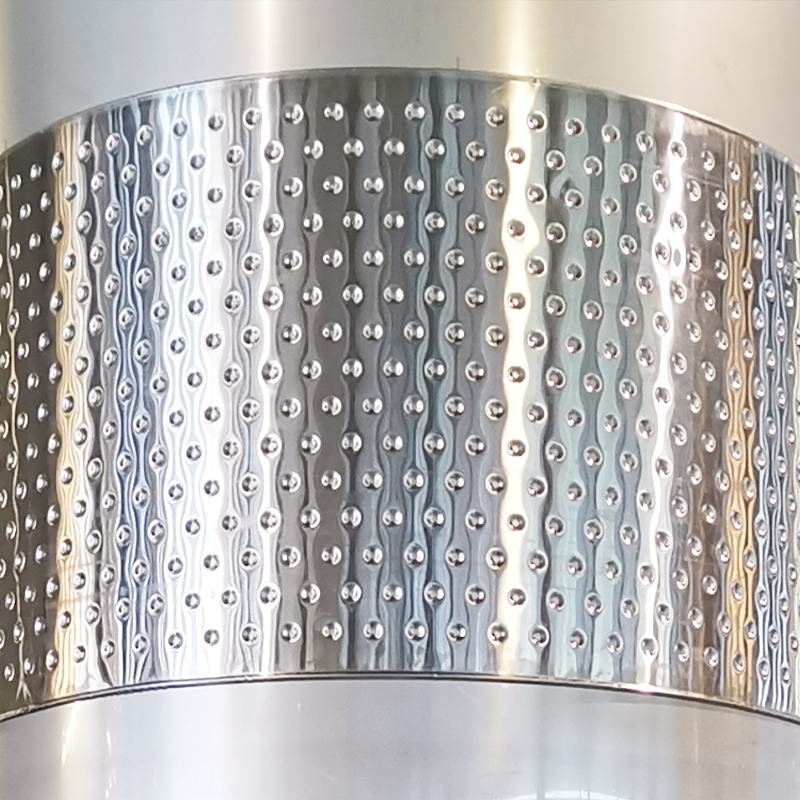

Each dimple jacket are hand-welded by our workers to make sure no leakage happens during later using.

Completely acid washing and passivation for interior finish and oil brushed for exterior finishing.

Tri-clamp or GIN connection types provided for options.
Other specifications of the tanks:
* Dimension: φ1060x2580mm (Customizable).
The dimensions of the tank are available to be customized based on requirements like ceiling height or room spaces.

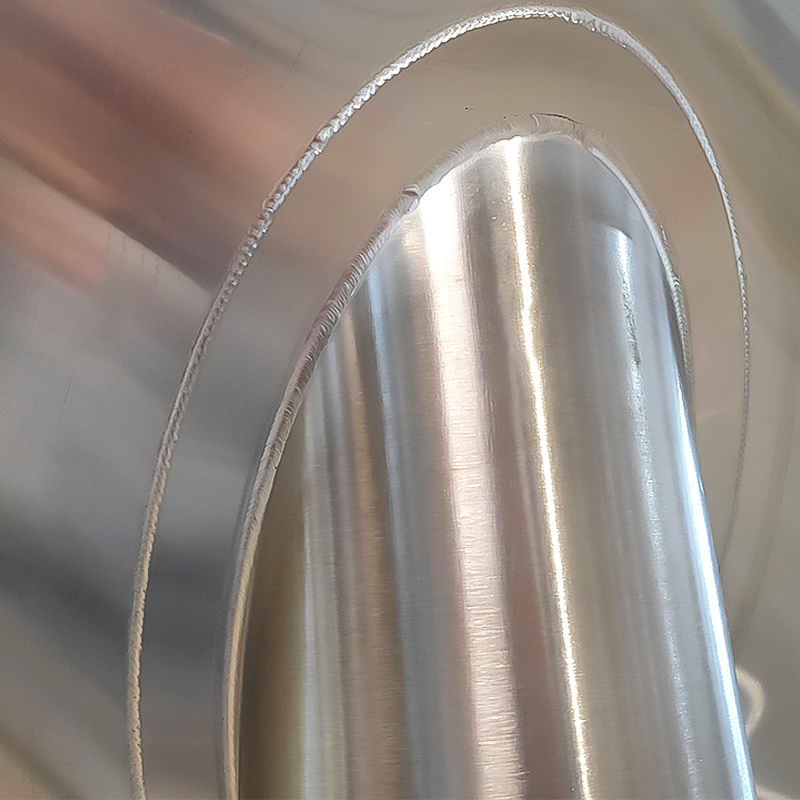

* 100% TIG welding with pure argon gas shield.
* Insulation: TH=80mm with low thermal conductivity PU.
* Tank Working Pressure: 2bar/30psi.
* Mechanical safe valve PVRV 2bar/30psi on top (1bar/15psi available).

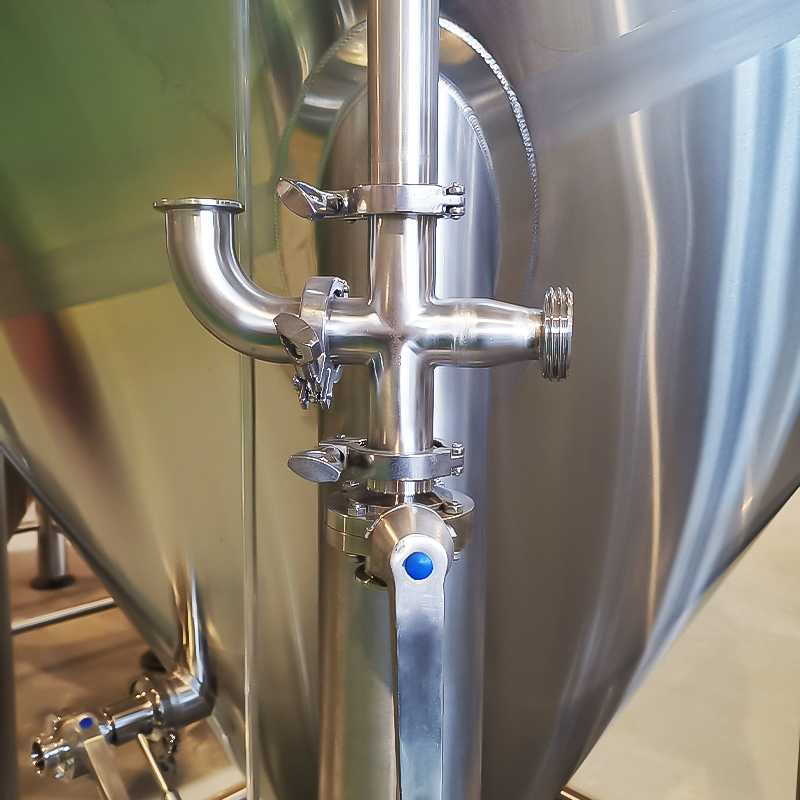

* Full sanitary sampling valve with EPDM seal.
* Hydraulic shock pressure gauge on CIP arm （Diaphram type for optional).
* Sanitary welded thermowell for high accuracy temperature sensor 1pcs.
* Discharge arm with butterfly valve, Removable and easy to clean.

Turnkey solutions, customize services or any other technical assistance are all available to be provided to meet your requirements, just feel free to let us know your preferred ideas about your project and we’d be more than happy to work together with you finding a suitable solution to help your project running well.
