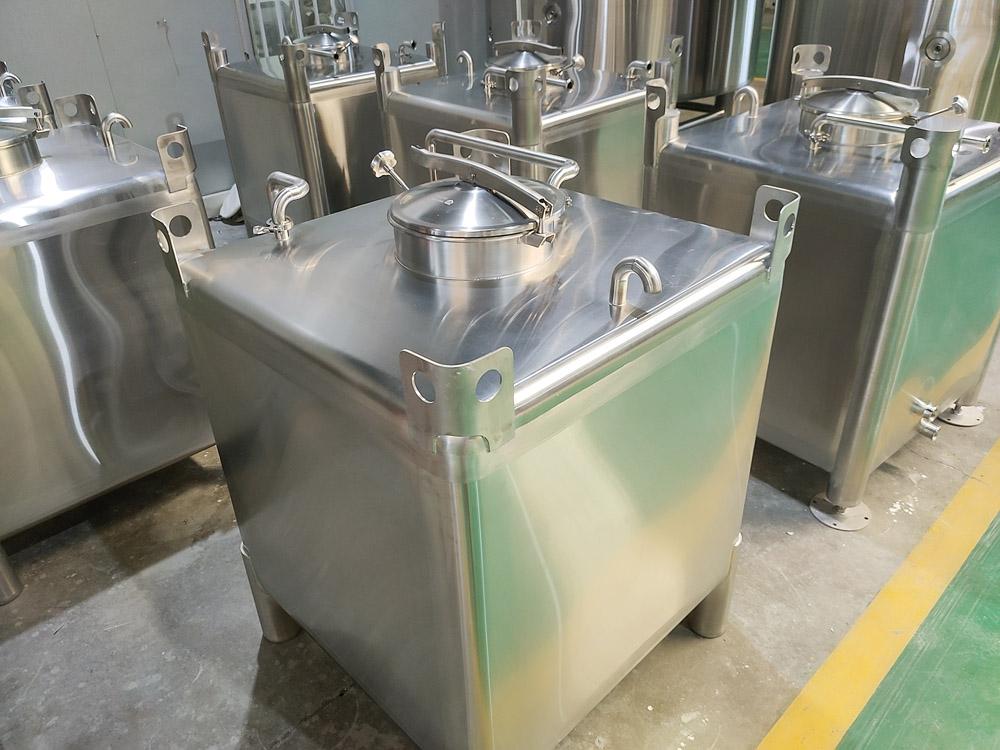

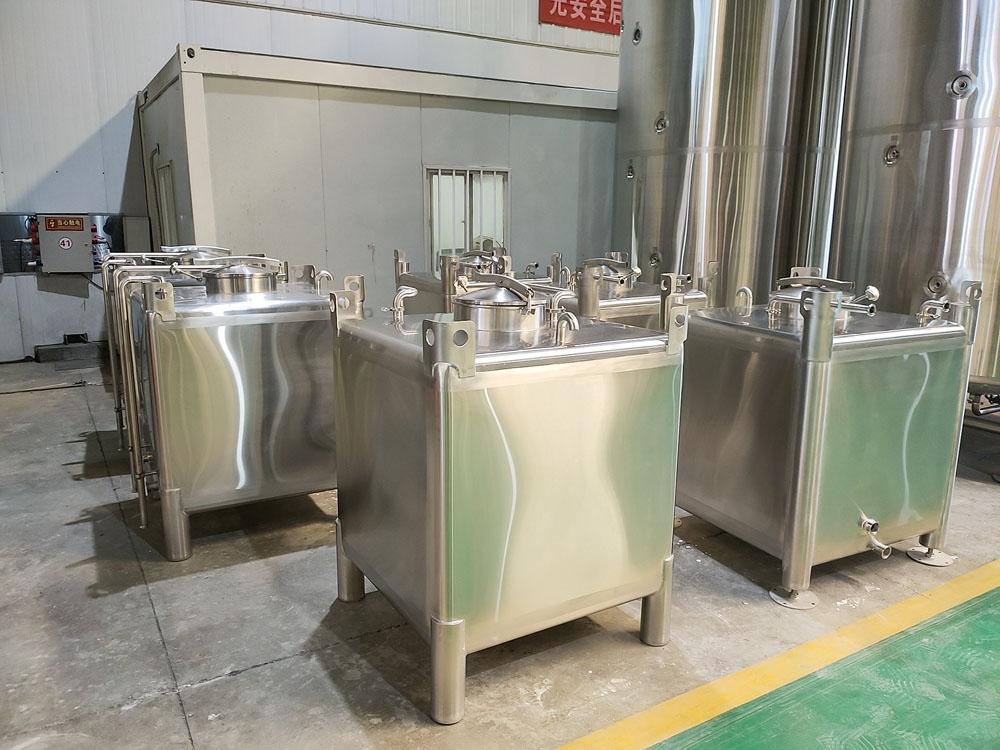

Cubic tanks are used to store spirits. Deciding the size of a spirits storage tank in a distillery involves evaluating several key factors. These include production capacity, storage needs, available space, and future growth plans etc.

Common Tank Sizes in Distilleries:
Small Distilleries: Tanks between 500L to 2,000L are typical for small-scale operations.
Medium Distilleries: 2,000L to 5,000L tanks are common, offering enough capacity for batch production while allowing flexibility for different products.
Large Distilleries: Tanks larger than 5,000L or even up to 10,000L or more are used for high-volume production or long-term aging of spirits like whiskey or rum.



Specification：
♦ Tank Capacity: Working Volume (+15% Headspace minimum)
♦ Tank Shell: SUS304 full welded; TH=1.5-2mm
♦ 100% TIG welding with pure argon gas shield
♦ Interior Finish: Sanitary 2B finish, Pickled and Passivated
♦ Exterior Finish: Oil brushed finish
♦ Interior full polished to 0.2~0.4 μm without dead corner
♦ Tank Working Pressure: atmospheric pressure
♦ Sanitary Top mounted manhole with door
♦ Top mounted double clamp 360° rotary CIP spraying ball and port
♦ With recirculation port on top via a TC fitting
♦ Sanitary level tube and valves
♦ Discharge arm with butterfly valve, Removable and easy to clean
♦ 4pcs completely SUS304 legs with braces
♦ 4 sets heavy duty foot pad
♦ Complete valves, fittings and all parts, Tri clamp/DIN Union available
