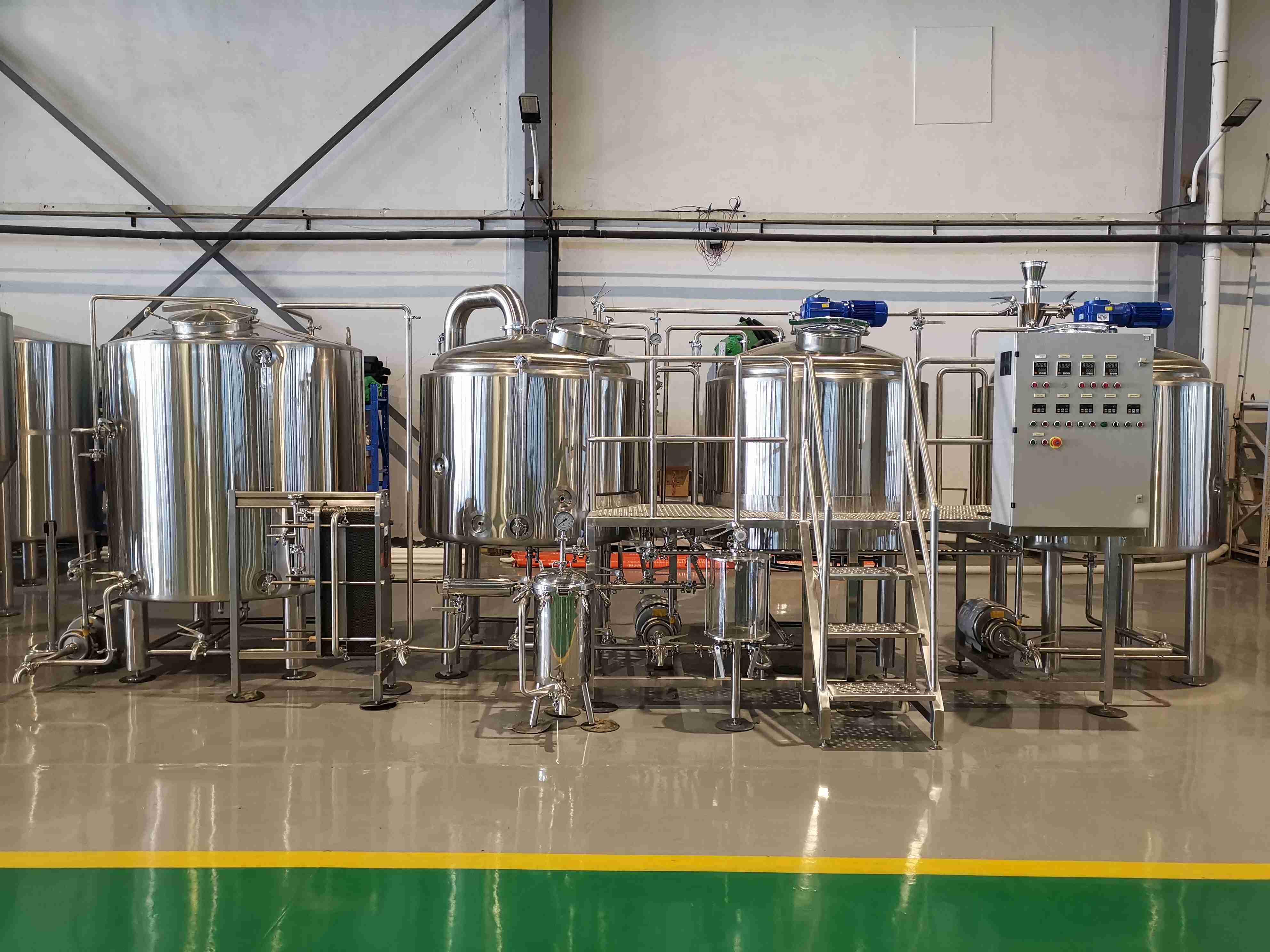

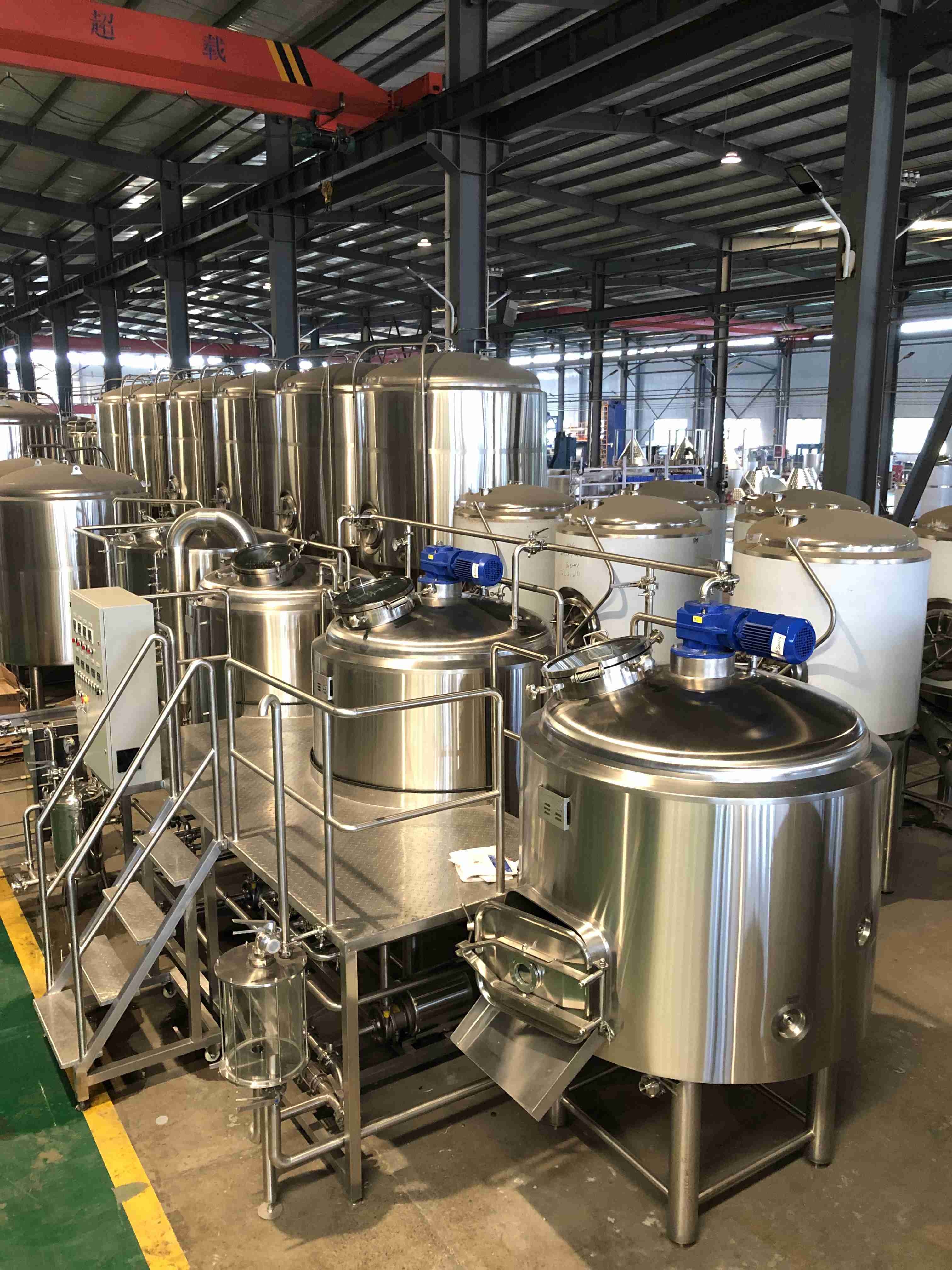

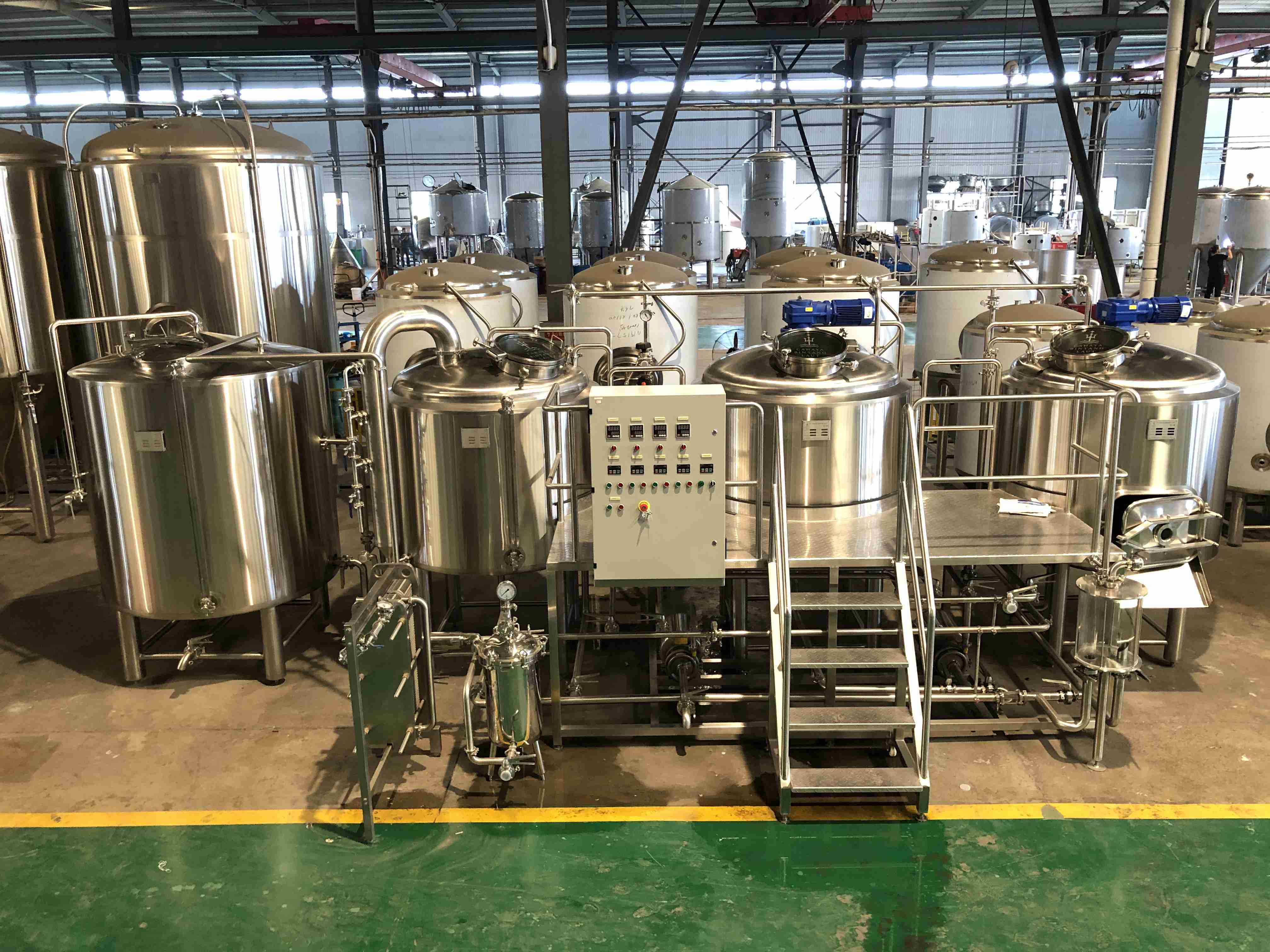

Please allow me to share this 1000L 3 Vessel Beer Brewing System with you.

As a standard size of brewery system, 1000L beer brewing equipment is always a common and popular choice among small-to-medium sizes of breweries or restaurants, brewpub, etc. And the frequently asked brewhouse combination would be the classic 2 vessel brewhouse, which combined of Mash/Lauter Tun+Kettle/Whirlpool Tun.
As a standard brewhouse combination, 2 vessel owns a lot of advantages like making the operation process simpler and more convenience for you, saving your cost by combining several functions in one tank and also make the structure more streamline to save your room, etc. Today I’d like to introduce this 3 vessel brewhouse of 1000L system for you, and the biggest advantage of this structure would be make the beer brewing process more easier for you if double or even multi-batches of beer brewing are expected often. Although its cost might be slightly higher than the 2 vessel brewhouse, it’ll improve your brewing efficiency greatly as well.

The whole system mainly includes:
Part 1: Malt Milling Unit
1.1 Malt Miller [500-800kg/hr]
Part 2: 500L Brewhouse
2.1 10HL Mash Tun
2.2 10HL Lauter Tun
2.3 10HL Kettle/Whirlpool Tun
2.4 20HL Hot Liquor Tank
2.5 Non-slip Work Platform
2.6 Sanitary Centrifugal Pump [LYSF]
2.7 Sanitary Piping
2.8 Valves and Fittings
2.9 Manual Water Mixing Station
2.10 Manual Wort Cooling Station
2.11 Pipeline Instrument Sensor
2.12 Glass Manhole (Logo customized, fully strengthened glass, large size easy access to the tank, stainless steel locking handle)
2.13 Glass Wort Grant
2.14 20M² Heat Exchanger [304SS NANHUA] (complies with highest sanitary processing standards)
2.15 Pipe Filter
2.16 Wort Aeration Station
2.17 50L Yeast Feeder
Part 3: Fermentation Unit:
3.1 10HL Fermentation Tank/Unitank
Part 4: Glycol Cooling Unit:
4.1 2000L Glycol Water Tank
4.2 5HP Glycol Water Chiller
4.3 Glycol Water Pipeline
Part 5: Electric Control Unit:
5.1 Brewery Instrumental Control Cabinet
Part 6: Portable CIP Cart:
6.1 200L Portable CIP Cart

The layout of the brewery equipment could be designed based on the floor plan or dimensions to well-fit in your venue and we could also try to take multiple measures to make the full use of your room especially for breweries who has height limit or space limit.
Other configurations and details to be discussed to meet your personal demands and special requests, we shall be honored to support you build your brewery dream in any way we can.

Please feel free to contact me for any interested details!
