Hey there!
Welcome to view our brewery equipment details,
This is Sharon here with project manager from Tiantai Brewery Company.

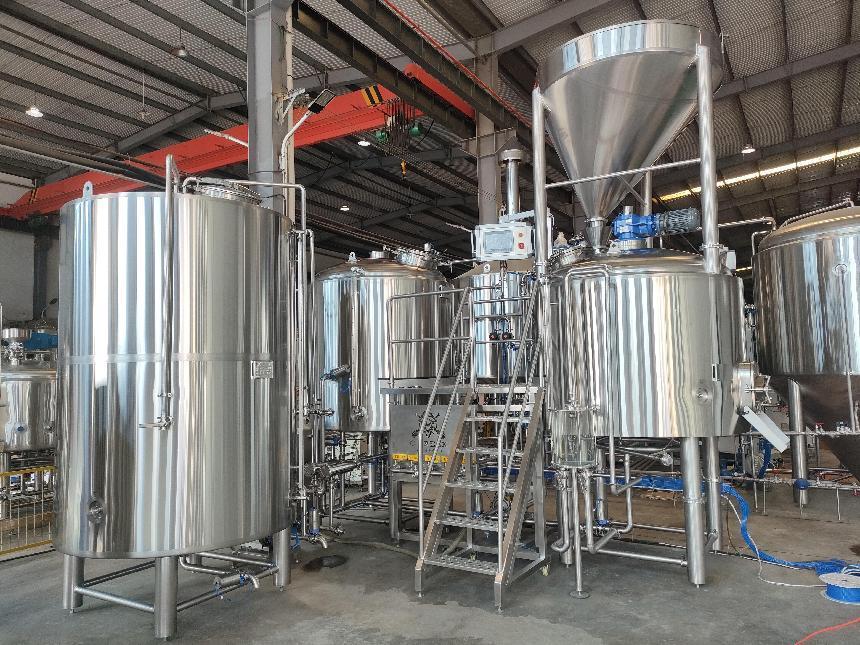

Here we’d love to introduce you this set of 15bbl brewery project completed recently, this is a set of 15bbl 2-vessel brewhouse with customized plc controlling auto brewing project, if you are looking for similar size of equipment, feel free to reach out to us anytime for more interested information please, we’d be more than happy to work with you finding a suitable solution to help your project running well, cheers!

The brewhouse layout is available to be designed and customized based on your venue spot or location considering the operating preferences, room ceiling height, etc.

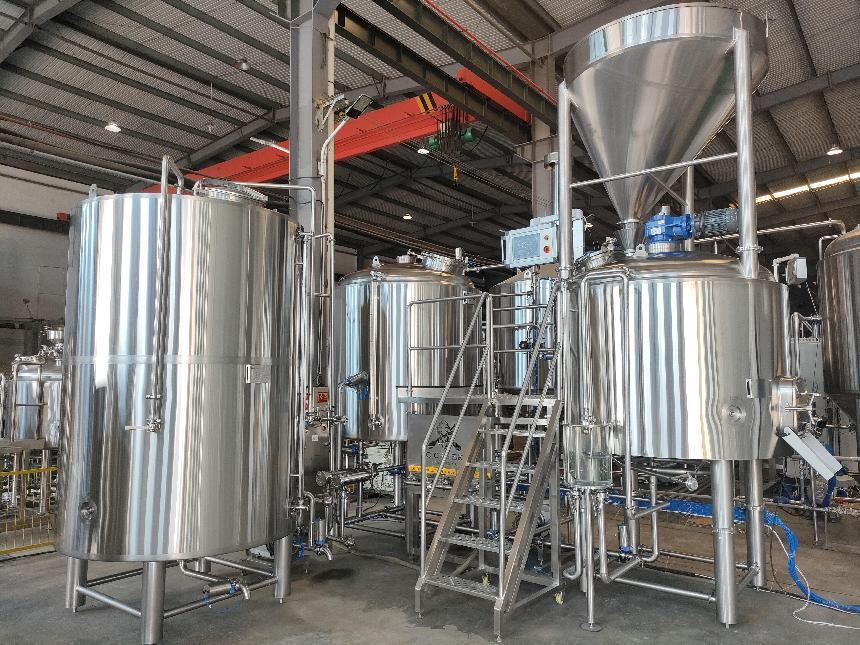

Except for the triangle structure showed in the above photo, there are usually the rectangular, linear, square or multi-tiered designs provided.
If you’ve already found the space or location for your project, feel free to send the floor plan to us and we’ll help to design the construction plan for your better information of the total ideas of your system if you like.

Main configurations included in this 15bbl system:
1) Malt Milling Part:
Malt Mill [1000-1200kg/hr]
Flexible Auger
Milling Control Cabinet
1200L Grist Case
2) 15BBL Brewhouse Part:
15BBL Mash/Lauter Tun
15BBL Kettle/Whirlpool Tun
30BBL Hot Water Tank
Non-Slip Working Platform
Sanitary Centrifugal Pump
Sanitary Piping
Valves and Fittings
Manual Water Mixing Station
Manual Wort Cooling Station
Pipeline Instrument Sensor
25L Glass Wort Grant
20M2 Heat Exchanger
Pipe Filter
Wort Aeration Station
30L Yeast Feeder
Pneumatic Valves [Piping, CIP Manifold with Manual Valves]
3) Fermentation Part:
30BBL Fermentation Tanks
5BBL Fermentation Tanks
Bunging Valves for FV
30BBL Bright Beer Tank
4) Electric Control Part:

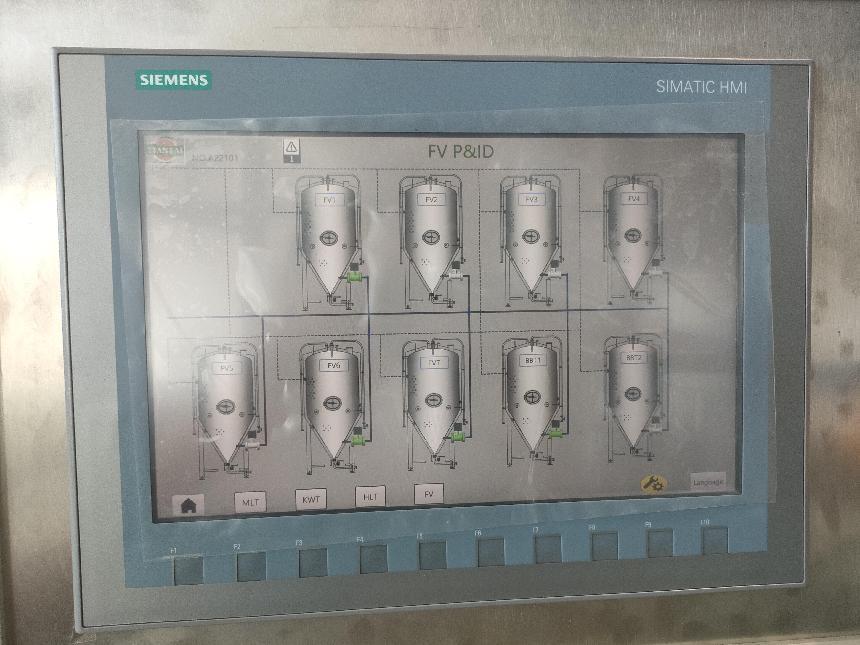

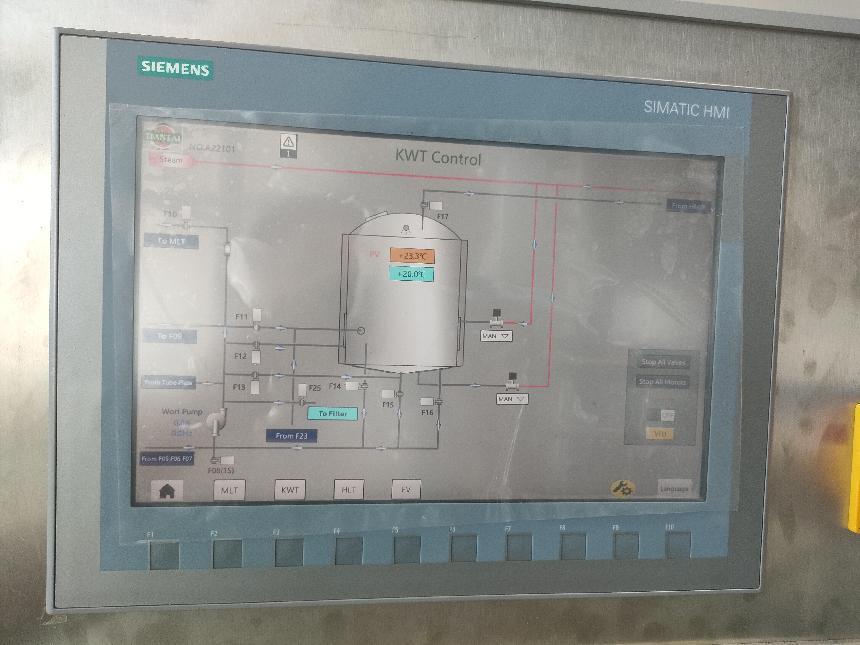

PLC Control Cabinet for Brewhouse and FV
(Separated Touch Screen/Siemens PLC and Touch Screen)
5) 200L CIP Plant Part:
200L Single Wall Caustic Tank
200L Single Wall Acid Tank
Sanitary Centrifugal Pump
Sanitary Piping
Portable Trolly
CIP Controlling Cabinet

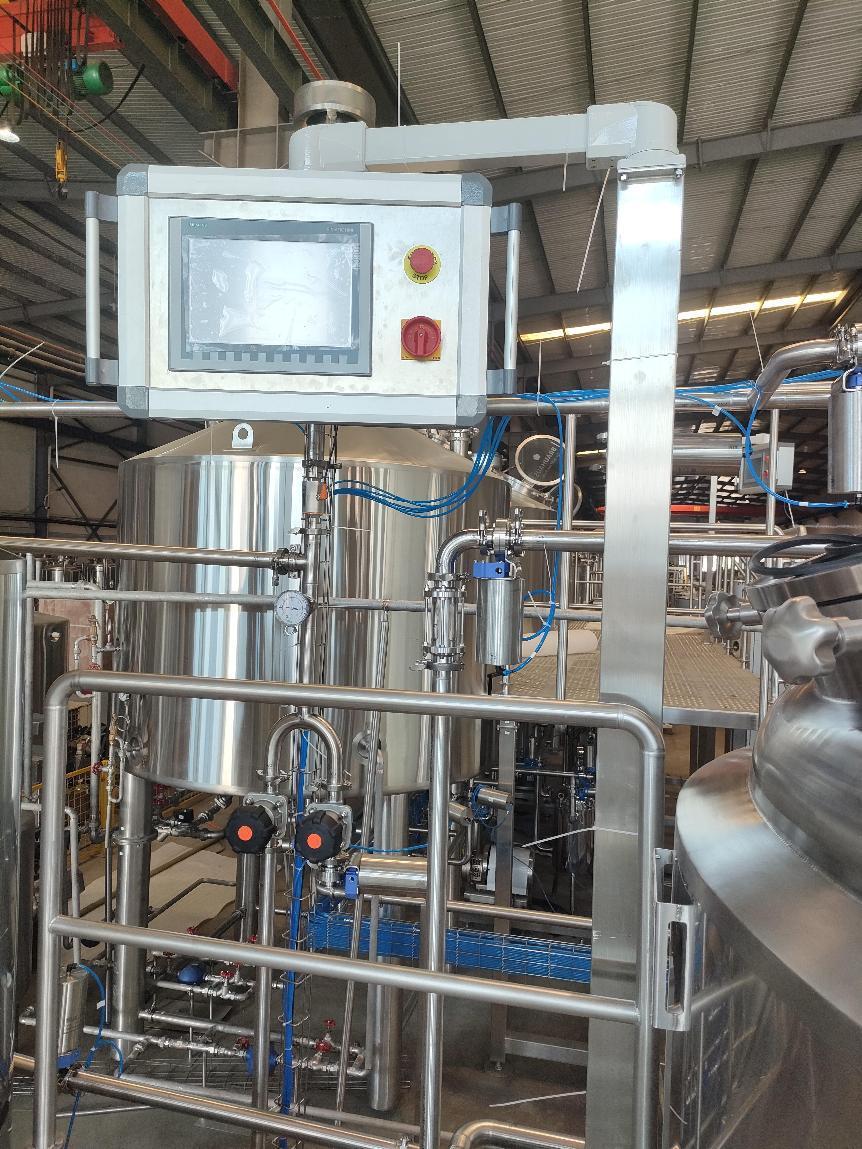

Separated touch screen controlling panel equipped based on requests.


Siemens touch screen configured as standard.
Turnkey solutions available to be provided for all size of brewing project from consulting, designing, configurations confirming, manufacturing, pre-testing to delivering, installing as well as maintaining. Feel free to drop us an email back for any more interested equipment or project information.

Many thanks for your interests in our products and wish you all a prosperous business!
