Here we’d like to share this set of newly finished 200L fermentation tank with you. The nano size of fermenters like 100L, 200L and 300L are popularly used in craft breweries for small batches of beer brewing. If you are looking for similar size of brewery equipment for your business, feel free to contact us for more interested information and details please, Cheers!

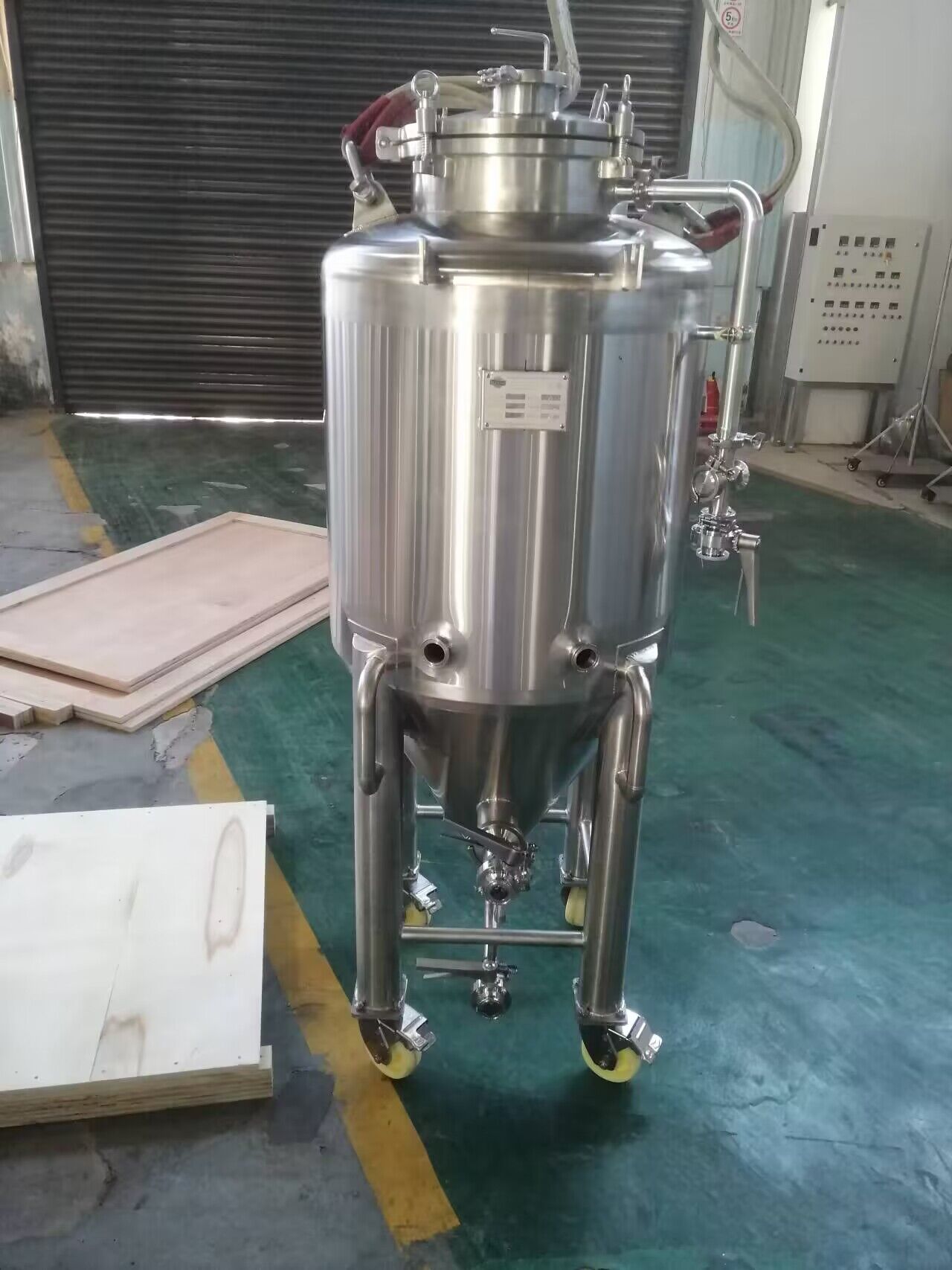

For this nano size of fermenters, wheels are available to be customized for convenience of moving, as you may noticed from the photo, handles are also configured to help with pushing.

Top mounted manholes as standard, dry hopping port equipped to realize dropping hops.

5L dry hopping tank with valves connected to fermenter directly.
Other configuration details included for this tank:
★Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional)
★Exterior Finish: Oil brushed finish(2B, 8K Mirror finish optional)
★Interior full polished to 0.2~0.4 μm without dead corner
★Tank leakage test by water and gas, 4bar/60psi for 1hour, 2.5bar/37.5psi for 48 hours
★Tank Working Pressure: ≦ 2bar/30psi
★Conical bottom  with 60° cone (customizable)
★Sanitary top mounted oval manhole with pressured door
★Top mounted double clamp 360° rotary CIP spraying ball and port, 1pcs
★CIP arm with four-way connection and butterfly valve
★CO2 blow-off arm with butterfly valve (Removable)
★Mechanical safe valve PVRV 2bar/30psi on top (1bar/15psi available)
★Full sanitary sampling valve with EPDM seal
★Hydraulic shock pressure gauge on CIP arm (Diaphram type for optional)
★Horizontal mounted rotating racking arm  and port in cone with butterfly valve
★Discharge arm with butterfly valve, Removable and easy to clean
★Temperature gauge equipped
★4 sets heavy duty foot pad with up-down and slop adjustable
★Complete valves, fittings and all parts, Tri clamp/DIN Union available
★Pressure adjustable bunging valve 0.2-2.2bar as request

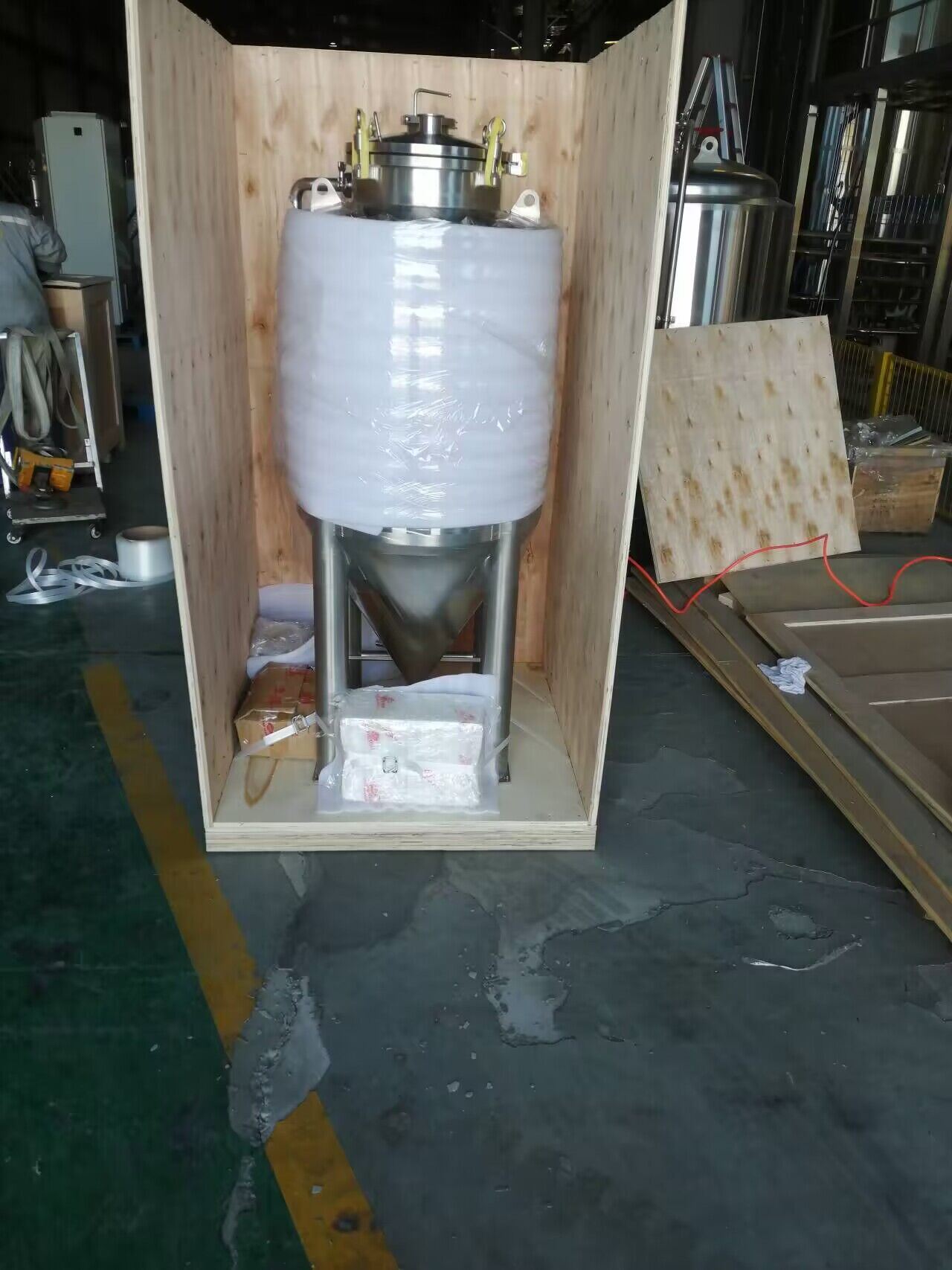

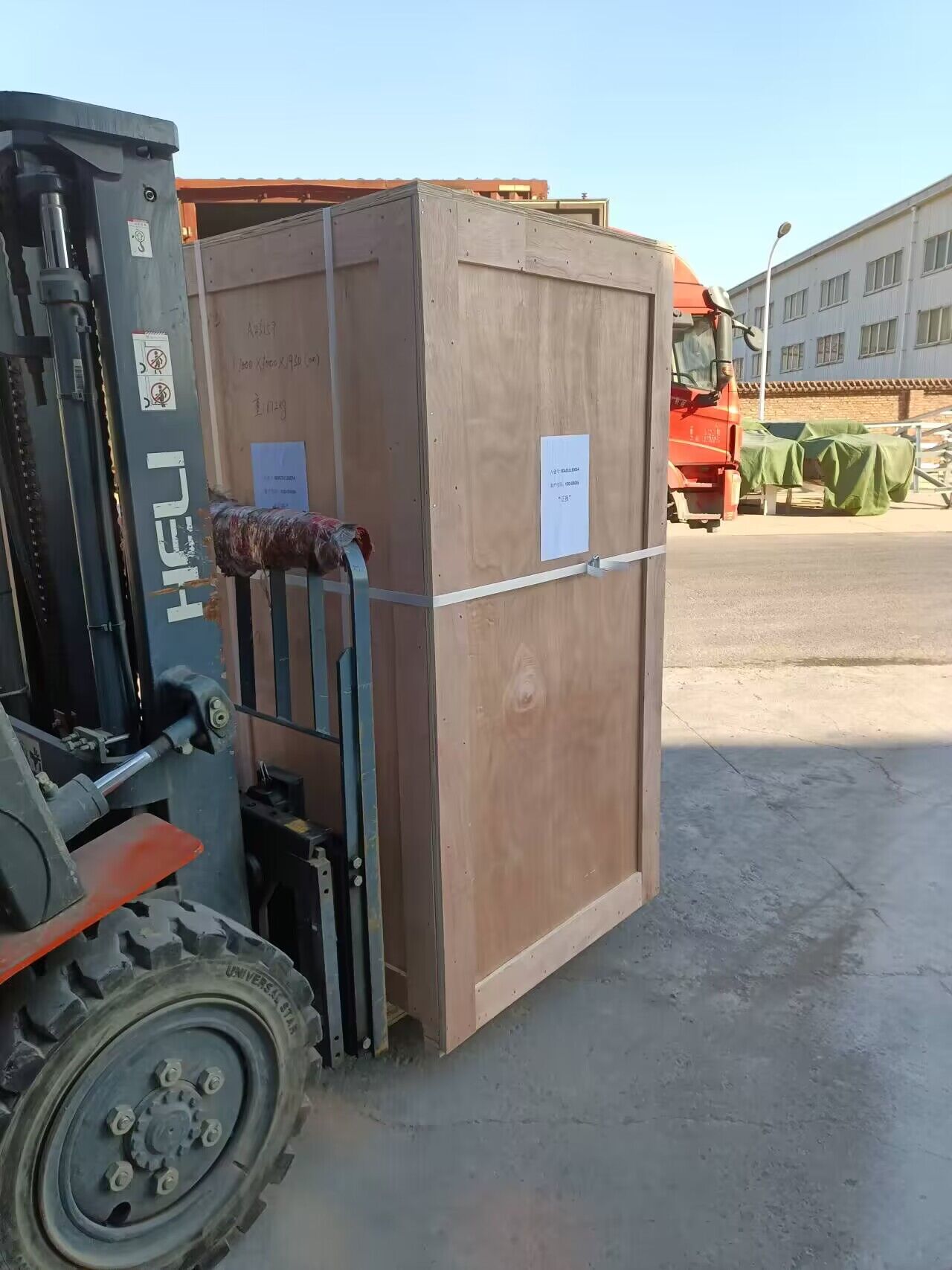

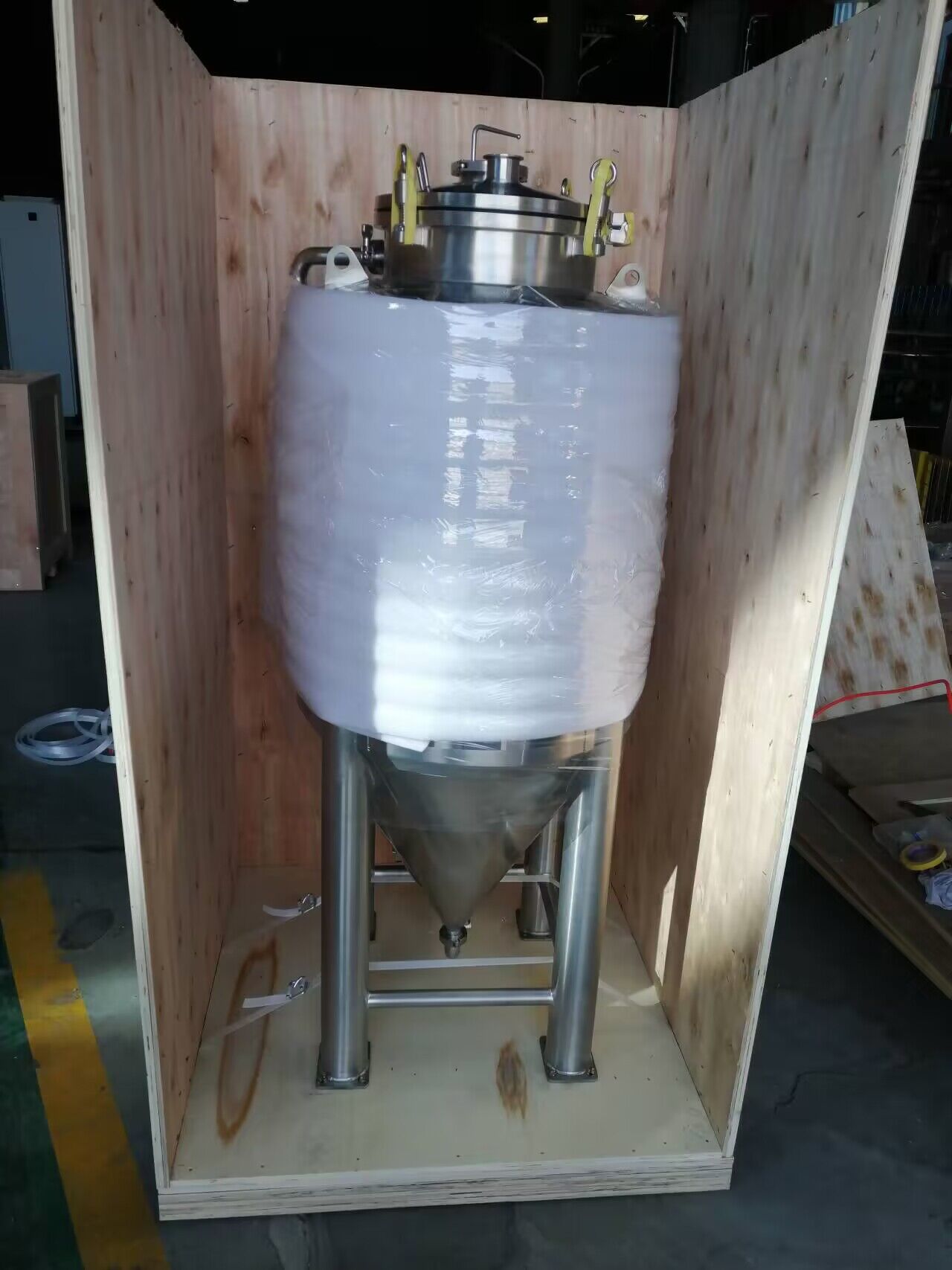

Wooden packages with LCL services to reduce shipping cost for single tanks.
Other configurations and more details to be discussed to meet your personal demands and special requests, we shall be honored to support you build your brewery dream in any way we can.
