Please allow me to share this 300L Portable Beer Brewing Equipment with you.

For micro brewery systems like 200L, 300L or smaller like 100L homebrew equipment, almost 90% of the customers would like the system customized to be transportable/movable considering the system is also intended for demonstration purposes, or just for the convenience of moving and putting after using.

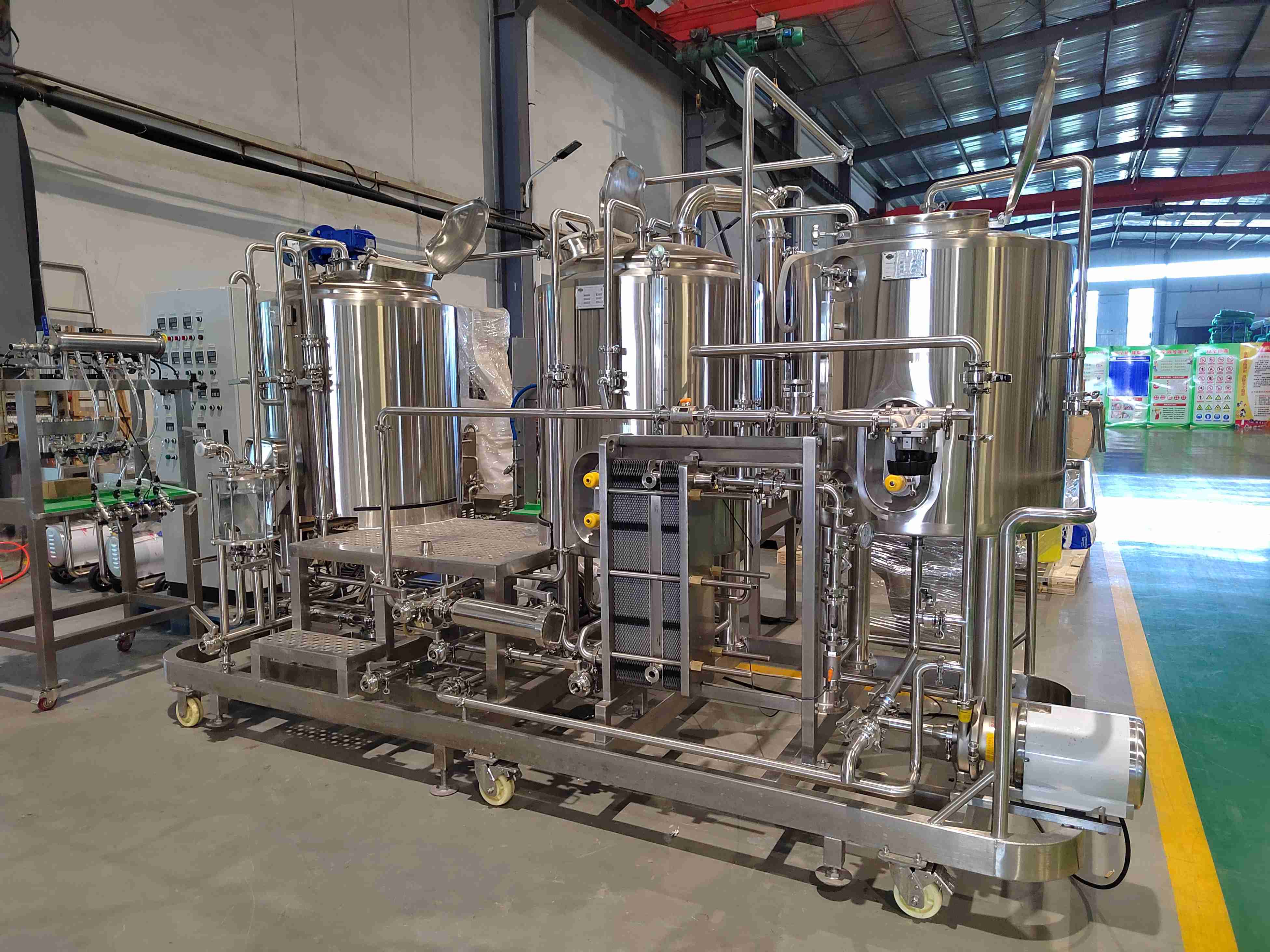

As you may noticed from the above photo, additionally to the wheels, height-adjustable feet could also be installed for setting up and aligning.
This set of 300L brewery equipment uses the electrical elements as heating source, one of advantages of this elements is that it could be connected and detached freely so that the temperature could be controlled on a more flexible way either.

There is also a double batches of HLT included in this system, ready for the days when double batches of beer brewing are expected and also for the purpose of recycling the part of hot water flowed out from the heat exchanger to save your energy.

The whole system mainly includes:
Part 1: Malt Milling Unit
1.1 Malt Miller [100-150kg/hr]
Part 2: 300L Brewhouse
2.1 300L Mash/Lauter Tun+HTL
2.2 300L Kettle/Whirlpool Tun
2.3 600L Hot Liquor Tank
2.4 Non-slip Work Platform
2.5 Sanitary Centrifugal Pump [LYSF]
2.6 Sanitary Piping
2.7 Valves and Fittings
2.8 Manual Water Mixing Station
2.9 Manual Wort Cooling Station
2.10 Pipeline Instrument Sensor
2.11 Glass Manhole (Logo customized, fully strengthened glass, large size easy access to the tank, stainless steel locking handle)
2.12 10L Glass Wort Grant

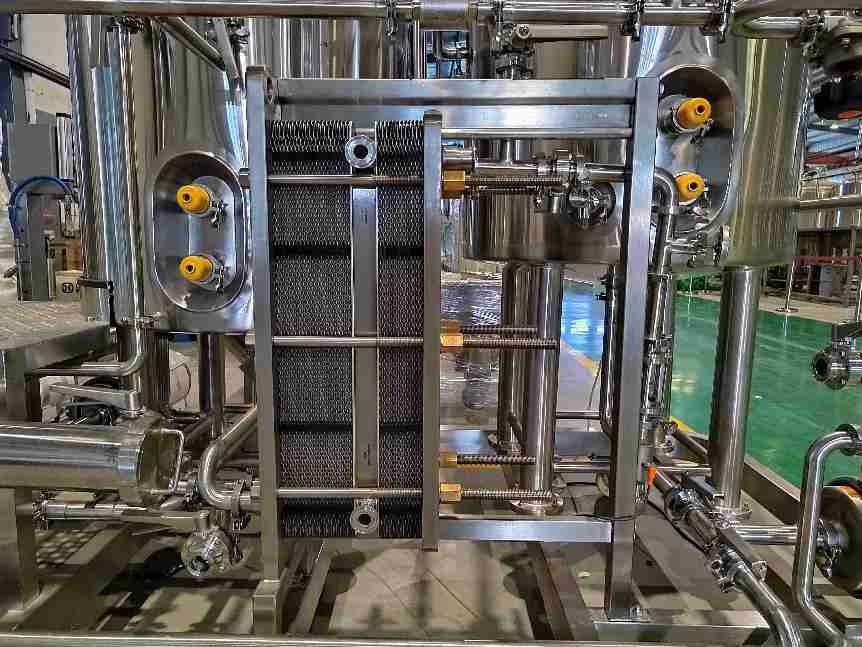

2.13 6M2 Heat Exchanger [304SS NANHUA] (complies with highest sanitary processing standards)
2.14 Pipe Filter
2.15 Wort Aeration Station
2.16 20L Yeast Feeder
Part 3: Fermentation Unit:
3.1 300L Fermentation Tank/Unitank
3.2 [Bunging Valve, Carbonation Stone, Level Indicator] (for special request)
Part 4: Glycol Cooling Unit:
4.1 500L Glycol Water Tank
4.2 3HP Glycol Water Chiller
4.3 Glycol Water Pipeline
Part 5: Electric Control Unit:
5.1 Brewery Instrumental Control Cabinet
Part 6: Portable CIP Cart:
6.1 Portable CIP Pump or Portable CIP Cart

Other configurations and details to be discussed to meet your personal demands and special requests, we shall be honored to support you build your brewery dream in any way we can.

Please feel free to contact me for any interested details!

Cheers!
