Here we’re delighted to introduce you our 500l brewery equipment, occupied a relatively small area and freely-customized configurations, it is rather popular and commonly used among our customers for craft brewery business, taproom, restaurant or brewpubs. If you are looking for some similar size of machine for your beer business, feel free to contact us for more interested information, Cheers!



General Introduction:

Based on general beer brewing procedures of mashing, lautering, boiling and whirlpooling, there are basically these several structures of brewhouse combination available to be selected:

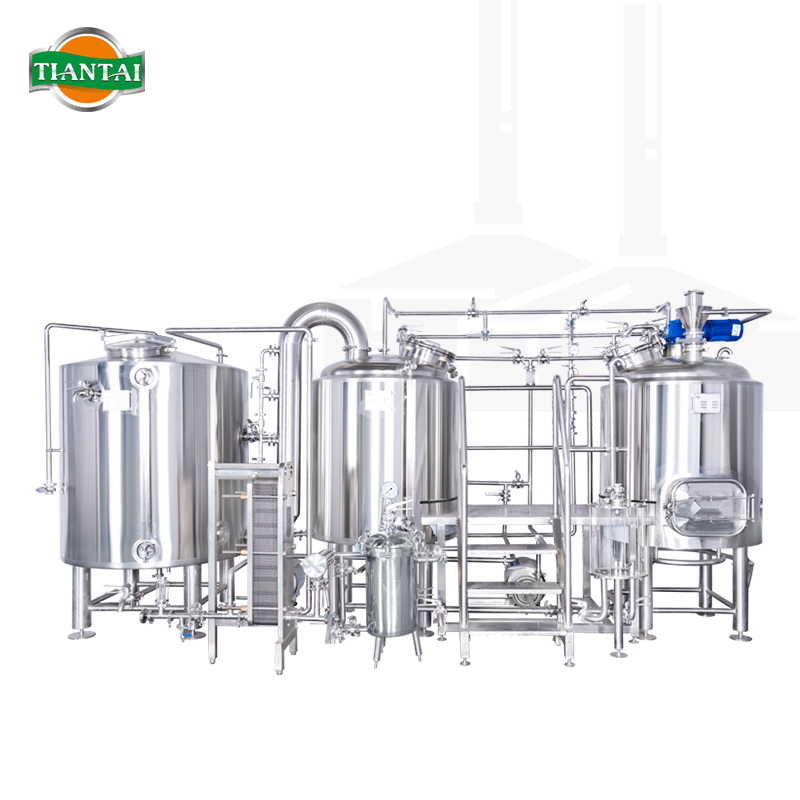

Two-Vessel Brewhouse
Three-Vessel Brewhouse
Combined Three Vessel Brewhouse
For realizing single batch of beer brewing per day with about 8 working hours, the two vessel brewhouse would be the ideal option suggested. Combined by iconic structure of Mash/Lauter Tun, Kettle/Whirlpool Tun and Hot Liquor Tank, there are multiple heating methods are available to be customized including steam, electric and gas fire based on personal requirements. Floor plan design services provided for free, based on provided dimensions or blueprints, the floor plan is okay to be designed to help with configurations confirming and to make sure all machine will well fitted-in by the time of installing.

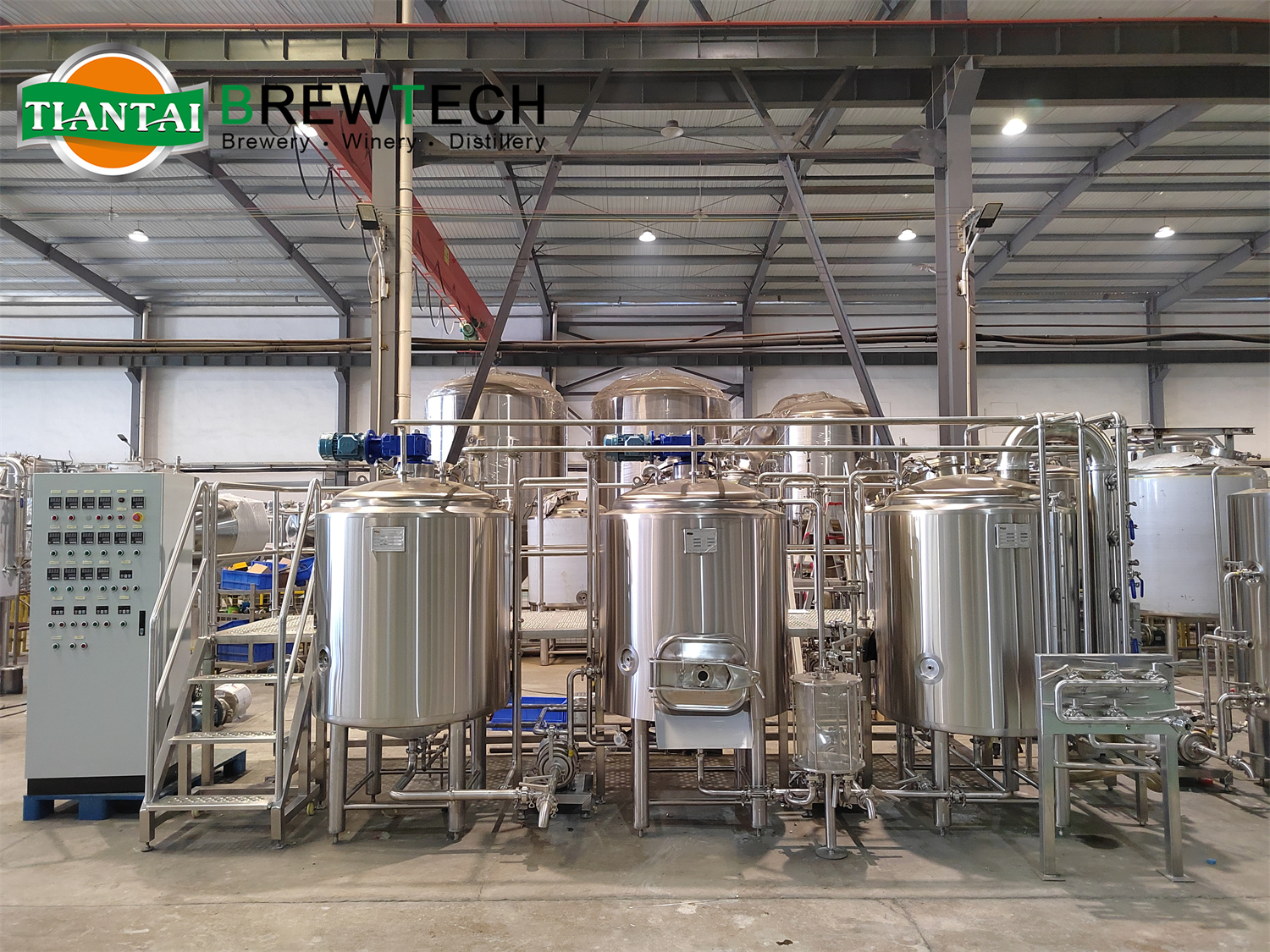

Three-Vessel Brewhouse:
Structure: Mash Tun+Lauter Tun+Kettle/Whirlpool Tun

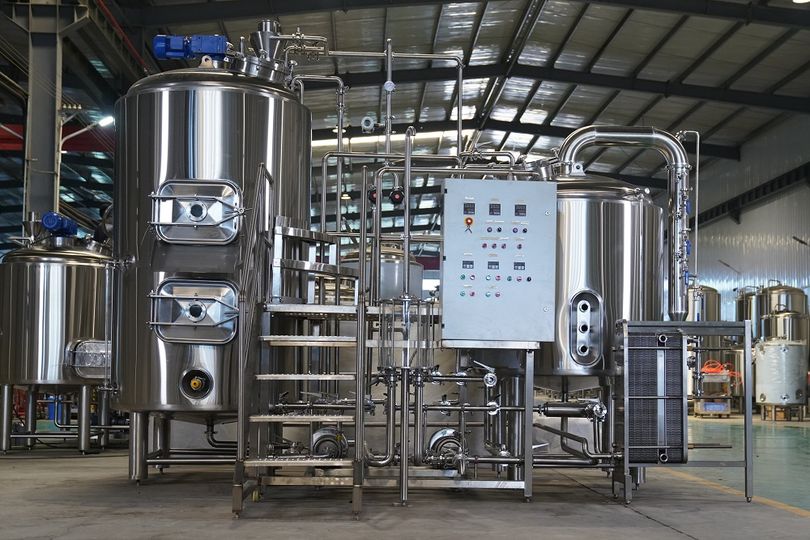

Combined Three Vessel Brewhouse
Structure: Mash/Lauter/HLT+Kettle/Whirlpool Tun

Main configurations included in the standard 2 vessel brewhouse for references:

1. Malt Mill [300-500kg/hr]
2. 500L Brewhouse:
500L Mash/Lauter Tun
500L Kettle/Whirlpool Tun
1000L Hot Liquor Tank
Non-slip Work Platform
Sanitary Centrifugal Pump [LYSF]
Sanitary Piping
Valves and Fittings
Manual Water Mixing Station
Manual Wort Cooling Station
Pipeline Instrument Sensor
Glass Manhole (Logo customized, fully strengthened glass, large size easy access to the tank, stainless steel locking handle)
10L Glass Wort Grant
6M2 Heat Exchanger [304SS NANHUA] (complies with highest sanitary processing standards)
Pipe Filter
Wort Aeration Station
20L Yeast Feeder
3. 500L Fermentation Tank/Unitank
[Bunging Valve, Carbonation Stone, Level Indicator] for options
4. Glycol Cooling Unit:
4.1 1000L Glycol Water Tank
4.2 3HP Glycol Water Chiller
4.3 Glycol Water Pipeline
5. Electric Control Unit:
5.1 Brewery Instrumental Control Cabinet
6. Portable CIP Cart:
6.1 Portable CIP Pump or Portable CIP Cart

Pre&After Sales Services:
Turnkey services provided for all size of brewing project from designing, manufacturing to delivering, installation and maintenance.

Other configurations and more details to be discussed to meet your personal demands and special requests, please feel free to contact us, we shall be honored to support you build your brewery dream in any way we can!
