Here is Sharon from Tiantai Beer Equipment Co., Ltd.
Welcome to visit our brewery equipment website!
Here we’d like to introduce the main configurations included in our 500l beer brewing system with you, if you are looking for similar size of brew system for your business, feel free to contact us for more interested information and details please, Cheers!

For 500l brewery system, the two vessel brewhouse is the most commonly used layout to meet the requirements of single batch of brewing per day at most time, and double batches is also available with extending the working time.
Main Parts Included:
Part 1: Malt Milling Unit

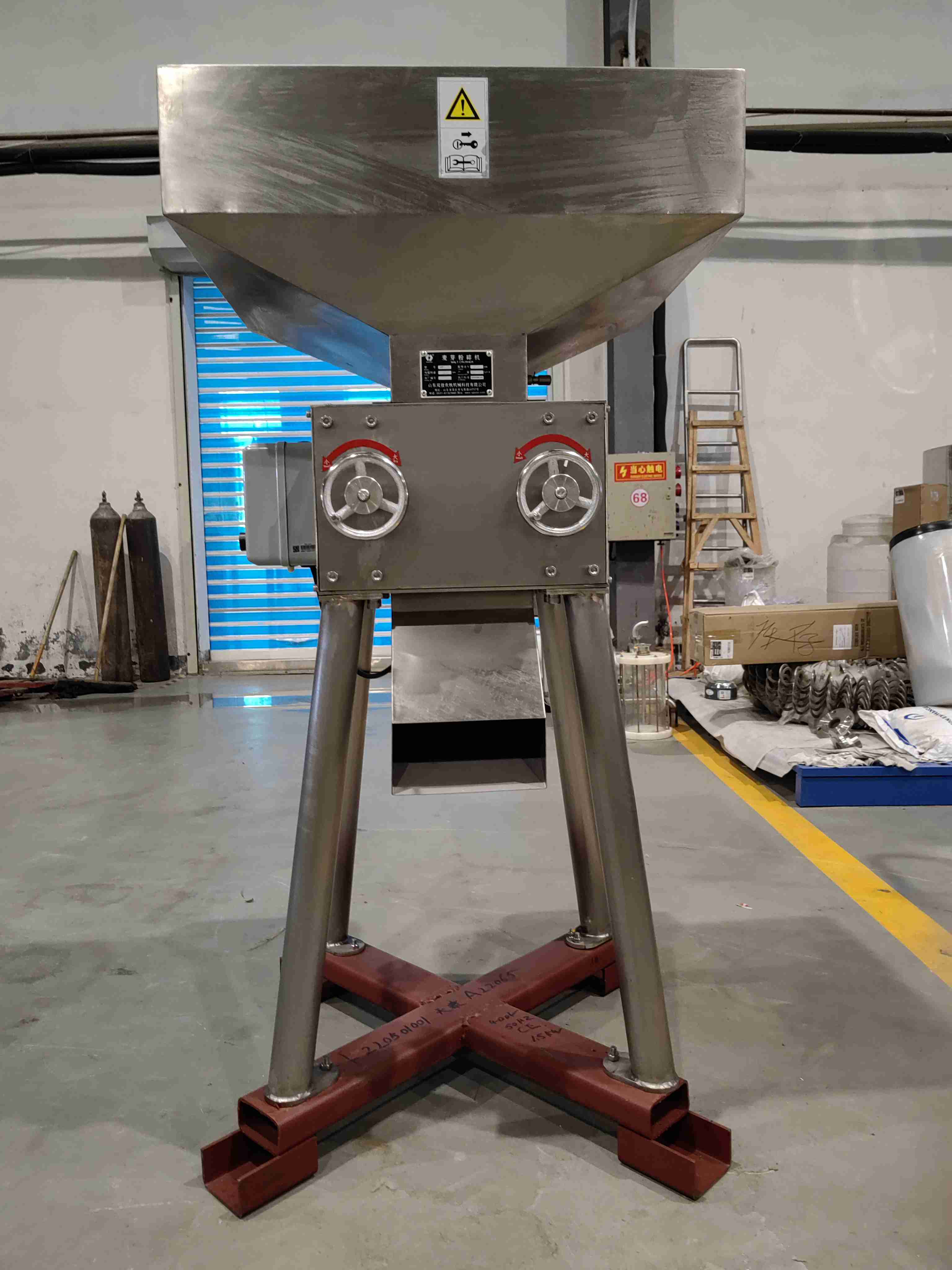

1.1 Malt Miller [300-500kg/hr]

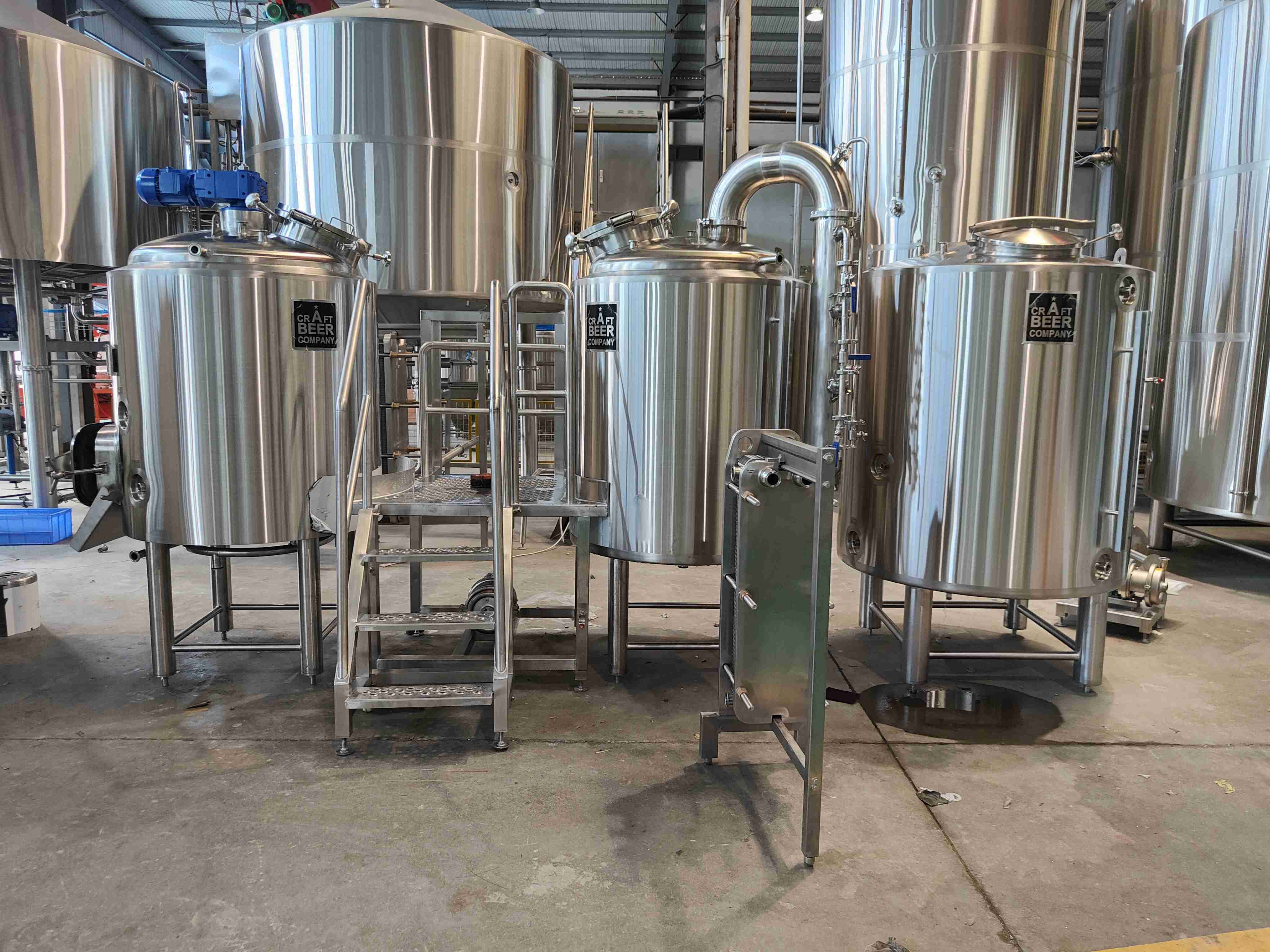

Part 2: 500L Brewhouse
2.1 500L Mash/Lauter Tun
2.2 500L Kettle/Whirlpool Tun
2.3 1000L Hot Liquor Tank
2.4 Non-slip Work Platform
2.5 Sanitary Centrifugal Pump [LYSF]
2.6 Sanitary Piping
2.7 Valves and Fittings
2.8 Manual Water Mixing Station
2.9 Manual Wort Cooling Station
2.10 Pipeline Instrument Sensor
2.11 Glass Manhole (Logo customized, fully strengthened glass, large size easy access to the tank, stainless steel locking handle)
2.12 10L Glass Wort Grant
2.13 6M² Heat Exchanger [304SS NANHUA] (complies with highest sanitary processing standards)
2.14 Pipe Filter
2.15 Wort Aeration Station
2.16 20L Yeast Feeder
Part 3: Fermentation Unit:

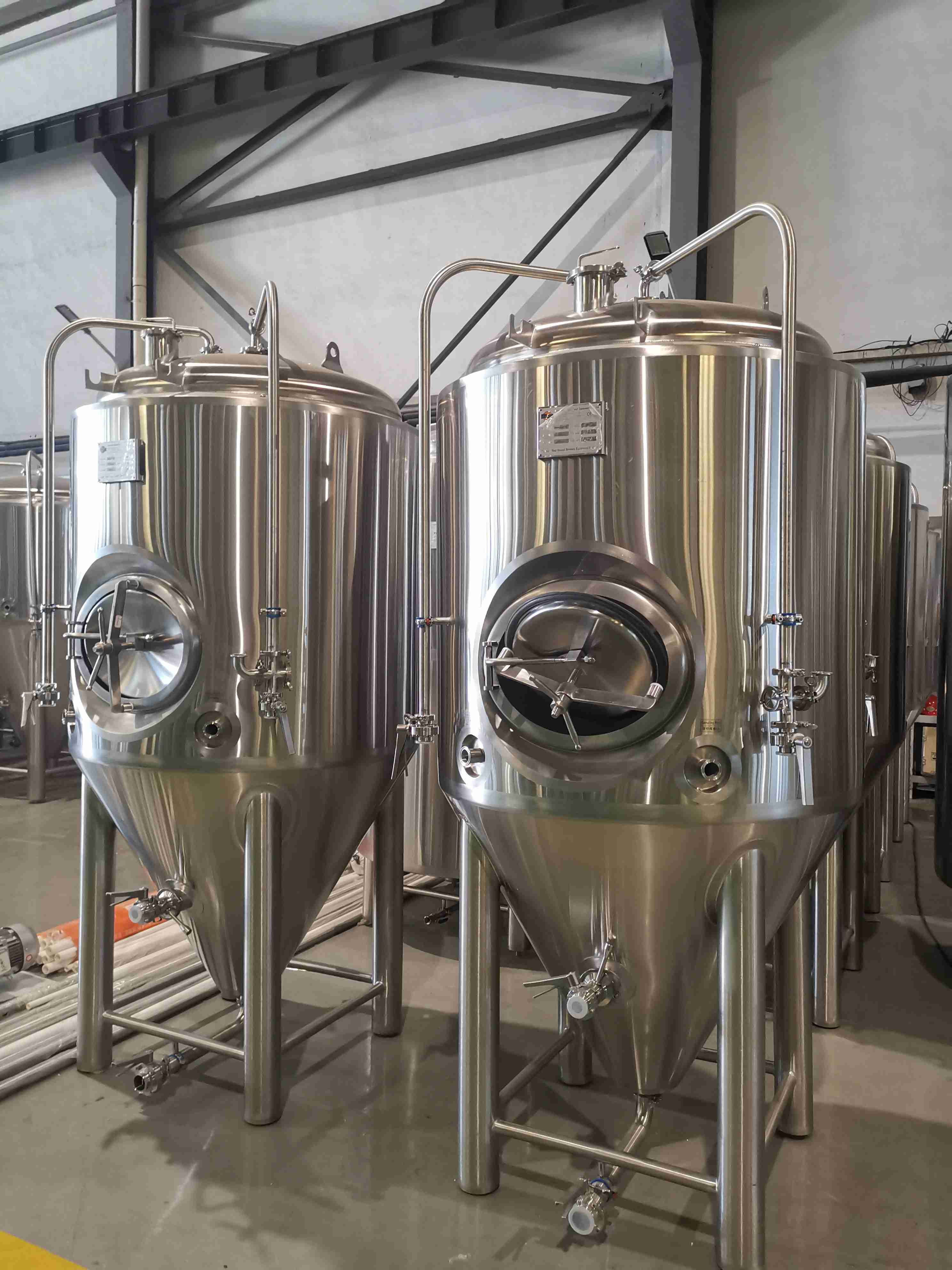

3.1 500L Fermentation Tank/Unitank
3.2 [Bunging Valve, Carbonation Stone, Level Indicator] for options

Part 4: Glycol Cooling Unit:
4.1 1000L Glycol Water Tank
4.2 3HP Glycol Water Chiller
4.3 Glycol Water Pipeline
Part 5: Electric Control Unit:

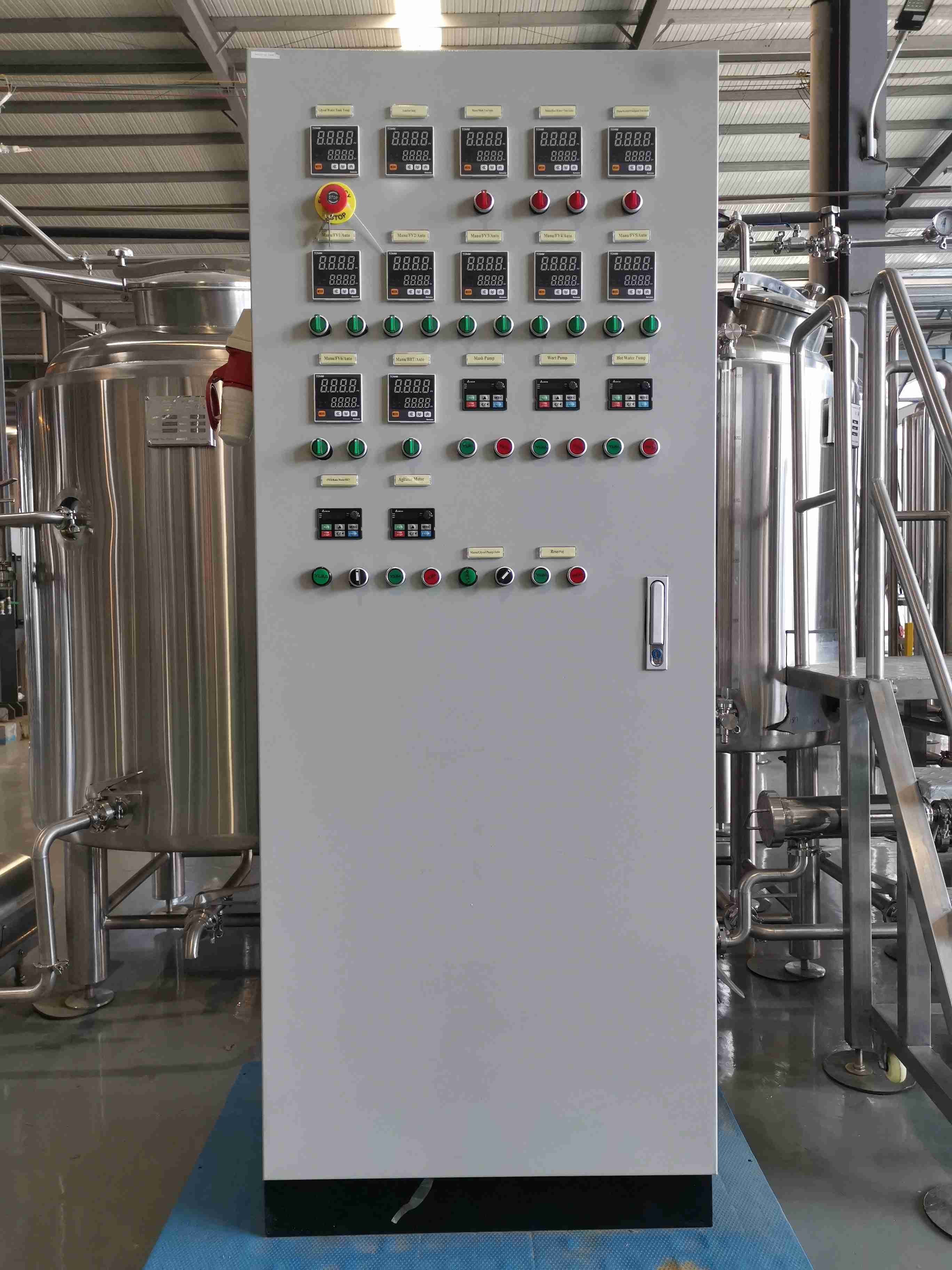

5.1 Brewery Instrumental Control Cabinet

Part 6: Portable CIP Cart:
6.1 Portable CIP Pump or Portable CIP Cart

The 100l CIP cart is rather popular among our customers as it provides great convenience and helps for the cleaning of the brewery.
The specific configurations could always be customized based on personal requirements like the brewhouse combinations, fermenters and brite beer tanks, etc.
Other configurations and more details to be discussed to meet your personal demands and special requests, we shall be honored to support you build your brewery dream in any way we can.

Feel free to contact me anytime for more interested information please!
